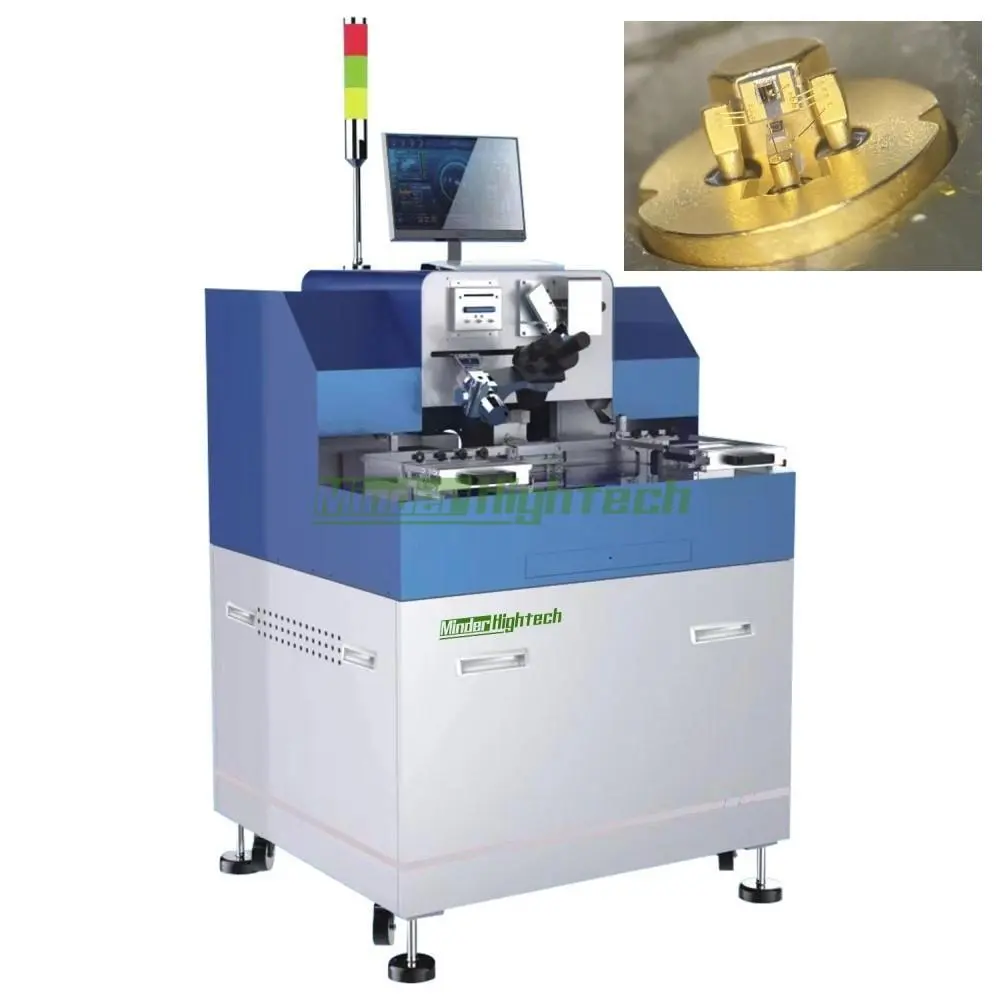

MD-KTO94 automatic TO Laser tube wire bonder
1, The machine is suitable for TO56 laser diode packaging
For TO56 laser diode vertical and side welding, automatic loading and unloading welding equipment.
2. High compatibility
Welding TO56 laser diode, long and short pin compatible. Front side welding.
3. High stability
Bangtou adopts the optical deletion ruler imported from Germany and the most advanced voice coil motor, the welding action is high speed and stable.
4, high processing speed
Welding cycle: 80ms/W
|
Visual system |
|
|
Machine vision lens: |
1.8 times |
|
Stereomicrolens: |
15 times, 30 times |
|
Ring lighting: |
White super bright LED light with adjustable brightness |
|
Working light: |
Maximum power 3W |
|
pelletizing |
|
|
Lighting method: |
Negative electrons spark into balls |
|
Ball burning time: |
0~25.5ms |
|
Bulb burning current: |
0~20mA |
Ultrasonic generator
Ultrasonic power
0 ~ 1.0 W
Welding time:
(1) First welding time: 0~255ms
(2) Second welding time: 0~255ms
Ultrasonic frequency :138KHz
Welding process frequency regulation: automatically capture and track the resonant frequency of the transducer
