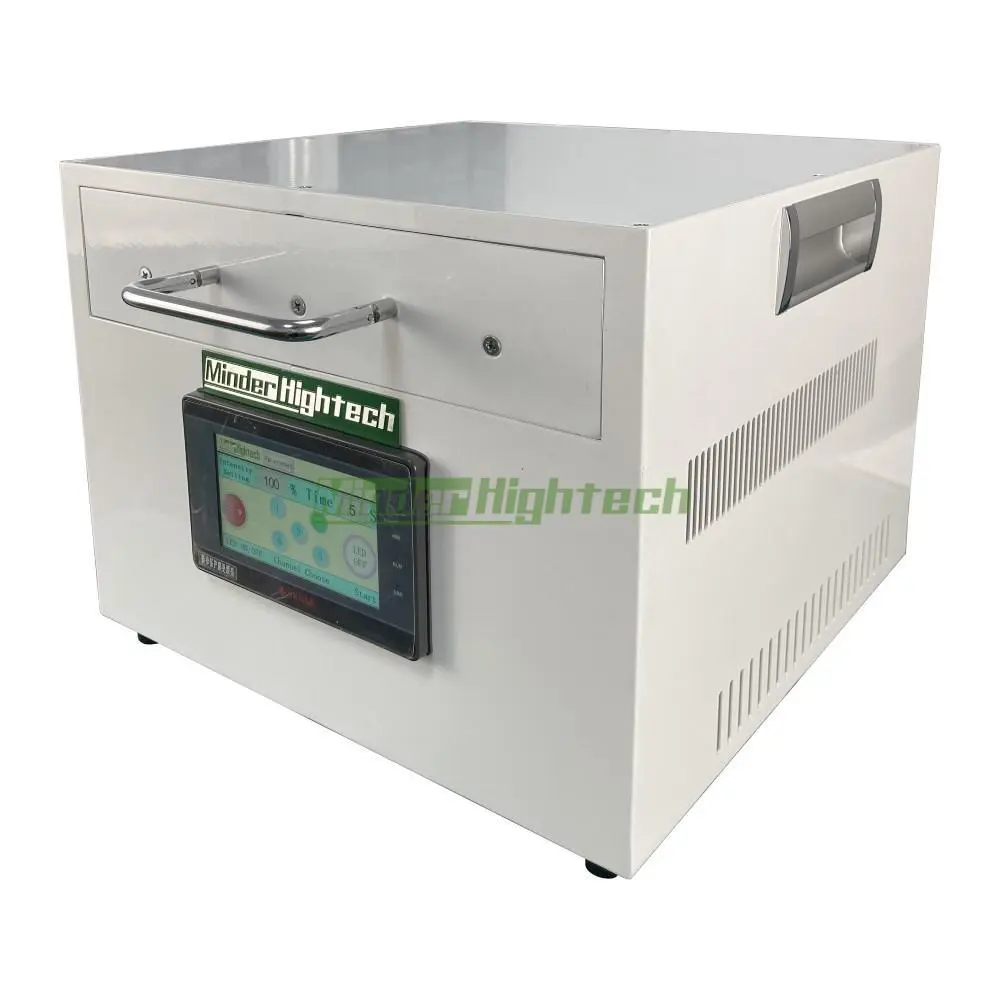

UV Curing Machine

Model	MDHYM80	MDHYM120	MDHYM82	MDHYM122
Maximum size of wafer	6’’&8’’	12”	6’’&8’’	12”
Wafer thickness	150-800μm	150-800μm	150-750μm	150-750μm
Membrane type	Blue membrane&UV membrane
Membrane thickness	0.05-0.2mm
Membrane length	≤100m
Membrane width	270-330mm	330-400mm	270-330mm	330-400mm
Workbench	Anti static Teflon treatment
Heating temperature	Room temperature 150 ℃
Efficiency	80pcs/h	70pcs/h	80pcs/h	70pcs/h
Air supply	0.5Mpa clean dry compressed air
Power supply	AC220V,10A	AC220V,10A	AC220V,16A	AC220V,16A
Overall dimension WDH	360mm860mm560mm	560mm1000mm600mm	600mm960mm500mm	660mm1100mm500mm
Weight	50kg	60kg	80kg	110kg
Functional features	Advanced anti-static roller film Manual film pulling and sticking Manual wafer loading and unloading Circular knife elastic structure, film cutting force is adjustable Reasonable structure and convenient tool change Worktable floating design, height adjustable Automatic winding and recovery of release film It can be customized according to demand		Advanced anti-static roller film Anti electrostatic ion fan Automatic film transfer and coating Film pressure and speed can be adjusted Manual wafer loading and unloading Touch screen operation panel Program control based on PLC It can be customized according to demand
