Product details of the wire bonder

Quick Overview

More customers have shown more interest in the unique design of wire bonder. The quality of the product is in tune with industry set standard and has passed the international certificates. Guangzhou Minder-Hightech Co.,ltd says it will strengthen the sales network in the future.

Product Description

Our wire bonder has the following advantages over similar products.

Product Introduction

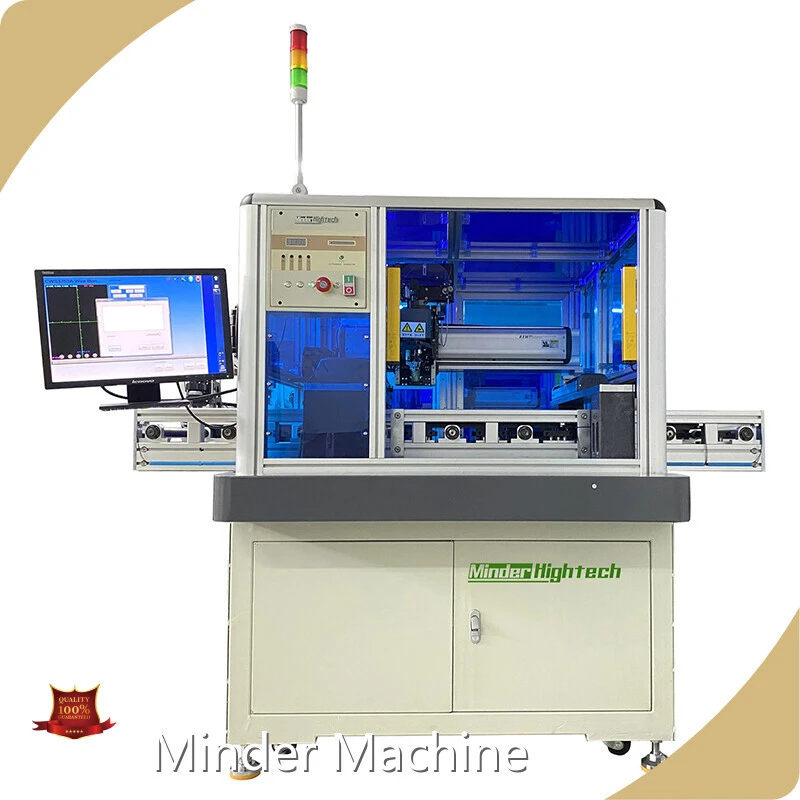

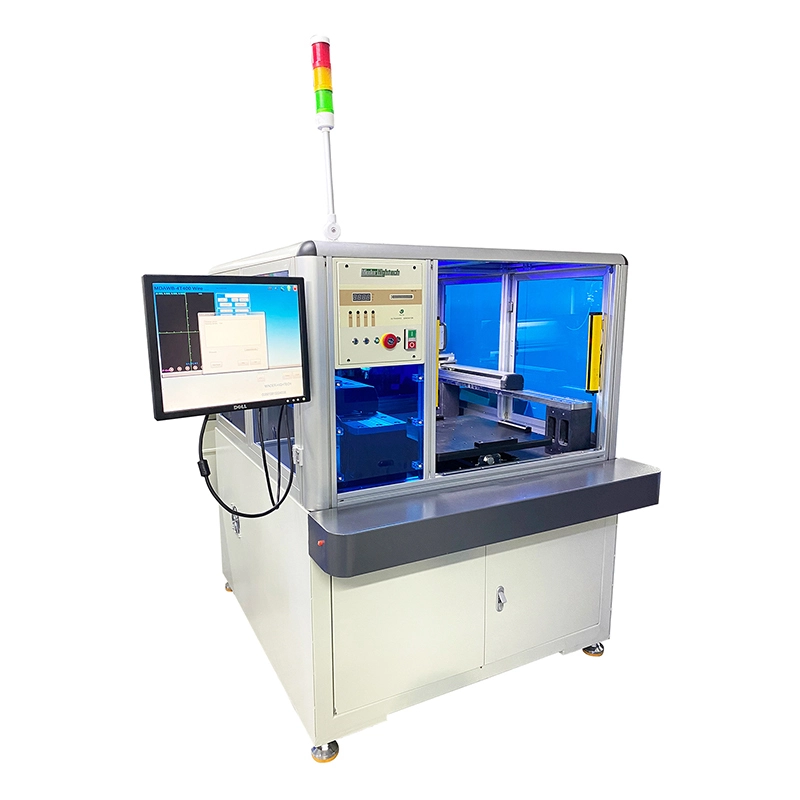

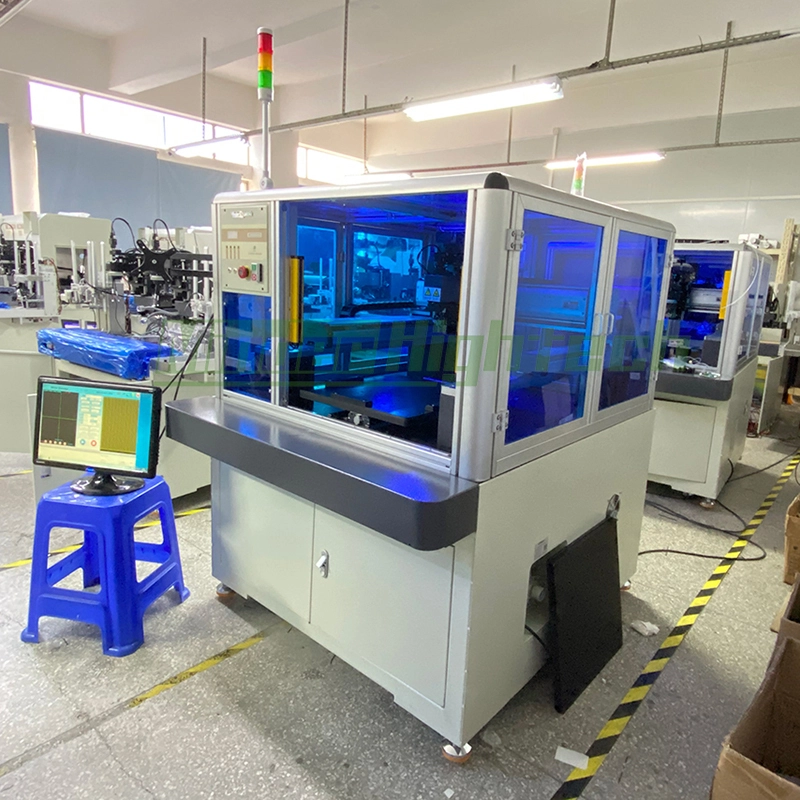

---- AUTOMATIC WIRE BONDERMain application:18650, 26800, 21700lithium battery wire bonding.or other connection

Related Parameters

Power	220v, 50Hz, 800w
Suit for aluminum wire	125-500um (5-20mil)
Ultrasonic
Frequency	60kHz
Power	0-30w. automatic changing between first bonding and second bonding
X axis accuracy	0.02mm
Time	10-500ms. (multi channel.)
Bonding pressure	50-1200g(multi channel)
Bonding speed	2s/wire depending on other situation.
Working area
XY	400*400mm(can customize as required)
Z	50mm
C	+-90degree
Dimension	1500mm1800mm1650mm
Weight	~800KG

Features

First using rotary bonding head. Digital & automatic frequency tracking ultrasonic system. Digital pressure adjustment system. With advance pattern recognizing system. Full closed-loop motion control system. With like bad bondingor wire feeding block etc. full error alarm, ensure bonding quality. Optional automatic bond tester. Manual upload, automatic recognition and bonding,manual download.

product details

D1 (4)

D1 (2)

D1 (1)
