Minder Machine Wire Bonder
Product details of the wire bonder
Product Information
Guangzhou Minder-Hightech Co.,ltd is not only a pioneer in technology, but also forgoer in developing new wire bonder. It is created according to strict performance standards. It is tested against other comparable products on the market and goes through real-world stimulation before going to the market. Guangzhou Minder-Hightech Co.,ltd makes efforts to set an example as a reliable enterprise.
Product Introduction

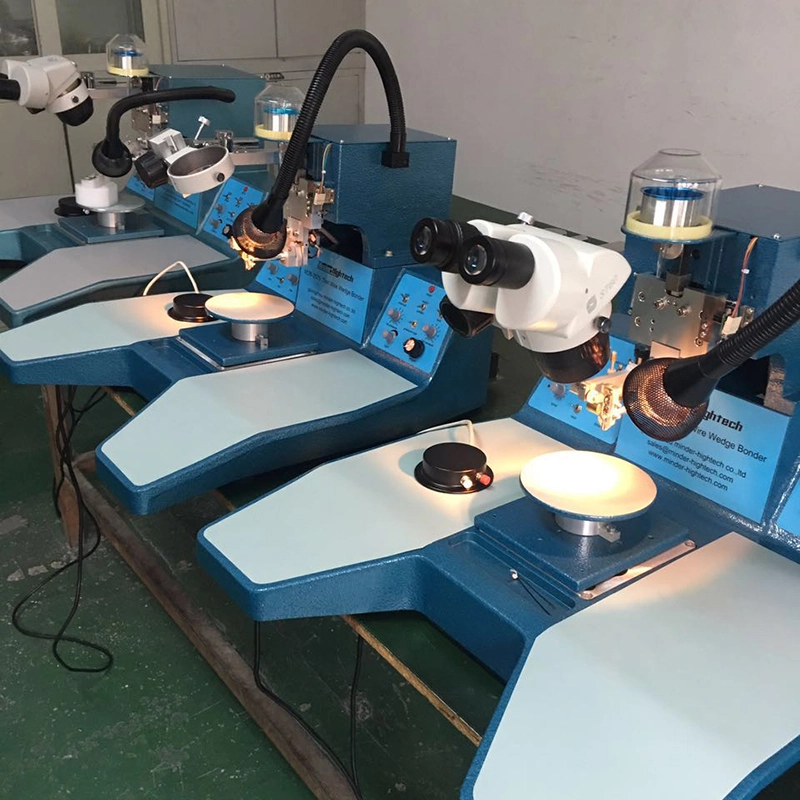

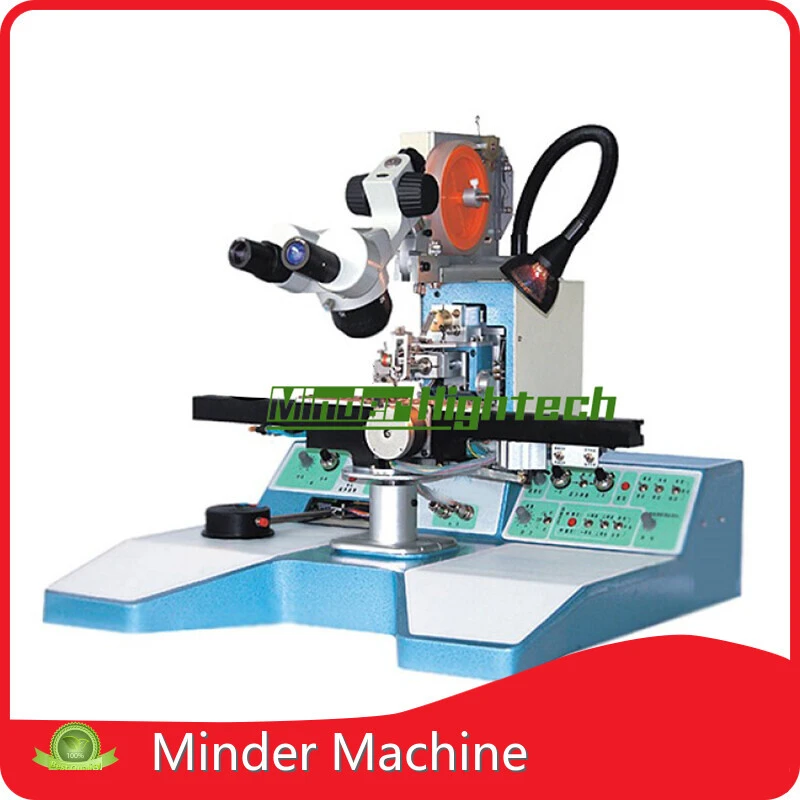

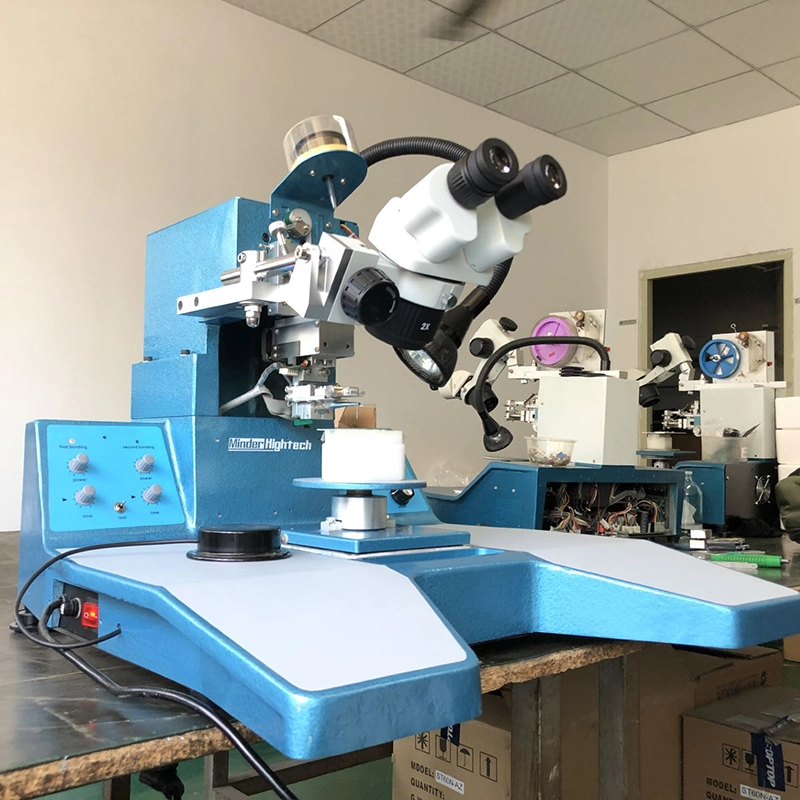

--- Heavy wire bonderHere we provide 7 types of most competitive wire bonder, 4 Types of manual wire bonder, and 3 types of automatic wire bonder. The most competitive 4 types: thin aluminum wire wedge bonder MDB-2575(25-75um aluminum wire);Wire wedge bonder MDB-25125(25-125um aluminum wire); heavy aluminum wire wedge bonder MDB-7550(75-500um aluminum wire);gold wire ball bonder MDBB-1750(17-50um gold wire). they are very popular for small quantity production, school, institution, research department.
Related Parameters
|
Electric Requiement |
220Vac±10％, 50Hz, Be Sure Connected To Ground |
|
Aluminium Wire Diameter |
75～500μm (3～20mil) |
|
Ultrasonic Power |
0－30W, Two Channel.Can Be Set Separately Of The Two Point |
|
Bond Time |
10－500ms,Two Channel |
|
Bond Force: |
30－1200g, Two Channel |
|
Motorized Y |
0－18mm |
|
Microscope Rate |
7.5 And 15 |
|
Working Area |
Φ25mm |
|
Light |
Adjustable Brightness |
|
Size |
620×610×560mm |
|
Weight |
~40kg |
Features
And the 3 automatic: automatic thin aluminum wire bonder MD-Etech1850(18-50um aluminum wire); automatic ball bonder MD-S800(15-50um Au or alloy wire); automatic heavy wire bonder MD-CWX-3710(125-500um Aluminum wire).
ApplicationS
High power dynatron/FET/SCR, Power module, IGBT, High power Fast recovery diode, Schottky transistor, Lead attachment, wire bonding, TO-3, TO-3P, TO-3PF, TO-3PN, TO-3PL, TO-220F, TO-126, TO-12F, TO-66, TO-251, TO-202 etc.
Company Advantage
• The city where Minder Machine is located has high humanistic quality and good economic conditions. It has great traffic routes, which is good for travel and easy for goods delivery.
• Minder Machine receives trust and appreciation from consumers for honest business, excellent quality and considerate service.
• Minder Machine's industrial machinery are deeply trusted by customers. They occupy a large market share in China and are exported to Europe, America, Southeast Asia, and other countries and regions.
Minder Machine is a professional pharmaceutical company. industrial machinery are good and affordable with multiple types. If you have any needs, please contact us!
