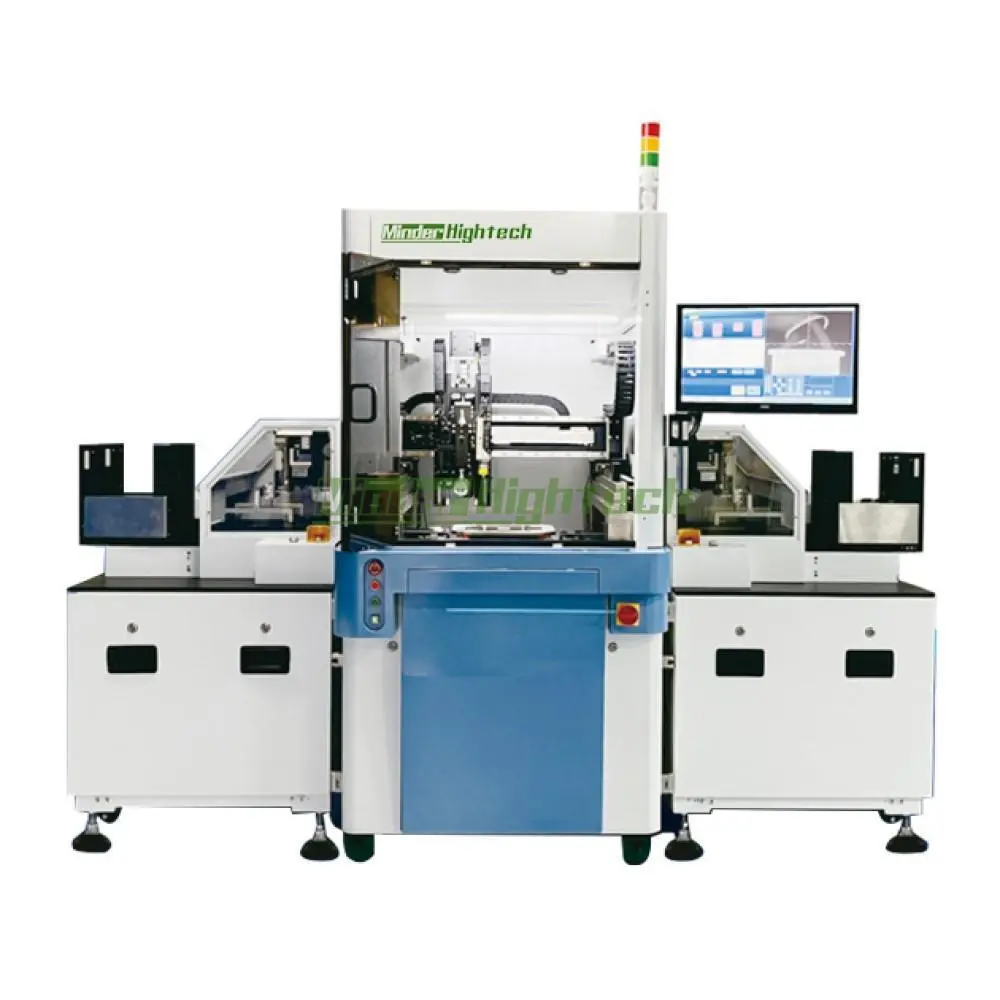

MDRB-UW2030 IBGT Terminal Ultrasonic Welder IGBT/SiC/IPM module terminal welding
Feature
1.Full process monitoring of pressure, energy, time, etc. to ensure welding quality
2.Automatic loading and unloading/automatic alignment/automatic welding
3.Integrated product cleaning function
4.Supports multi angle welding from 0 to 360 °
5.Child and mother welding head design, convenient replacement of welding heads, and lower cost
6.Fast delivery and excellent service
Specification
|
Welding pressure |
50~1000N |
|
Welding pressure accuracy |
±3N |
|
Single point welding time (3 * 2.3 * 1mm) |
<0.3S |
|
Solder joint thrust (3 * 2.3 * 1mm) |
>90kgf |
|
Welding depth control |
0.01mm |
|
Substrate feeding time |
≤10s |
|
Ultrasonic frequency |
20KHz |
|
Ultrasonic power |
4000W |
|
Ultrasonic amplitude |
50%~100% |
|
Weldable material thickness |
0.3 ~2mm |
|
Solderable material area |
1~30mm2 |
|
Welding range |
200*300*60mm |
|
positioning accuracy |
+0.01mm |
|
Platform rotation angle fine leather |
±1° |
