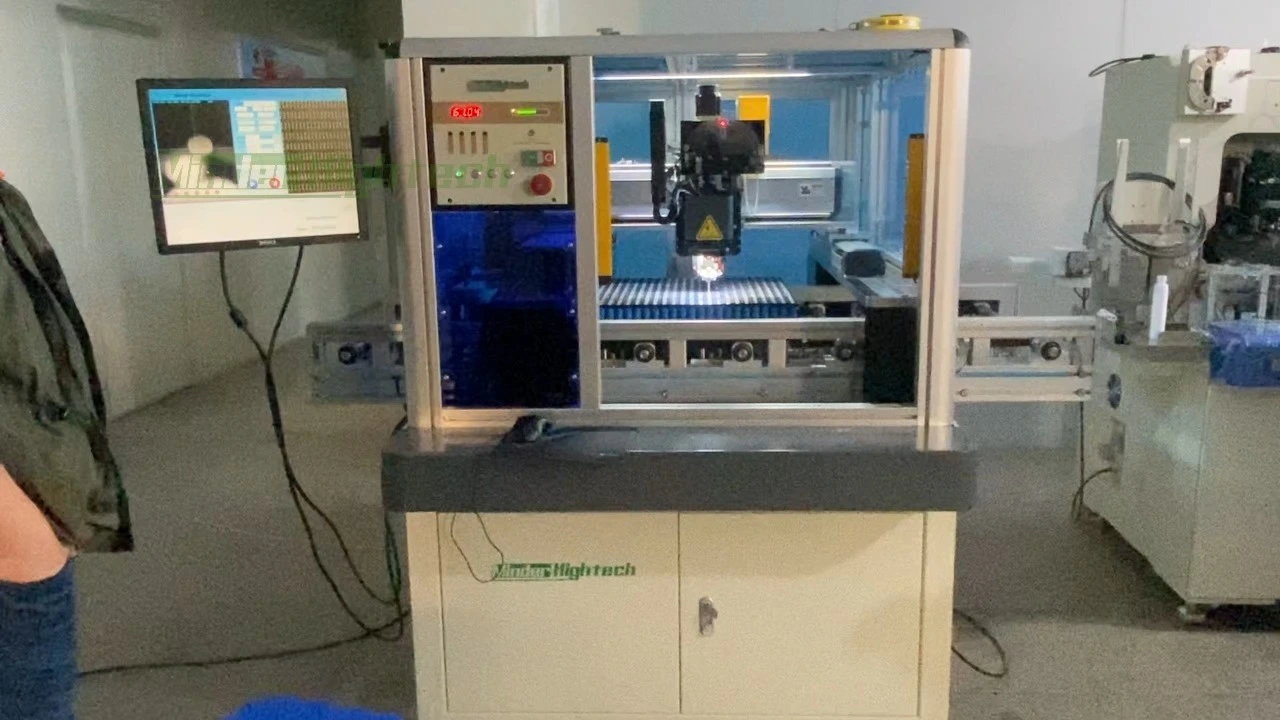

MDAWB-4NL400 Automatic Wire Bonder
https://www.youtube.com/embed/6PZBt8LYgo4
Main application:
18650,26800,21700 battery cell
lithium battery wire bonding.or other connection
Advantage:
1,First using rotary bonding head.
2,Digital & automatic frequency tracking ultrasonic system.
3,Digital pressure adjustment system.
4,With advance pattern recognizing system.
5,Full closed-loop motion control system.
6,With like bad bondingor wire feeding block etc.
full error alarm, ensure bonding quality.
7,Optional automatic bond tester.
8,Manual upload, automatic recognition and bonding,manual download.
Specification:
Power: 220v,50Hz,800w.
Suit for aluminum wire:125-500um(5-20mil)
Ultrasonic: frequency 60kHz.
Power: 0-30w. automatic changing between first bonding and second bonding.
X axis accuracy: 0.02mm.
Time:10-500ms. (multi channel.)
Bonding pressure:50-1200g(multi channel)
Bonding speed: 2s/wire.depending on other situation.
Working area: XY:400*800mm(with Rail transportation from left to right, can connect to production line).
Z:50mm.
C:+-90degree.
Dimension:1500mm*2200mm*1900mm
Weight:~1220KG
