Automatic Wire Bonder for Autosensor

Main application:

auto parts/auto sensors/IGBTs/ABS/ECU/oxygen sensor

Advantage:

1,First using rotary bonding head.

2,Digital & automatic frequency tracking ultrasonic system.

3,Digital pressure adjustment system.

4,With advance  pattern recognizing system(PRS).

5,Full closed-loop motion control system.

6,With like bad bonding or wire feeding block etc. full error alarm, ensure bonding quality.

7,Optional automatic bond tester.

8,Manual upload, automatic recognition and bonding,manual download.

Specification:

Power:220v,50Hz,800w.

Suit for aluminum wire:125-500um(5-20mil)

Ultrasonic:

frequency:60kHz.

Power:0-30w. automatic changing between first bonding and second bonding.

X axis accuracy:0.02mm.

Time:10-500ms. (multi channel.)

Bonding pressure:50-1200g(multi channel)

Bonding speed:1.5s/wire.depending on other situation.

Working area:

XY:200*250mm(can customize as required).

Z:50mm.

C:+-90degree.

Dimension:810mm*620mm558mm

Weight:~350KG

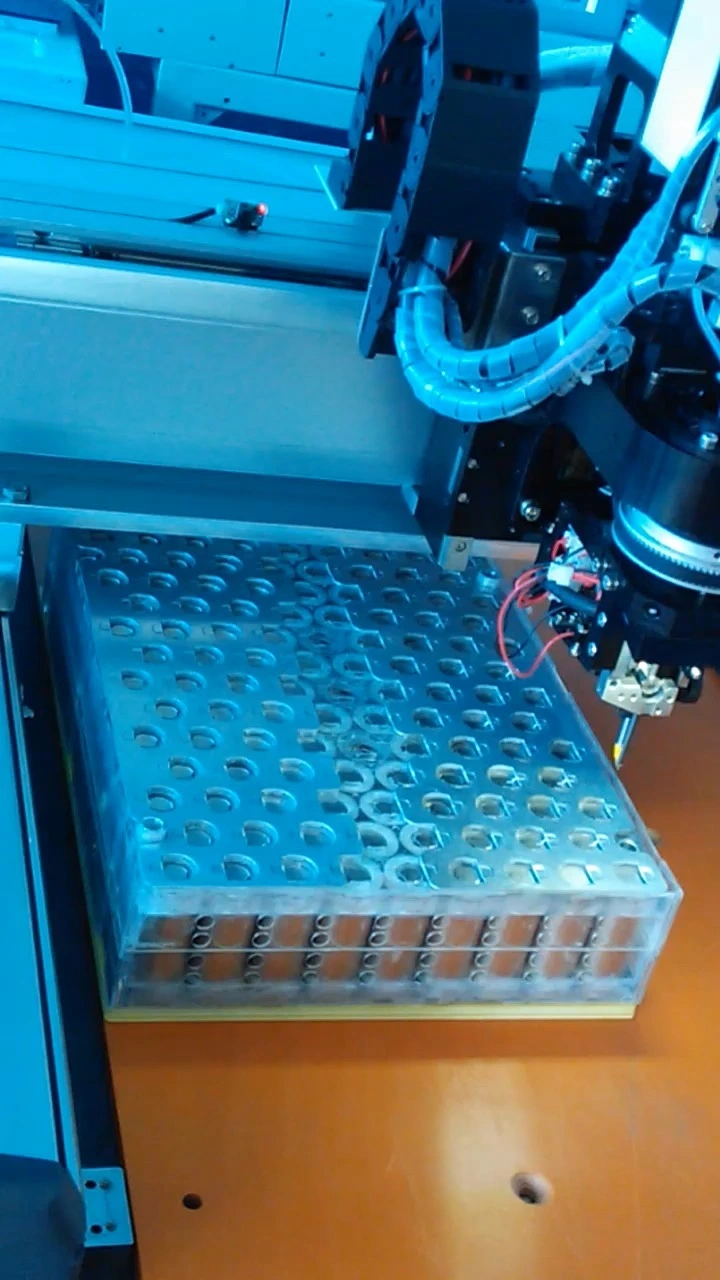

Part of sample and jigs:
