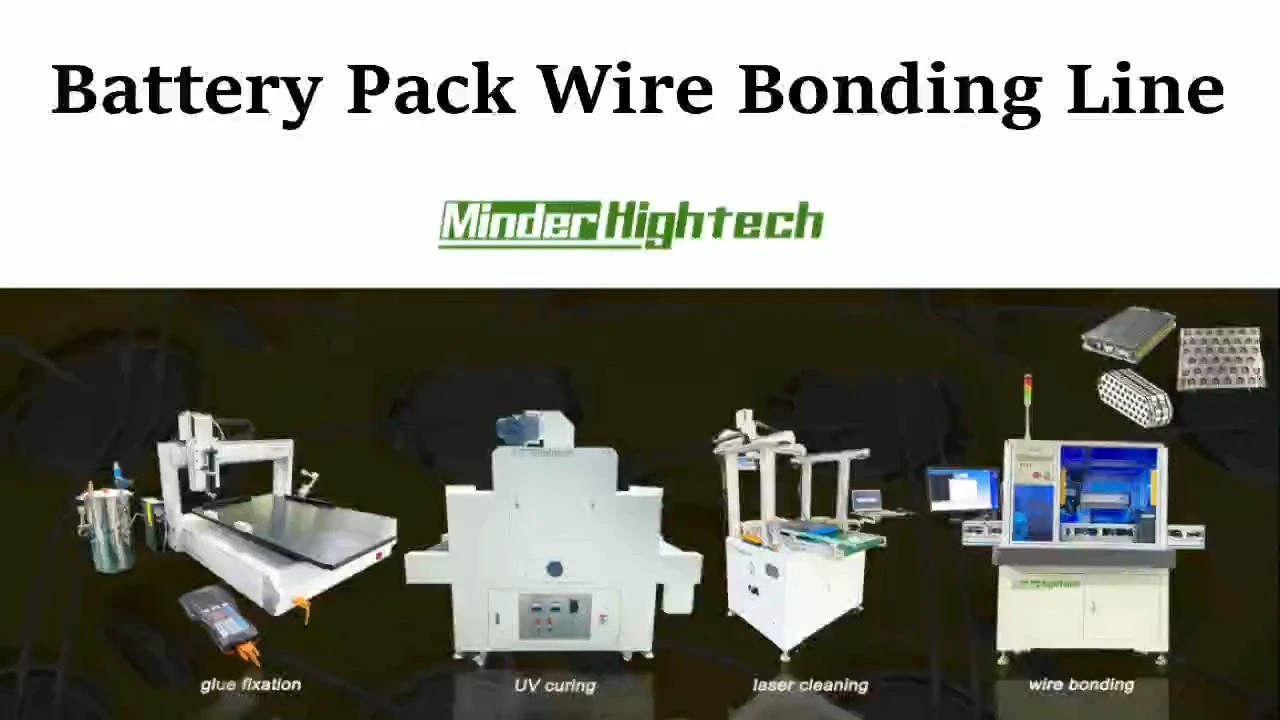

Automatic Wire Bonder

Main Application:

18650,26800,21700

lithium battery wire bonding.or other connection

Advantage:

1,First using rotary bonding head.

2,Digital & automatic frequency tracking ultrasonic system.

3,Digital pressure adjustment system.

4,With advance pattern recognizing system.

5,Full closed-loop motion control system.

6,With like bad bondingor wire feeding block etc.

full error alarm, ensure bonding quality.

7,Optional automatic bond tester.

8,Manual upload, automatic recognition and bonding,manual download.

Specification:

Power:220v,50Hz,800w.

Suit for aluminum wire:125-500um(5-20mil)

Ultrasonic:

frequency:60kHz.

Power:0-30w. automatic changing between first bonding and second bonding.

X axis accuracy:0.02mm.

Time:10-500ms. (multi channel.)

Bonding pressure:50-1200g(multi channel)

Bonding speed:2s/wire.depending on other situation.

Working area:

XY:400*400mm(can customize as required).

Z:50mm.

C:+-90degree.

Dimension:1500mm*1800mm*1650mm

Weight:~800KG
