Seires air plasma surface treatment machine 1

Seires air plasma surface treatment machine 2

Seires air plasma surface treatment machine 3

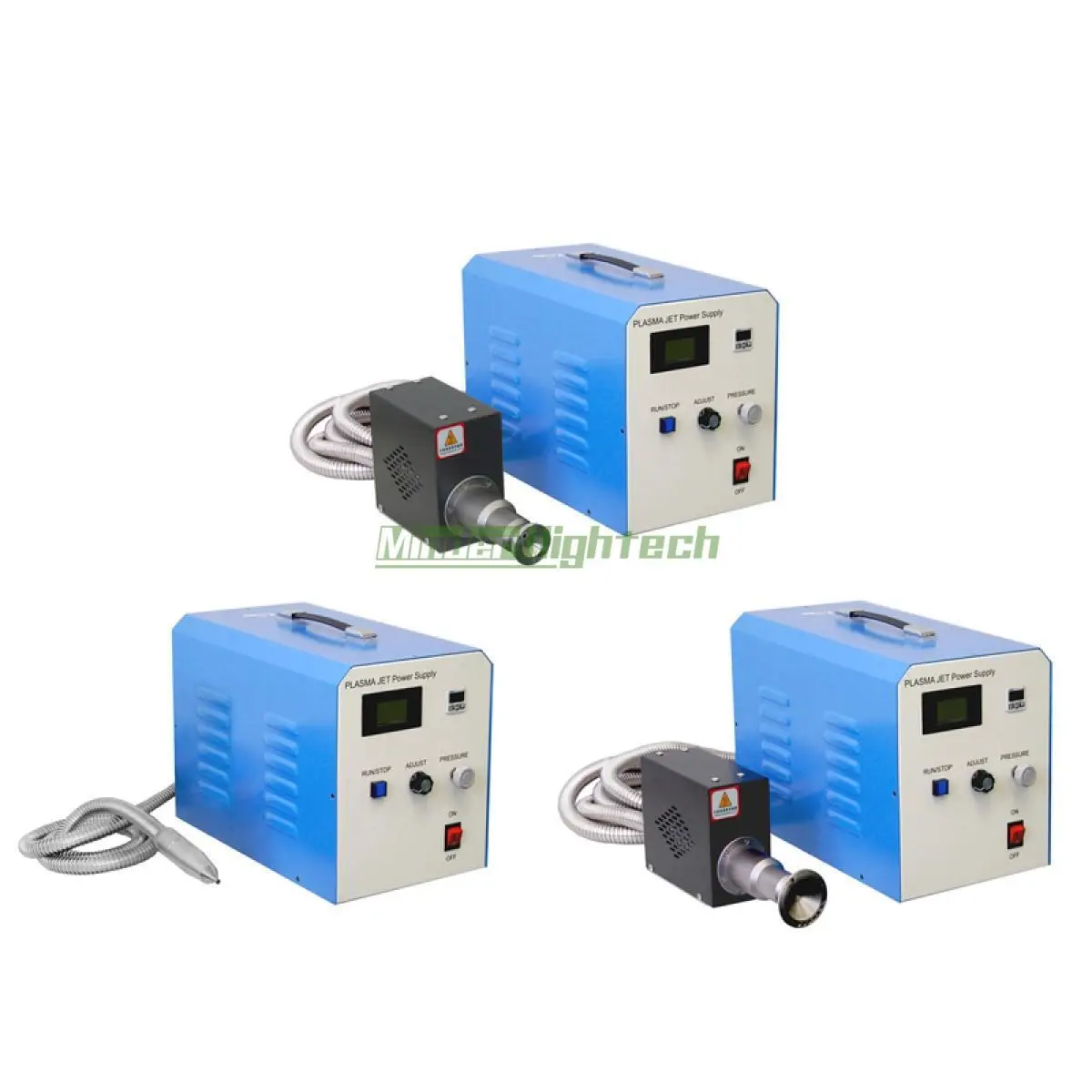

Seires air plasma surface treatment machine

	JBL-WH	JBL-BE	JBL-BK
Item No#	AP-WH+D5/50/80	AP-BE+D5/50/80	AP-BK+D5/50/80
Processing Width	5mm / 50mm / 80mm	5mm / 50mm / 80mm	5mm / 50mm / 80mm
Input Voltage	AC220V/50Hz	AC220V/50Hz	AC220V/50Hz
Input Voltage	220V	220V	220V
Power Output	500W for 5mm	500W for 5mm	500W for 5mm
Frequency	20-50Khz	20-50Khz	20-50Khz
Air Pressure	4kg/0.4MPa	4kg/0.4MPa	4kg/0.4MPa
Gas Used	Air / N2	Air / N2	Air / N2
Cable Length	2m	2m	2m
Internal control mode	Digital control	Digital control	Digital control
External control mode	Analog control, on-off remote control	Analog control, on-off remote control	Analog control, on-off remote control
主机箱尺寸(mm) L×W×H	300400200mm	240390280mm	140370420mm
Weight	machine： 10.8kg	machine： 13.5kg	machine： 11.3kg
	4mm nozzle+3m cable： 0.8kg	4mm nozzle+3m cable： 0.8kg	4mm nozzle+3m cable： 0.8kg
	50mm nozzle+3m线： 4.2kg	50mm nozzle+3m cable： 4.2kg	50mm nozzle+3m cable： 4.2kg
	80mm nozzle+3m线： 4.2kg	80mm nozzle+3m cable： 4.2kg	80mm nozzle+3m cable： 4.2kg
Warranty	1 year	1 year	1 year
