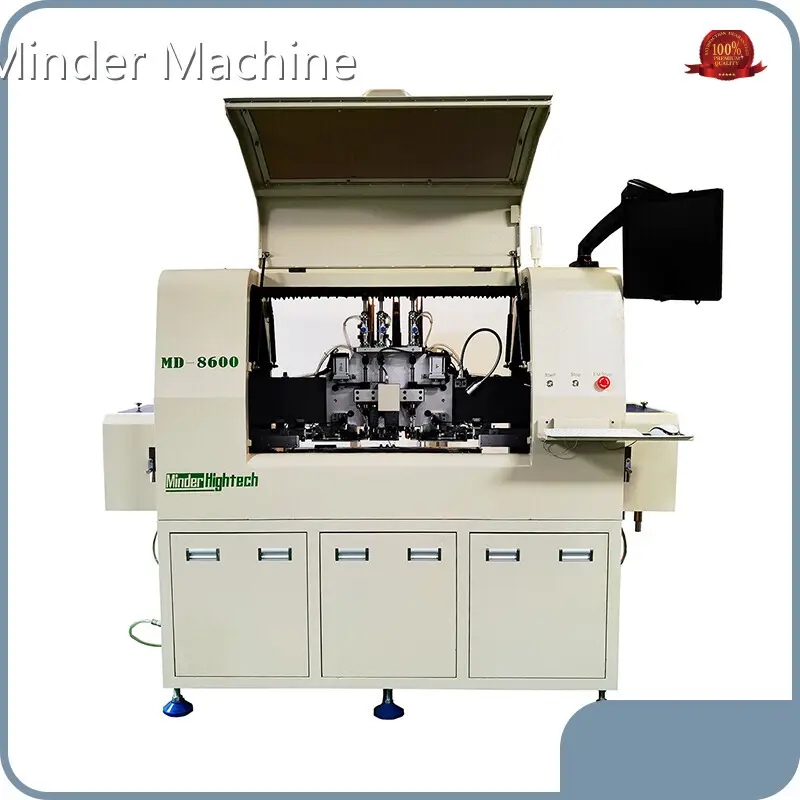

Product details of the terminal insertion machine

Product Introduction

Minder Machine terminal insertion machine is manufactured according to the international advanced production practice - lean production and by use of internationally-sourced high-quality materials. The highest possible quality and consistency of this product are guaranteed through the continuous monitoring of all processes, the strict quality management system, a final quality check, etc. Because of having a lot of merits, it is for sure that the product will have a bright market application future.

Product Introduction

Operation system: production data, management data, device parameters, editing program, all I/O signal diagnosis in Windows environment can be completed on the host, the interface is user-friendly, the device profile is efficient, and the operation is simple. Visual System: The industrial-specific high-definition camera and the self-developed vision correction software form a vision system. The deviation between the PCB hole position and the programmed input coordinates can be quickly and automatically calibrated to match all the coordinates with the actual PCB hole position, ensuring the plug-in accuracy and greatly improving the programming efficiency. Plug in speed: 0.55 seconds / piece, equipped with Panasonic AC servo drive, high speed, low noise, smooth motion Missing parts detection: When the missing part is inserted, the missing part detection can be realized and a supplementary insertion function can be provided.

Related Parameters

Components	Terminal,maximum size 10mm widh22mm high	Feeding system	Vibrating plate, feeder
Plugin speed	0.55s/Piece	Motion accuracy	0.001/pulse
Loading and unloading PCB time	3s	Motion system	Panasonic servo controller, motor
Component packaging	Bulk	Programming function	Online visual programmingVisual correctionEasy EXCEL process
Loadable PCB size	Maximum 380280mm; Minimum 5050mm (Customizable)	Data input	USB interface importManual entry
Number of plug-in header	1-4, can be used for connectors of different specifications.	communication interface	RS232C
Terminal thickness	≥0.6mm≤1.2mm	Power supply	220V/AC50/60Hz,2KVA
PCB board requirements	Positioning hole The aperture is larger than the end of the component.	Air pressure	5-6kg/cm2
Insertion mode	Can be set 0、±90°	Noise	≤75db
Distance between components	2mm	Ambient temperature	10℃-30℃
Component direction detection	Bottom mold detecting element foot	Ambient humidity	30%-70%
Terminal vertical error	≤0.8	Air consumption	0.63m3/min
Control System	Independent research and development control system Industrial computer + motion control	Dimension	195012001530mm
Display system	17-inch color LCD	Weight	1500kg

Important Parts Brand

Servo motor adopts Japanese Panasonic brand Sending board, feeder system motor adopts Oriental brand Pneumatic components adopt Taiwan Airtic brand The lead screw adopts the Japanese THK brand Camera system uses CGimagetech brand (5 million pixels) Photoelectric sensor adopts SUNX brand of Japan The main parts are made of Japanese mold steel
