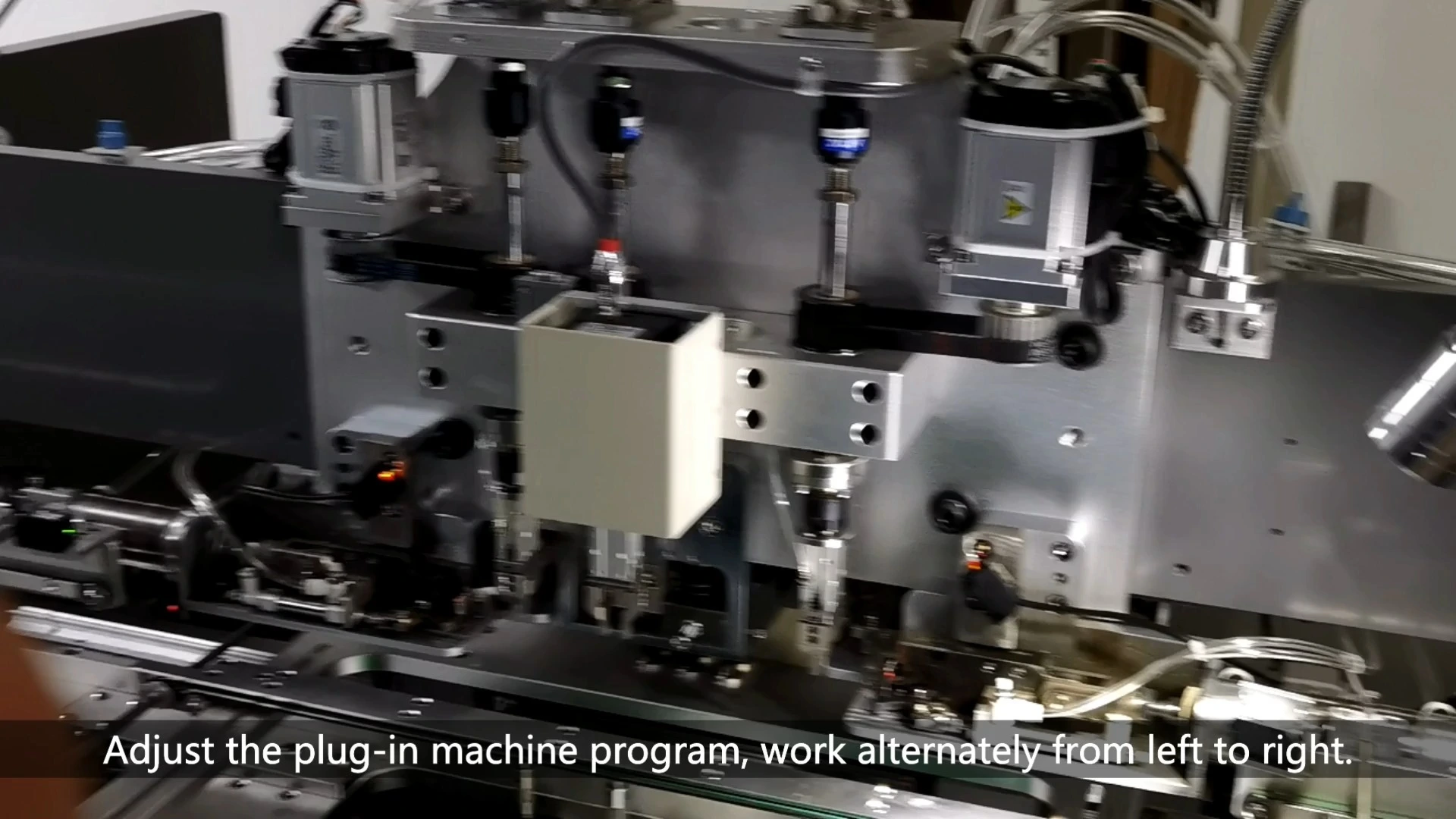

MD8100 Multifunctional PLUG-IN machine ( Terminal Insertion Machine )

Introduction:

The gantry multi-function insertion(plug-in) machine automatically inserts various specifications of special-shaped electronic components on the printed circuit board (PCB) according to the set program according to different products. It has the function of fixing and detecting the angle to achieve high speed, high precision and high stability. Instrumentation results.

Operation system:

production data, management data, device parameters, editing program, all I/O signal diagnosis in Windows environment can be completed on the host, the interface is user-friendly, the device profile is efficient, and the operation is simple.

Visual System:

The industrial-specific high-definition camera and the self-developed vision correction software form a vision system. The deviation between the PCB hole position and the programmed input coordinates can be quickly and automatically calibrated to match all the coordinates with the actual PCB hole position, ensuring the plug-in accuracy and greatly improving the programming efficiency.

Plug in speed:

0.8 seconds / piece, equipped with Panasonic AC servo drive, high speed, low noise, smooth motion

Missing parts detection:When the missing part is inserted, the missing part detection can be realized and a supplementary insertion function can be provided.

Important Parts Brand:

01.Servo motor adopts Japanese Panasonic brand

02.Sending board, feeder system motor adopts Oriental brand

03.Pneumatic components adopt Taiwan Airtic brand

04.The lead screw adopts the Japanese THK brand

05.Camera system uses CGimagetech brand (5 million pixels)

06.The relay adopts Japanese Omron brand

07.Photoelectric sensor adopts SUNX brand of Japan

08.The main parts are made of Japanese mold steel
