Battery Pack Welder Minder Machine Brand
Product details of the battery pack welder
Quick Detail
All products from battery pack welder are independently designed and manufactured by Guangzhou Minder-Hightech Co.,ltd. The product has been tested for performance and durability. Minder Machine's battery pack welder can be used in multiple industries and fields. battery pack welder is produced with exquisite quality.
Product Description
Minder Machine's battery pack welder has better quality than other products in the industry, which is specifically shown in the following aspects.
Product Introduction
Model: MD-ASW

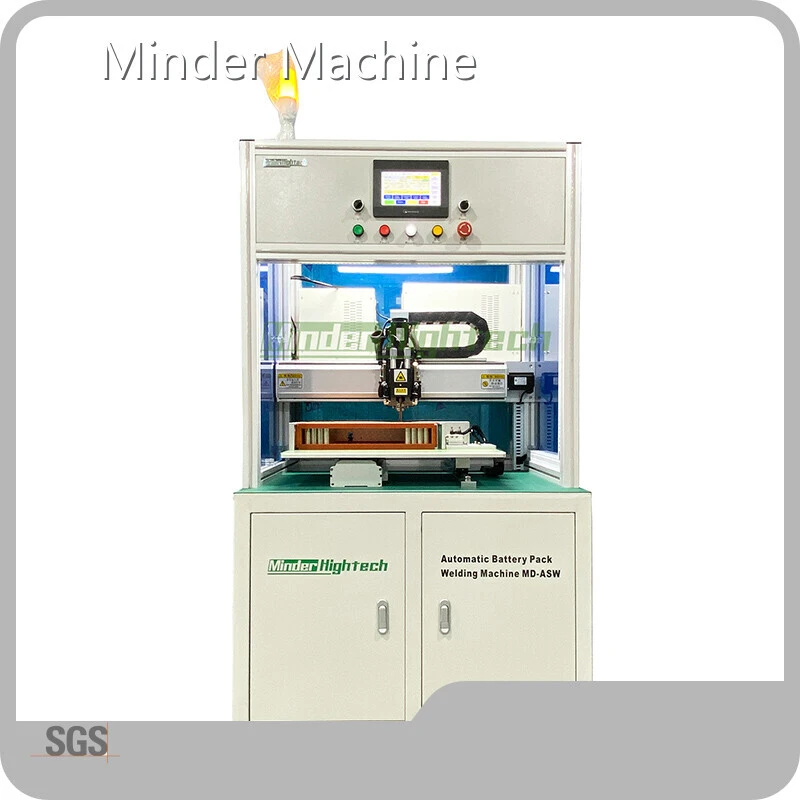

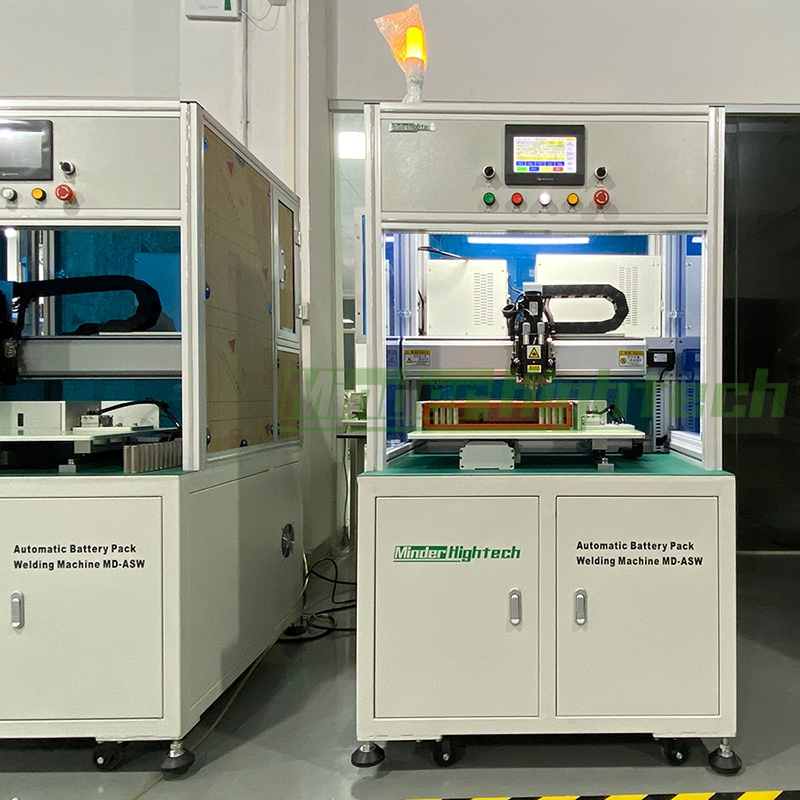

--- MD-ASW Single side battery pack spot welder
Automatic Battery Pack Spot Welder is a general platform of automatic processing technology based on CNC, suitable battery pack spot welding and assembly in the factory. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.
Related Parameters
|
Thickness of the welding |
0.05-0.5mm |
|
Inverter frequency |
4KHz |
|
Maximum output current |
5000A/8000A |
|
Welding way |

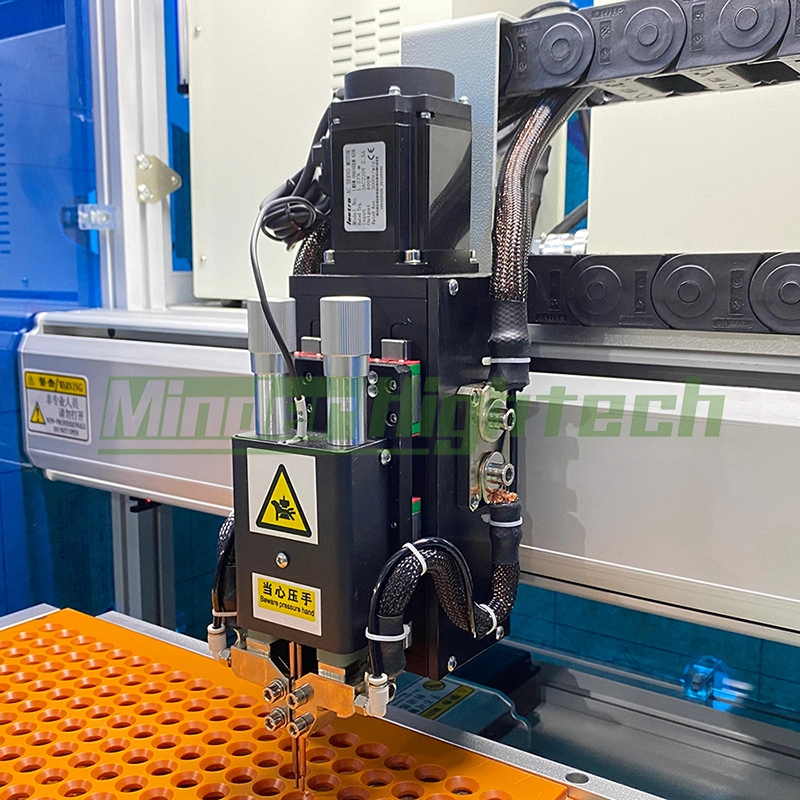

Double pin spot welding |
|
Drive way |
Pneumatic + electric type |
|
Cooling way |
Force air/water cooling |
|
Input power |
200V/3φ380V±10% |
|
Appearance of size |
90L*90W*165H cm |
|
Welding efficiency |
3600Pcs/H |
|
Weight |
280kg |
|
X travel: |
360mm |
|
Z1, Z2 travel: |
220mm |
|
Welding speed: |
0.5s/spot, 3200pcs/h |
|
Max motor speed: |
1000mm/s |
|
Max battery number: |
200 pcs (18650) |
|
Max parameters groups: |
99 groups |
|
Operate system: |
Embedded system, touch screen user interface |
|
Drive mode: |
Step motor and precision guide rail |
|
Supply: |
220V/50Hz |
|
Air pressure: |
0.4-0.7 Mpa |
Features
Application area
With the corresponding fixture, MD-ADW can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.
Operation
Company Introduction
Since inception, Guangzhou Minder-Hightech Co.,ltd has been one of the leading battery pack welder suppliers, focusing on design, production, and sales & marketing. Minder Machine is a company who stresses the importance of battery pack welder quality. Observing business ethics is the cornerstone of Minder Machine. Please contact.
Our products are of excellent quality and favorable price, winning a wide recognition. If you want to know more about the products, please contact us!
