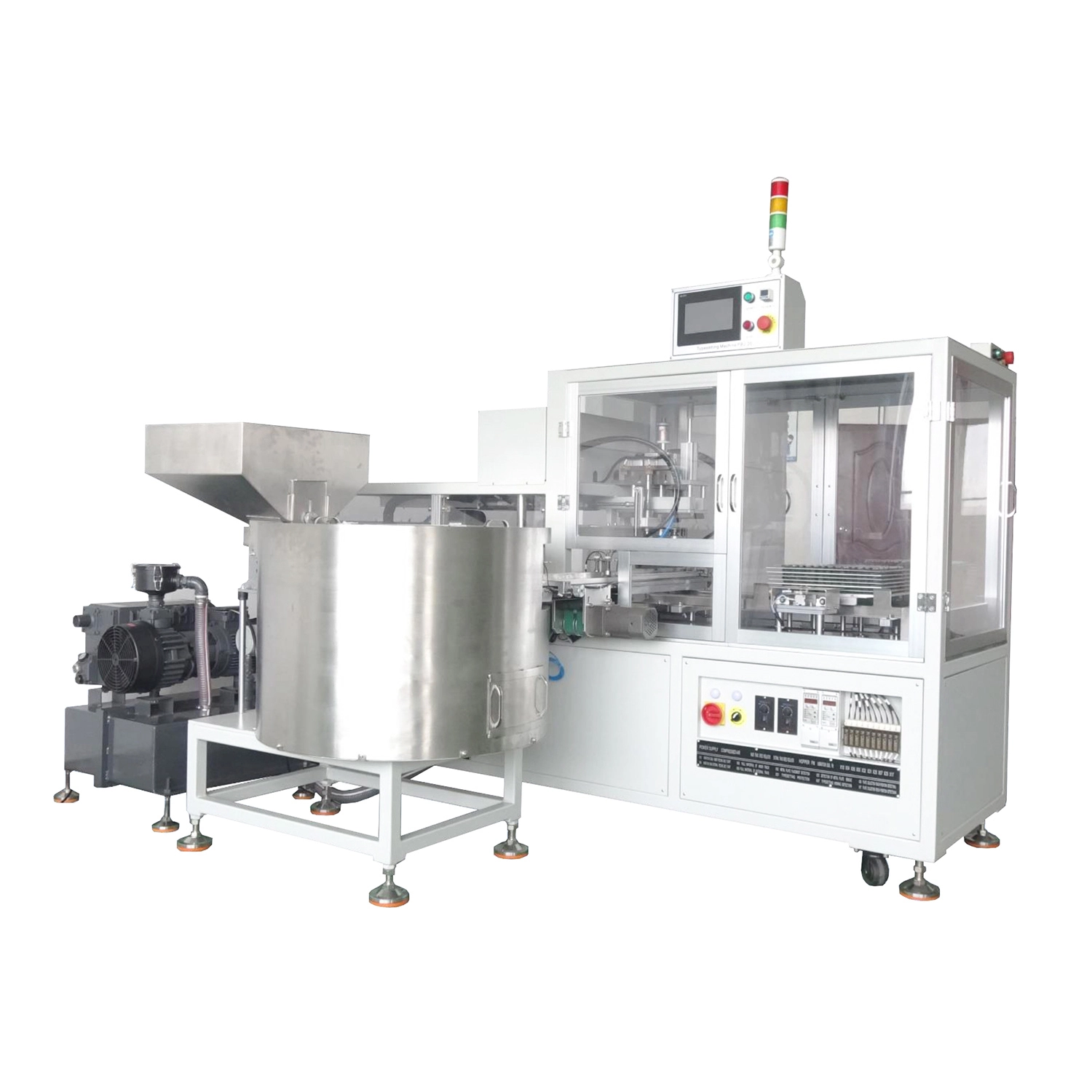

MDYYPBJ3645 Metallized film Capacitor Prepress and Plate Arranging machine
Brief summary：
This equipment is used for prepressing and plate arranging of metallized film capacitor before hot (cold) pressing (excluding 81 series products).
Feature：
1-Ensure the quality of plate arrangement, and prevent the capacitors from squeezing each other when the capacitors are hot (cold) pressed
2-Reduce the labor intensity of workers. It is easy to operate, suitable for new employees, and not affected by workers' proficiency.
Parameter：
|
Dimension |
2600*1790*1840mm(L*W*H) |
|
Weight |
About 1000kg |
|
Power supply |
AC 380V 50Hz |
|
Positive Air source |
0.3-0.6MPa |
|
Negative Air source |
-0.04 ~- 0.1MPa, volume of vacuum tank≥30L |
|
Power |
3KW |
|
Production efficiency |
About 300-500 pieces/min (Depends on the product specification) |
|
Core pressure |
25MPa (bore diameterΦ80, gas source 0.5MPa) |
|
Aluminum plate size |
360 X 360~450 X 450; (can be customized according requirements) |
