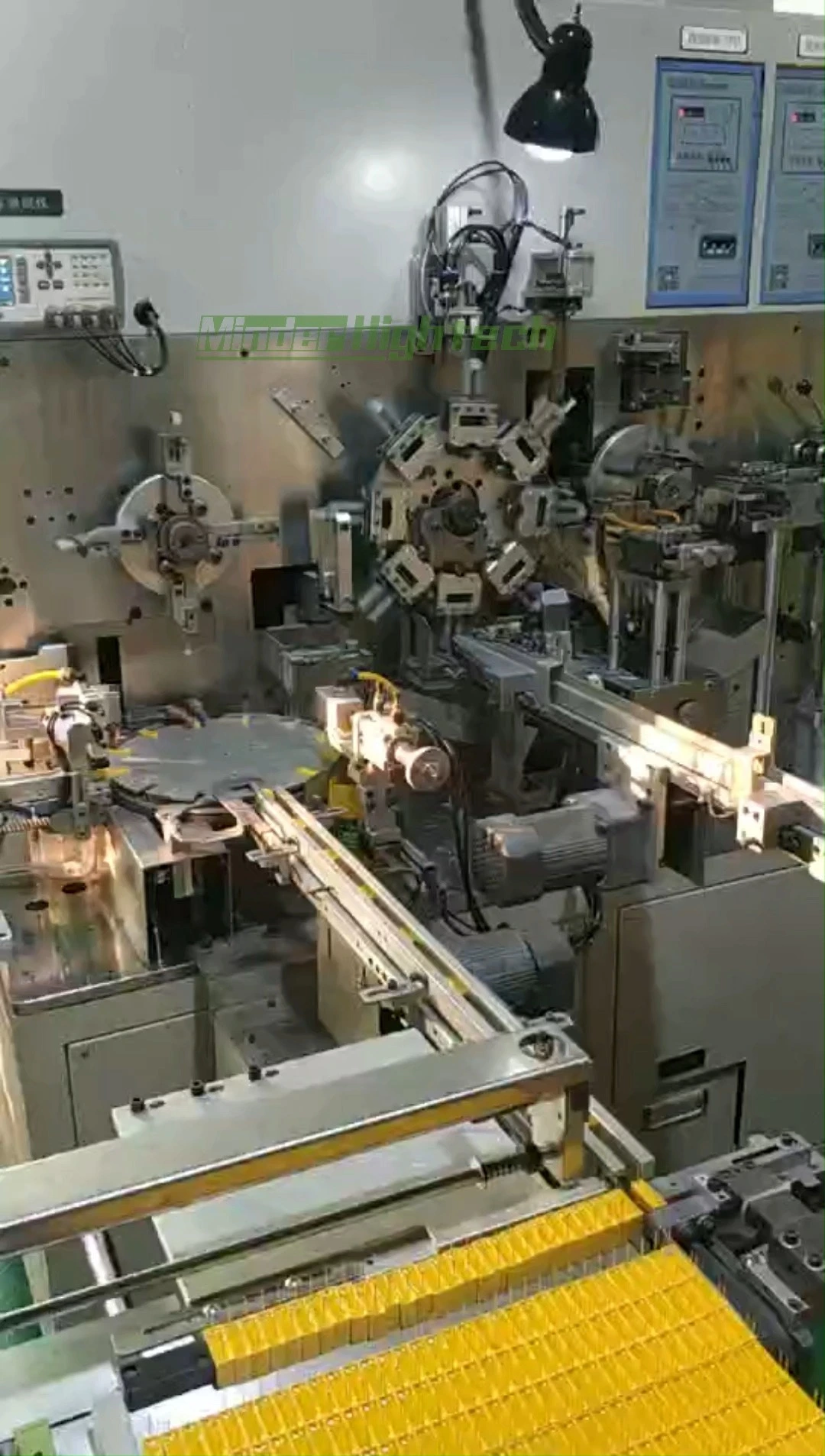

MDZLJ22541 Metallized Film Capacitor Assembly Machine
Applicable foot distance: 22.5-41
Brief summary：
It is suitable for metallized film capacitor welding, dispensing, inserting box and arranging plate
Feature:
1-Parallel moving wire feeding, only need to replace flattening module when changing specification
2-The assembly machine has the function of welding strength detection
3-The assembly machine has the function of electrical performance detection (optional)
4-Parameterized adjustment of the wire delivery width and box insertion height
5-Parameterized adjustment of output box frame
Parameter:
|
Dimension |
3100*2250*1900mm(L*W*H) |
|
Weight |
About 1000kg |
|
Power supply |
AC 220V 50/60Hz or AC 380V |
|
Air source |
0.5-0.7MPa |
|
Power |
3.5kw |
|
Production efficiency |
About 70-95 pieces/min ( Super large products (slow) |
|
Tray plate size |
450x350 (inside the opening)x30 (mm); (can be customized according to user requirements) |
