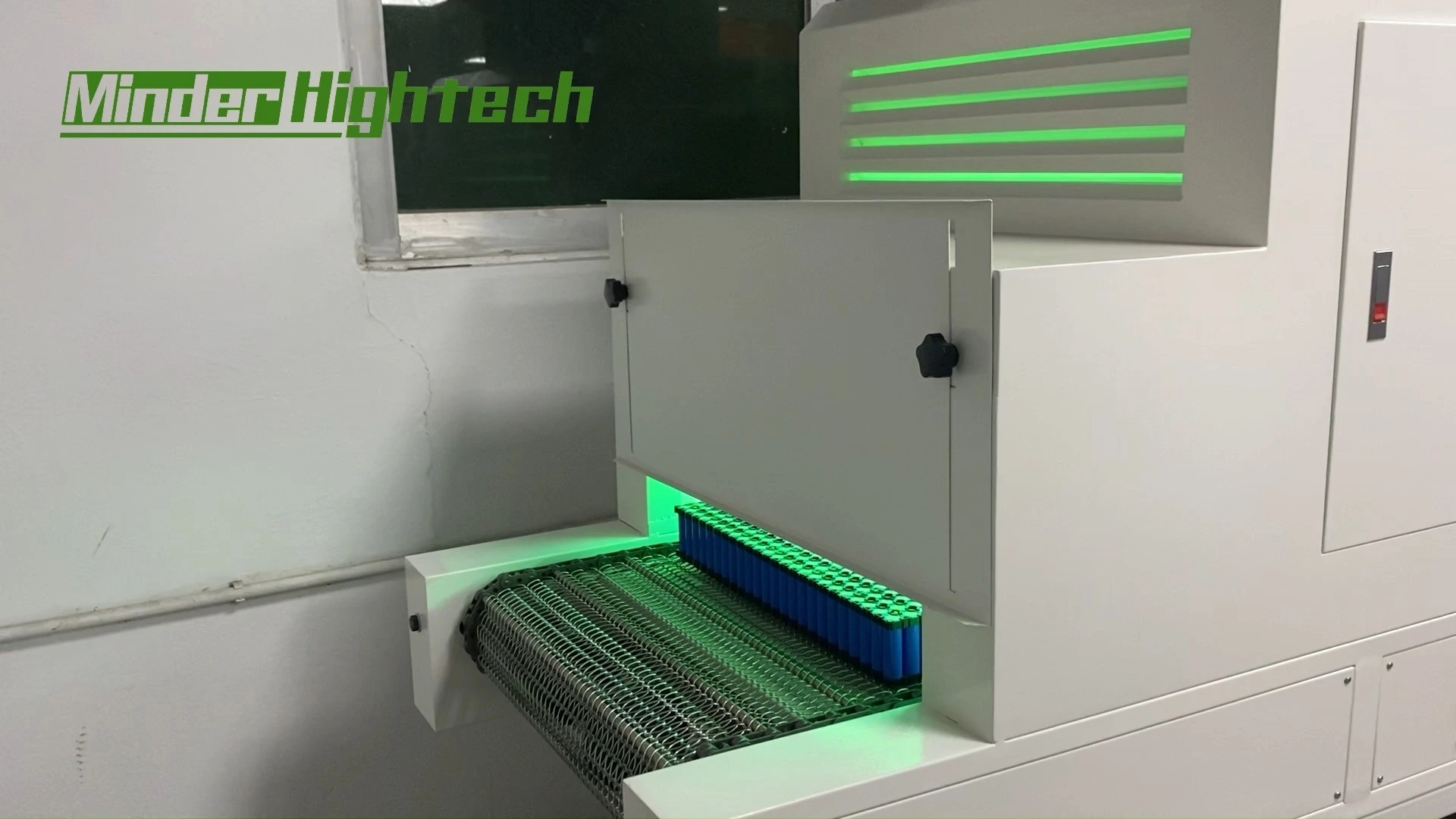

MDUC-600 UV Curing Machine
UV Curing Machine:
|
Product name |
Medium UV curing machine |
|
Mesh belt specifications |
600mm×2000mm |
|
Size |
900mm（width）×2000mm（long）×1150+30mm（Exhaust fan height）×700mm（Mesh belt height） |
|
Total power |
6.5KW （2 sets of 3KW on bottom and top each, separate control of UV lamp） |
|
Power supply voltage |
380V |
|
Exhaust fan |
A high-power centrifuge |
|
Effective light area |
800mm |
|
Inlet |
600mm (height 120mm) |
|
Outlet |
600mm (height 120mm) |
|
Conveyor belt material |
High temperature resistant Teflon |
Main Performance:
1. The tunnel structure makes the shading is good，no harm to the operators
2. Light design，configuration import magnesium alloy reflective lampshade，efficiency than ordinary light solid machine increased by 40%
3. Imports of Teflon or stainless steel mesh belt，high temperature resistance，import frequency conversion motor，transmission speed。
4. Instantaneous drying，so that the substrate surface to achieve the high hardness ，high gloss，abrasion resistance，resistance to solvent effect
5. Exhaust system assembly pure，with regulation of the temperature，avoid the impact of special product deformation
6. Using UV lighting transformer，convenient and reliable use
