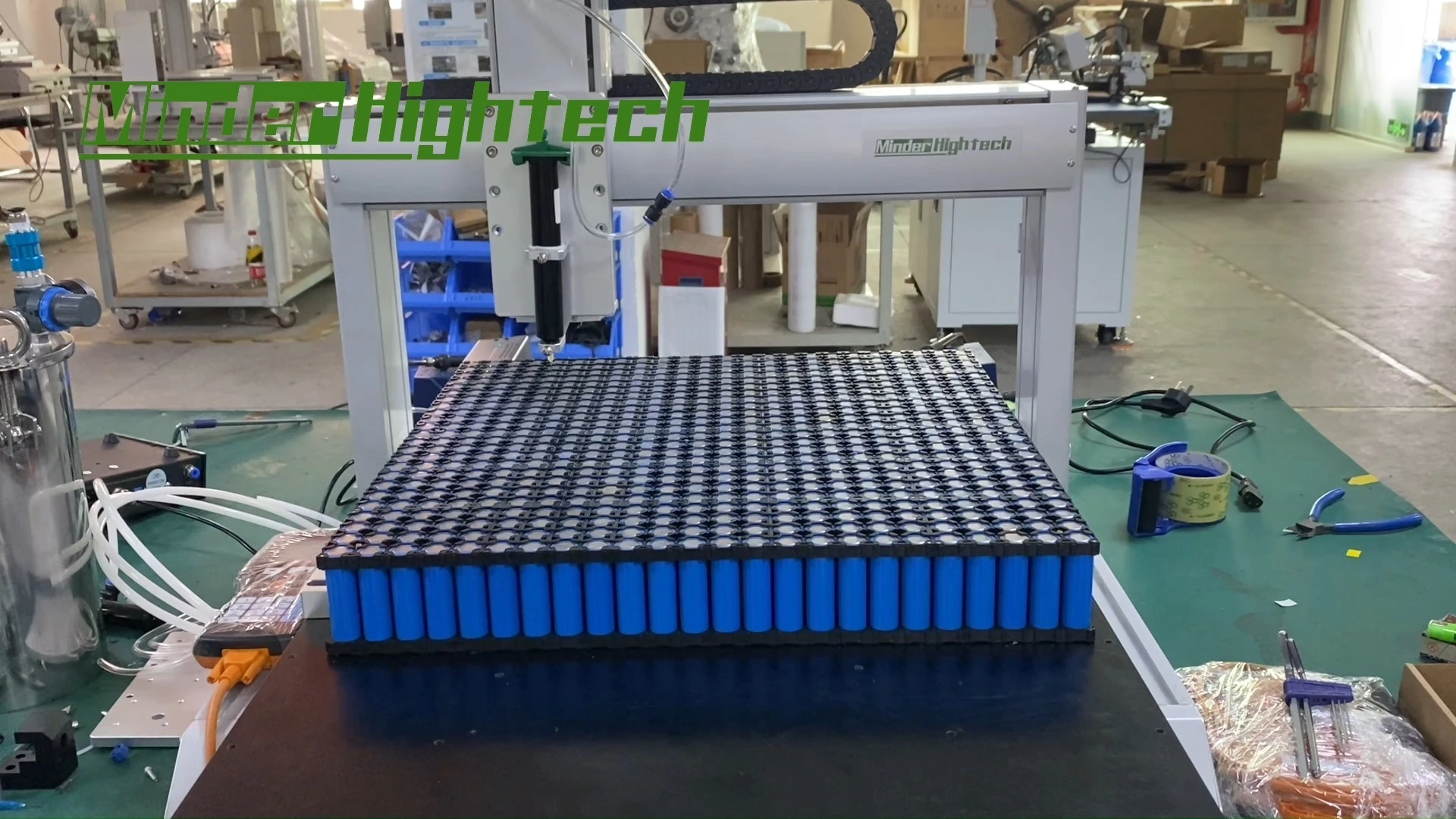

MD-DD-L5721 Glue Fixation Machine for Battery Packs
Assembly solution:
----Dispensing robot/glue fixation
----Desktop Robotic Screw Fastening robot
Dispensing robot can dispensing any kind of glue automatically.
Applications:
UV glue, AB glue, EPOXY(black glue), COB black glue,white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...
Feature:
• Desktop type, can be placed on the production line.
• DIY mode, free matches of axis and heads, head number range is 1~12.
• Optional Full English marked machine body, to be international application.
• Multi-axis design with high rigidity aluminum alloy.
• Double Y axis type, automatic working alternatively, saving the time of placing object.
• The glue automatic feeding, safe and silence.
• Main components of the machine are high quality, ensure the reliability and accuracy.
• Optional Interface of English/Chinese.
• Fixture and tooling available. Contact us for customization.
|
Model |
MD-DD-L5721 |
|
Stroke X |
500mm |
|
Stroke Y1 |
700mm |
|
Stroke Z |
200mm |
|
Dispensing system(head) |
1(optional 2 or 3 or 4) |
|
Driving method |
stepping motor / servo motor |
|
Moving method |
point to point/linear/circle |
|
Programing interface |
teaching box/PC |
|
Repeat accuracy |
+-0.02mm |
|
Speed |
0.1-800mm/sec |
|
Available Graph |
line/circle/arc/continuous line/3d irregularity line |
|
Program storage |
100groups/1000points per group |
|
Power |
AC 220V/50Hz |
|
Air |
0.5Mpa |
|
Dimension L |
1000mm |
|
Dimension W |
1200mm |
|
Dimension H |
1500mm |
|
Weight |
360kg |
