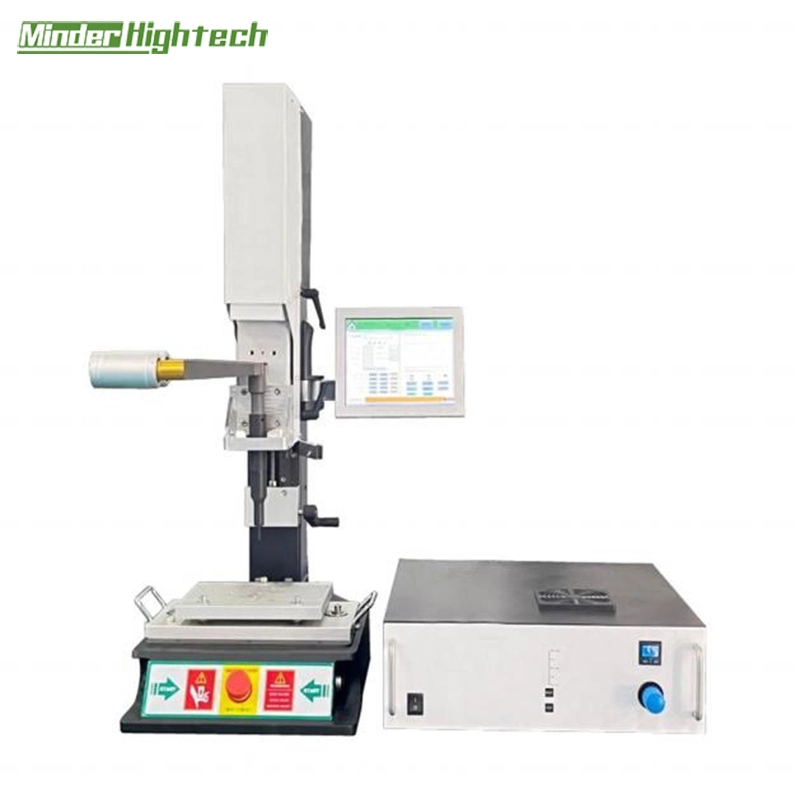

MDTN-NJ750 Ultrasonic Torch IGBT pin welder

Ultrasonic torch welder for IGBT pin welder

The ultrasonic generator and driver are designed as separate modules, connected by imported high- frequency cable plugs for quick plugging.

This can effectively protect the electronic components inside the ultrasonic generator. In addition,    you can place the ultrasonic generator and electrical box in the most convenient location according to the actual production site environment.

Features:

1.       German engineers meticulously design and manufacture with precision.

2.       The driver has a compact size and can be flexibly applied in the narrow space of automated welding lines.

3.       The overall use of American aluminum 7075 high-strength aluminum alloy material.

4.       The Festo cylinder from Germany is durable and has an output pressure of 750N.

5.       SMC pressure proportional valve press lowering and welding pressure segmentation technology. THK precision linear double rail slider from Japan runs smoothly and has high precision.

6.       Japanese SMC correction floating joint and hydraulic buffer.

7.       Swiss Remo Rapid High Frequency Connector Plug in.

8.       German TKD high-frequency high-voltage cable.

9.       Precise mechanical travel limit device.

10.    The device can carry a power of up to 2000 watts.

11.    The ultrasonic triple resonance device can rotate freely 360 degrees axially.

12.    It can upload product welding data and cooperate with MES system for data management.

Equipment parameters：

Application:

1. The device has time mode, energy mode, depth distance, and three welding modes.

Simultaneously equipped with time triggered, pressure triggered, distance triggered, and three ultrasonic triggering modes.

2. The maximum welding pressure of the equipment can reach 750N, and it has advanced pressure ratio control technology. During the welding process, the pressure is controllable step by step and   precise step by step. The segmented control function of downward pressure and welding pressure  makes the product welding process more perfect and controllable, with stronger and more stable    welding quality, and a wider range of product welding application projects

3. The equipment can be equipped with a secondary ultrasonic function to remove excess materials or vibrating workpieces from the welding head. It can effectively protect the surface of the welding   head and complete some special application projects.
