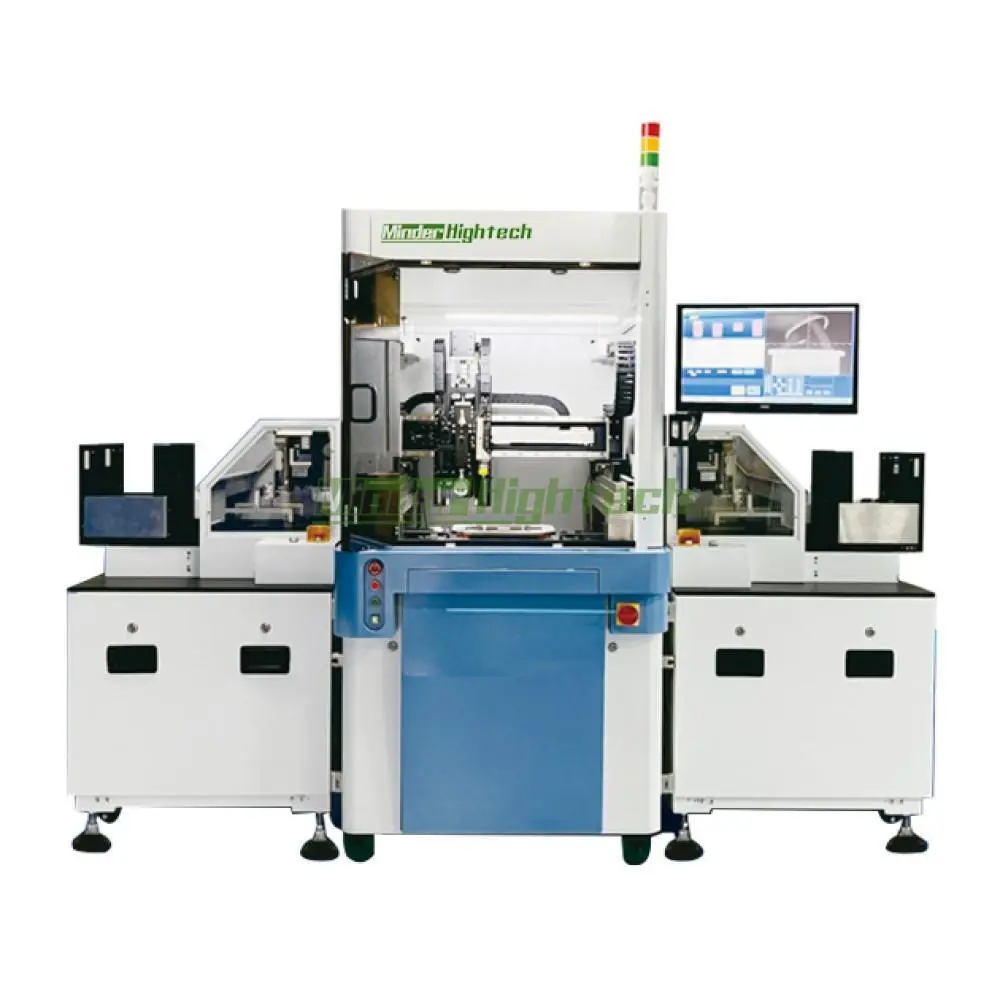

MDRB-UW2030B IGBT Contact Pin Ultrasonic Welder
Ultrasonic Welder
https://www.youtube.com/embed/Jpz61xvBzZs
MDRB-UW2030B contact Pin ultrasonic welder
IGBT ultrasonic welding machine
IGBT/SiC/IPM module integrated needle/needle holder welding
1. Feature:
- Use the most suitable ultrasonic welding process for the pin - torque welding process
- Full process monitoring of pressure, energy, time, etc. to ensure welding quality
- Automatic loading and unloading/automatic alignment/automatic welding
- Integrated product cleaning function
- Fast delivery and excellent service
2.Specification:
|
Welding pressure |
50~500N |
|
Welding pressure accuracy |
±3N |
|
Single point welding time (medium 2.0 * 0.5mm) |
<0.4S |
|
Solder joint thrust (medium 2.0 * 0.5mm) |
>30kgf |
|
Welding depth control |
0.01mm |
|
Substrate feeding time |
≤10s |
|
Ultrasonic frequency |
35KHz |
|
Ultrasonic power |
2400W |
|
Ultrasonic amplitude |
40%~100% |
|
Weldable material thickness |
0.1 ~1mm |
|
Solderable pin diameter |
1~5mm |
|
Welding range |
200*300*60mm |
|
positioning accuracy |
+0.01mm |
