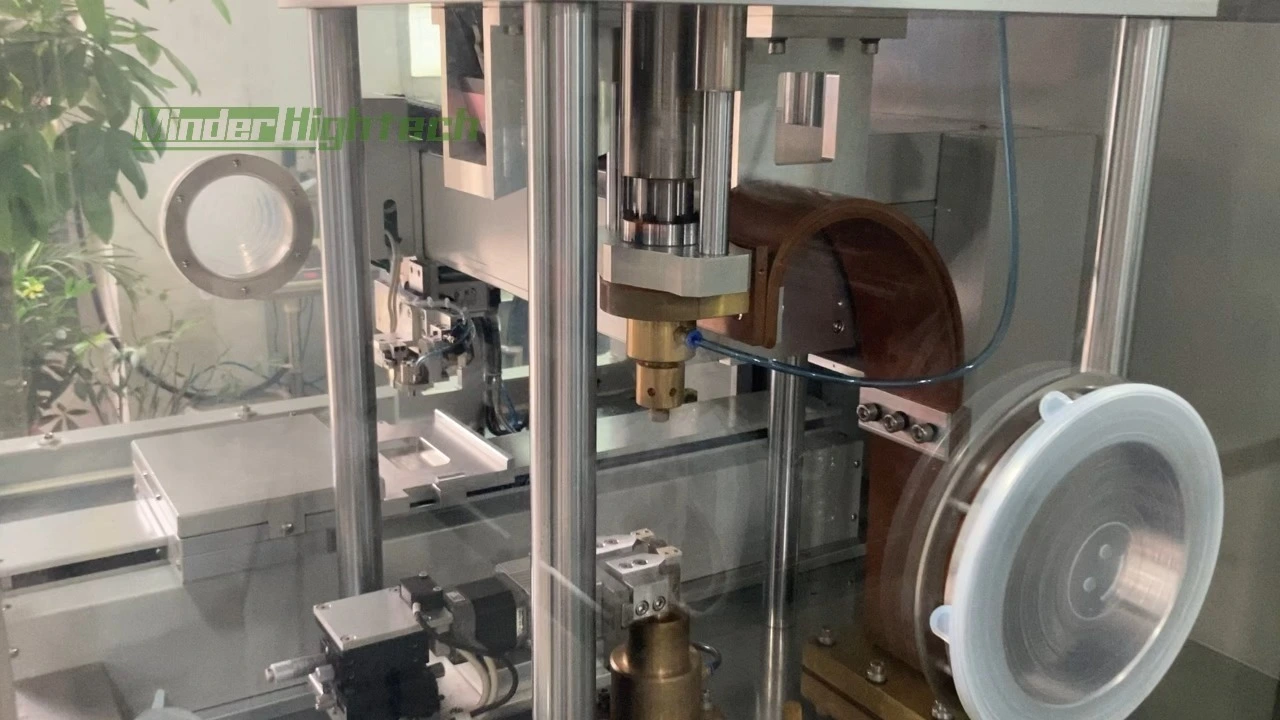

Fully Automatic TO Projection Welder

MDFS-2000-2A  Fully automatic TO projection welder

1. Functional features: achieving automatic sealing of TO38/TO46/TO56/TO60/TO9 caps;
2. Efficiency: 4-5s/piece;
3. Concentric accuracy: ≤ ± 25um;
4. Welding pressure: adjustable time pressure;
5. Power component: Transistor type intermediate frequency power supply, current size and discharge time can be edited; Current support of 20000 A;
6. Oven temperature: room temperature~120 °;
7. Monitoring camera: automatic online monitoring and display of the welding process;
8. Software function: different product parameter programs can be saved;
9. Good human-computer interaction software with production counting, production efficiency statistics, and fault handling auxiliary functions;
10. Equipped with upper and lower electrode service life management and electrode replacement reminder function;
11. Coaxiality correction and alignment method: precision electric sliding table digital alignment system;
12. Auxiliary configuration: equipped with dew point analyzer and nitrogen analyzer;
