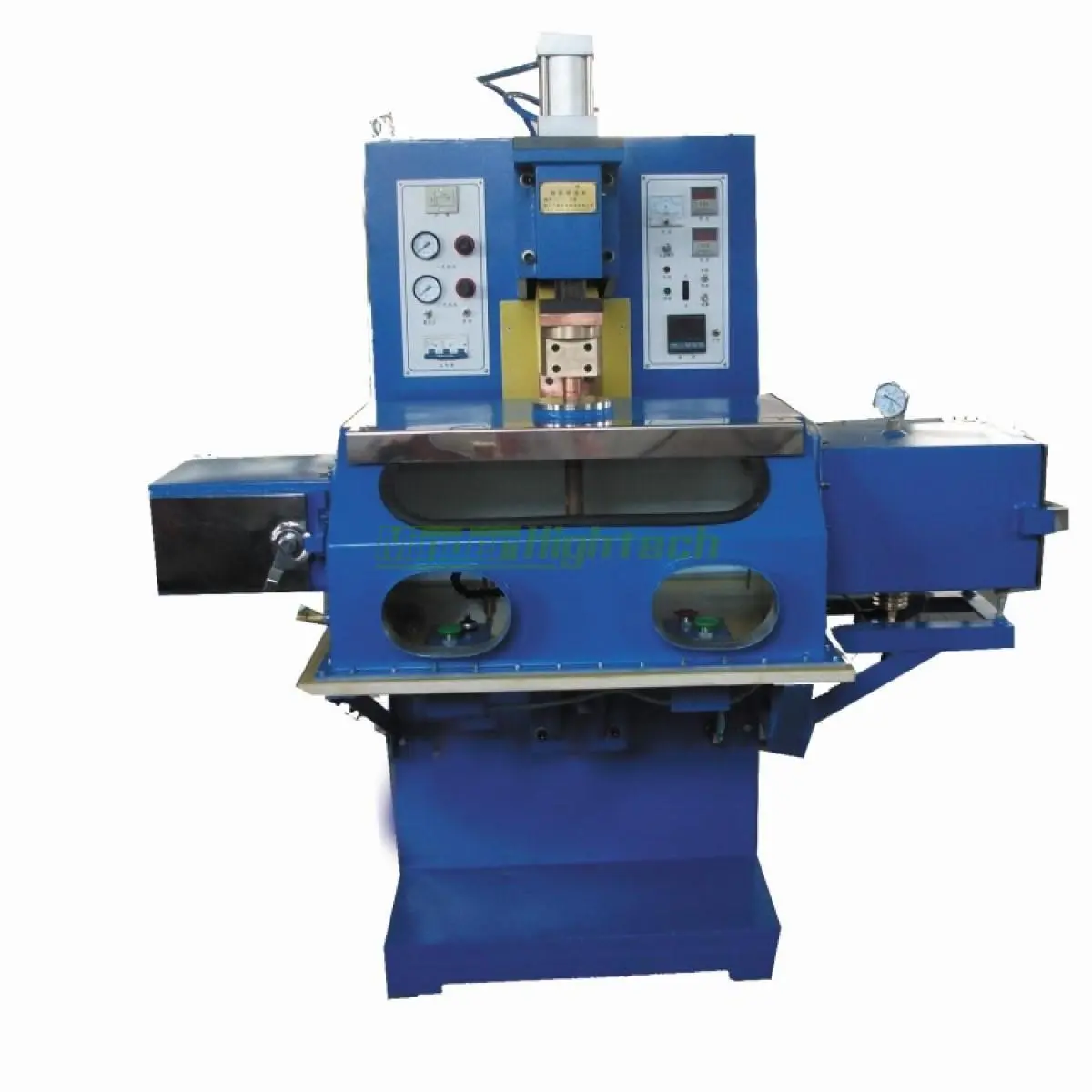

Seal welder

Application:

suit for TO-46,TO-56,mini(diameter:1.96mm)optical component seal welding

Configuration: Input case：

with vacuum pumping,N2 charge, oven heating function.

Operation case: with N2,1kg air pressure;

contain valve to manually control the air discharge.

Output case: easy to get out the material.

Main seal welder: capacitive discharge welder.

Specifications:

1，Max storage energy: 3500J.Transformer capacity:35KVA.

2, Capacitance capacity:(330uF*80PCS)=16500uF+-5%.

3, Optional dew point meter to fulfill military product.

4, Max pressure:4000N. Stroke:50mm.

5, Charge voltage:80-380V adjustable.

6, Using dual start button to start welding, ensure security.

7, Requirement: 3 phase, 380V 50Hz. air 0.6 Mpa. Input power:4kVA.

8, The vacuum oven can auto control the temperature and manual control the N2 and pump Vacuum.

9, Heating temperature:150degree+-5%.

10, Dimension:1700*2000*1800. Weight:700kg.
