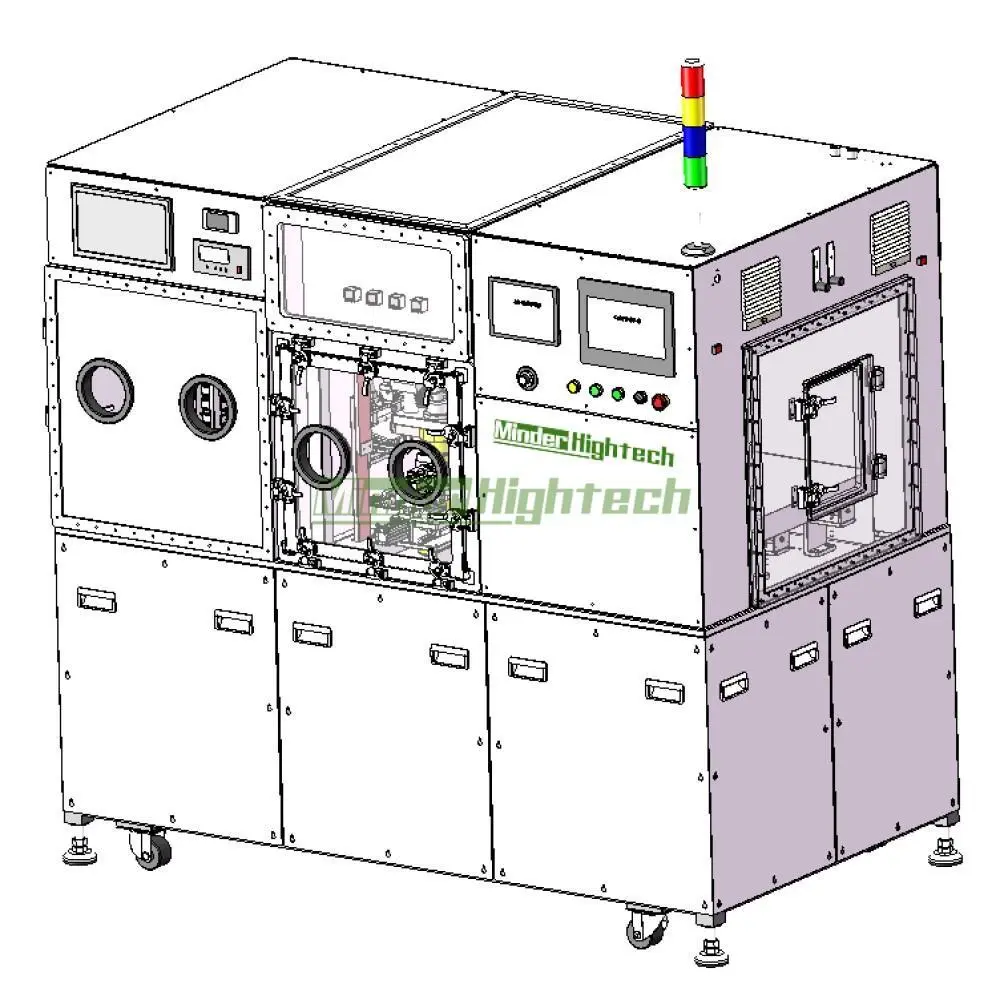

MDFS-2000-1A Fully Automatic TO Sealing Machine
MDFS-2000-1A Fully Automatic TO Sealing Machine
- Functional features: achieving automatic sealing of TO38/TO46/TO56/TO60/TO9 caps;
- Efficiency: 1000 pieces/hour;
- Concentric accuracy: ≤ ± 25um;
- Welding pressure: adjustable time pressure;
- Power component: Transistor type intermediate frequency power supply, current size and discharge time can be edited; Current support of 20000 A;
- Oven temperature: room temperature~150 °;
- Monitoring camera: automatic online monitoring and display of the welding process;
- Software function: different product parameter programs can be saved;
- Good human-computer interaction software with production counting, production efficiency statistics, and fault handling auxiliary functions;
- Equipped with upper and lower electrode service life management and electrode replacement reminder function;
- Coaxiality correction and alignment method: precision electric sliding table digital alignment system;
- Auxiliary configuration: equipped with dew point analyzer and nitrogen analyzer
|
Power supply: |
380V 50/60Hz |
|
Power: |
5 kW |
|
Temperature: |
23 ℃± 5 ℃ |
|
Humidity: |
less than 60% RH |
|
Noise: |
less than 40dB |
|
Nitrogen: |
0.3 MPa~0.5 MPa |
|
Compressed air: |
0.3 MPa~0.5 MPa |
|
Equipment size: |
1700 L * 1415 W * 2040 H (excluding alarm lights) |
