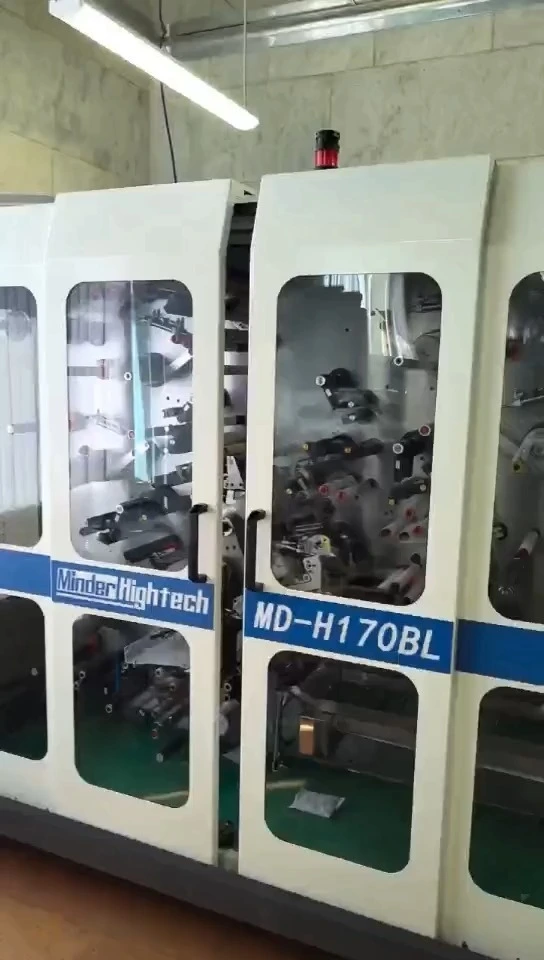

Automatic Capacitor Metallization film Winding Machine
Characteristics：
1. With bilateral cleaning, outer film and inner light-sandwich film protec-tion, the winding effect of large diameter core can be improved. The inner diameter of elements can reach 125 mm and the outer diameter can reach 168 mm.
2. It has the function of automatic tightening and automatic pre-pressing of key-type film material.
3. It has the function of automatic elimination and classification of the first defective products.
4. This machine adopts PLC + touch screen control, with capacity, tension, pressure calculation, storage and reading functions.
5. The pressure of the main wheel is controlled by pneumatic double pressure wheel; the pressure of the wheel is adjustable; and the pressure is controlled by electric proportional valve.
6. The whole machine is controlled by Panasonic AC servo system, and the winding tension is controlled by Japanese precision low friction cylinder, which can improve the accuracy and compensate the tension when the speed is lowered.
7. Metallized film material axis unwinding has translation follow-up flattening roller mechanism to effectively prevent film material wrinkling; material tray movement adopts double-column guidance to improve the movement accuracy.
8. It has the function of I/O signal status display of PLC; fault alarm has visual display of fault guidance solution.
9. It has the function of secondary heat seal. The time and pressure of primary heat seal and secondary heat seal can be set separately, which is convenient for the later process.
10. Pre-adjustment of automatic stagger position and accuracy mainte-nance function of optional film material.
Category
Project
KX-168D
Film size
Width of double roll material(mm)
50-160
Material Thickness of Main Coil Metal Film(μm)
3.0-12
Thickness of Metal Film Material(μm)
6-20
Width of inner and outer optical film(μm)
50-160
Thickness of inner and outer optical film(μm)
20-50;12-20
Inner/Outer Diameter of Metal Film(mm)
75-300
Aluminum foil thickness(μm)
20-25
Aluminum foil width(mm)
180
Inner/Outer Diameter of Aluminum Foil(mm)
40/160
Elements size
Standard mandrels diameter(mm)
30,40,50,60
Optional maximum mandrels diameter(mm)
125
Elements diameter range(mm)
50-168
Basic parameters of equipment
Aluminum foil hanging shaft
4
Material hanging shaft(PC)
6
Maximum speed of main volume(rpm)
Rotating speed 6000rpm; Linear speed 7000mm / S
Tension range(g)
80-1600
Core preload(kg)
Max 200
Equipment dimensions (L x W xH)(mm)
2300x2000x2200
Net weight of equipment(kg)
2900
Gas source(Mpa)
0.5±10%
Power supply
AC 220V ±10% 50Hz 5.0Kw
