Product details of the ultrasonic plastic welder


Product Description

Our ultrasonic plastic welder varies from sizes, color and shapes. Its quality is strictly controlled from the design and development stage. The integrity, strength and product quality of Minder-Hightech have been recognized by the industry.

Product Introduction

Ultrasonic Plastic Welder Ultrasonic Plastic Welder Company 4

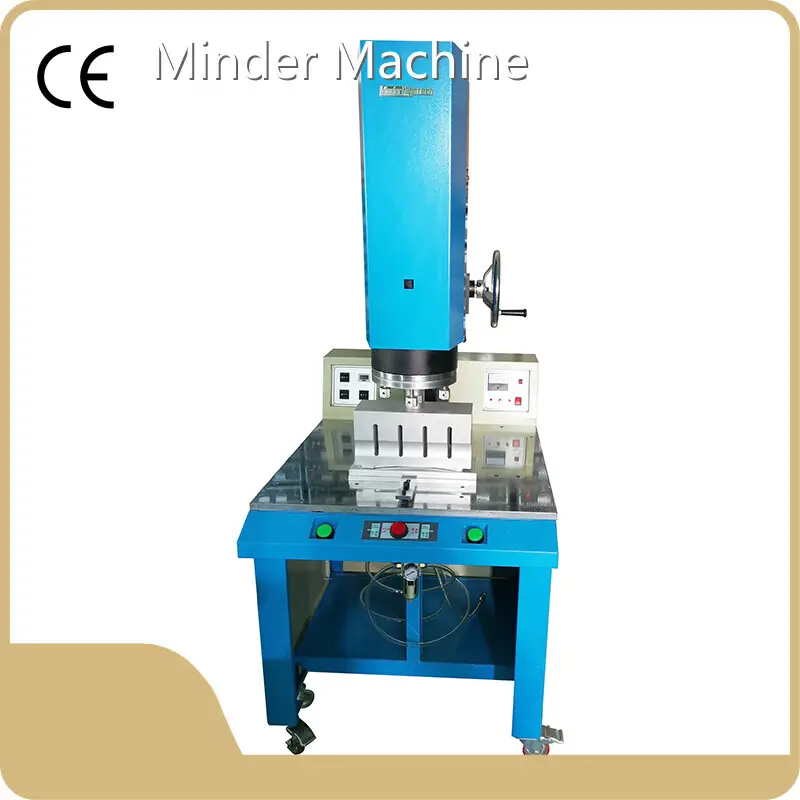

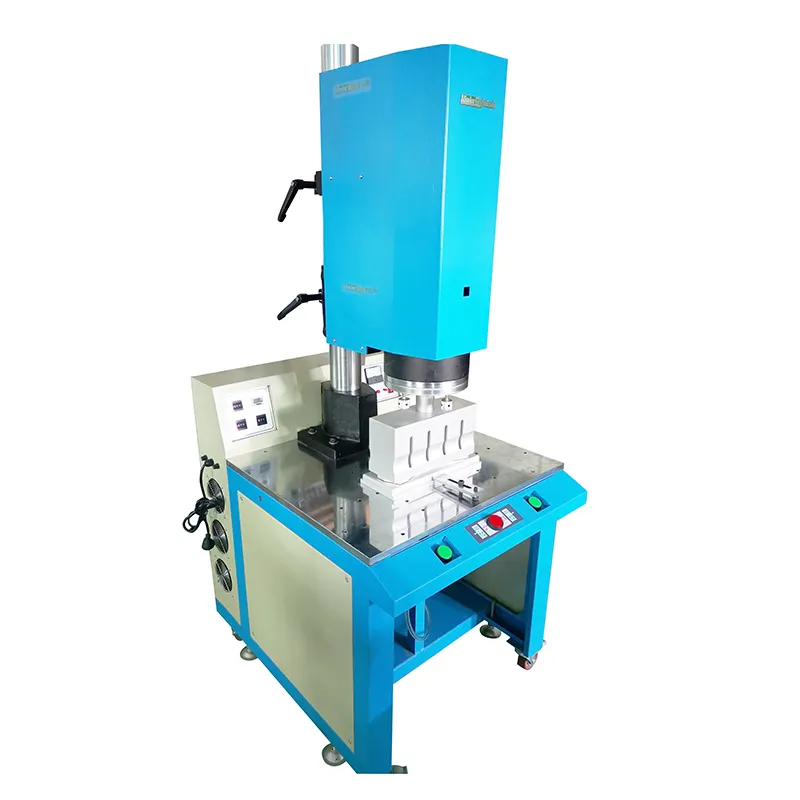

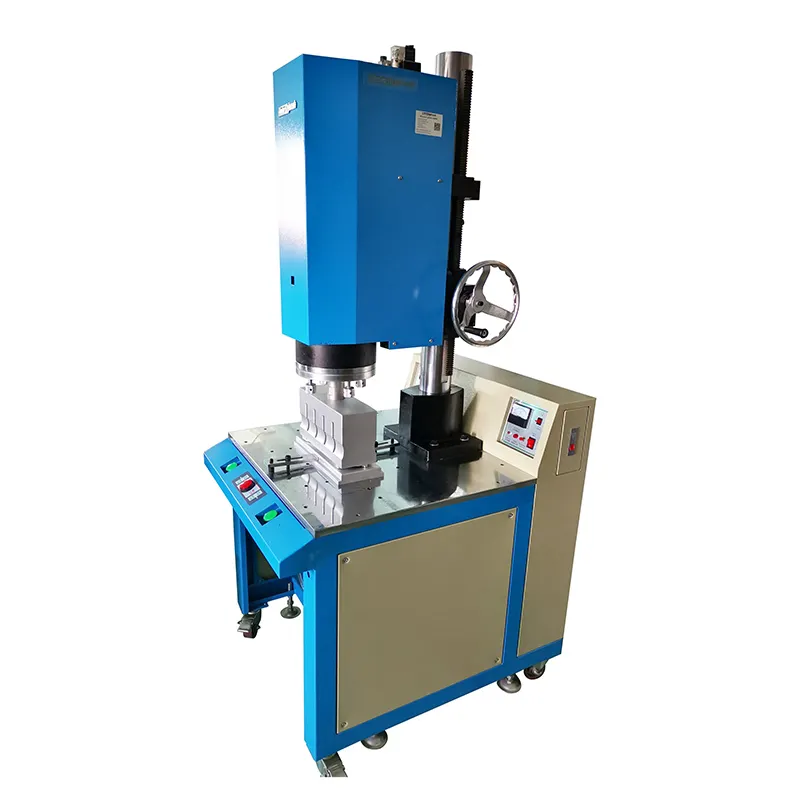

--- 15K4200W Ultrasoinc plastic welder machine

1 (3) - 副本

Related Parameters

Output power(W)

4200W

Frequency

15KHz

Input voltage

220V

Welding head stroke

100mm(adjustable)

Self excited oscillation circuit of oscillation system

Output time

0.01-9.99s

Current indication

output amplitude meter indication

Air pressure range

1-7bar

Power output range

1-4

gears continuously adjustable Vibration head cooling system

air-cooled

Welding area(mm)

∮350mm

SIze

970*750*1950MM

Weight

350KG

5 (7)

Features

Ultrasonic Plastic Welder Ultrasonic Plastic Welder Company 7  Transducer has strong power and good stability.Ultrasonic Plastic Welder Ultrasonic Plastic Welder Company 8  The anti tilting and coaxial direct pressure design of the fuselage can balancethe pressure and improve the welding precision.Ultrasonic Plastic Welder Ultrasonic Plastic Welder Company 9  4200w power output suitable for welding larger plastic products with goodwelding effect.Ultrasonic Plastic Welder Ultrasonic Plastic Welder Company 10  The main electrical components and parts are assembled with high-qualityimported parts.Ultrasonic Plastic Welder Ultrasonic Plastic Welder Company 11  The unique horizontal screw design makes the mold easy to debug.Ultrasonic Plastic Welder Ultrasonic Plastic Welder Company 12  The structure is ingenious the design is reasonable and the appearanceis beautiful.

Ultrasonic plastic welding machine

4~1
4~1
3~1
3~1
2~1
2~1


Company Advantage

• Our company is located in the place with beautiful environment and convenient transportation.
• Our company has a number of high-quality management personnel and technical personnel with professional skills and rich practical experience. All this provides a solid technical force and management ability for our development.
• Minder Machine has been dedicated to the business of industrial machinery for years. Now we are the leader in the industry.
Minder Machine's industrial machinery are trustworthy with excellent quality and favorable price. Please contact us as soon as possible if you need it!

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
