Screwing Robot Minder Machine Custom
Product details of the screwing robot
Product Introduction
The design of Minder Machine screwing robot is user-friendly and practical. Every component is being screened fully tested to ensure 100% in quality. With good word-of-mouth, the product is considered to have high or favorable market prospects.
Product Introduction

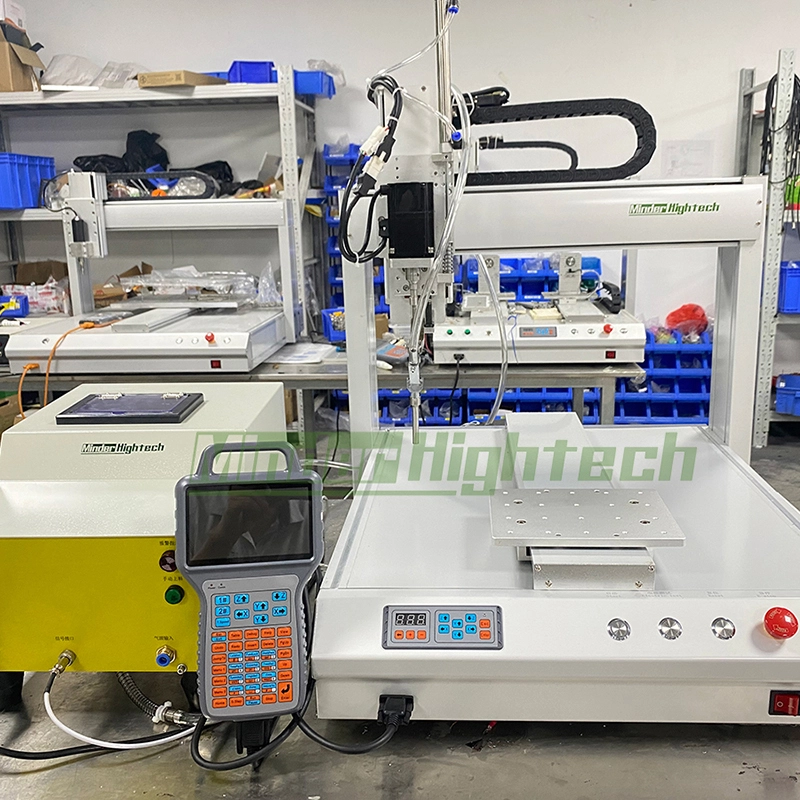

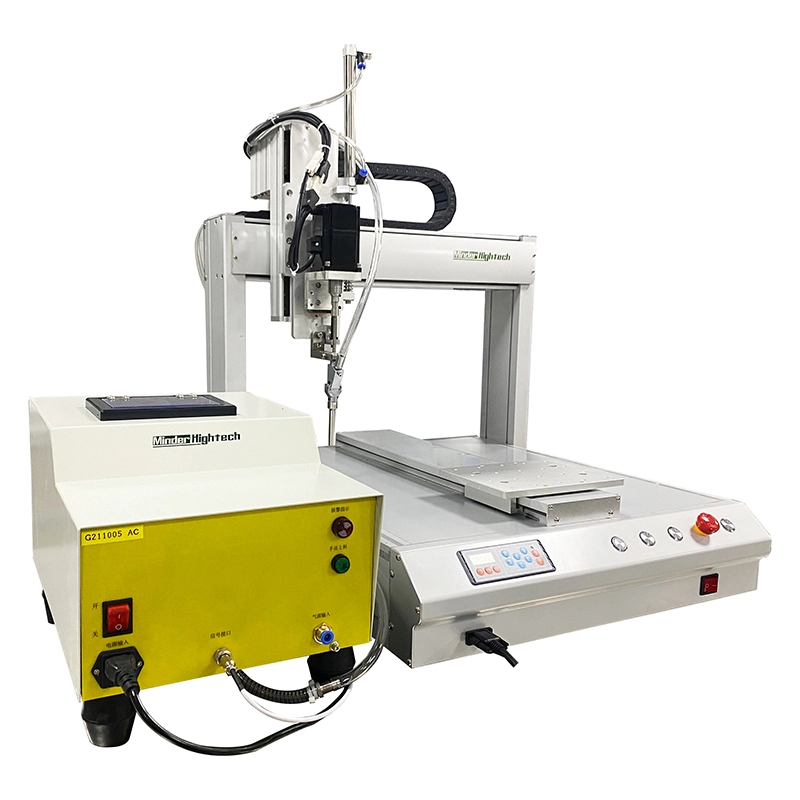

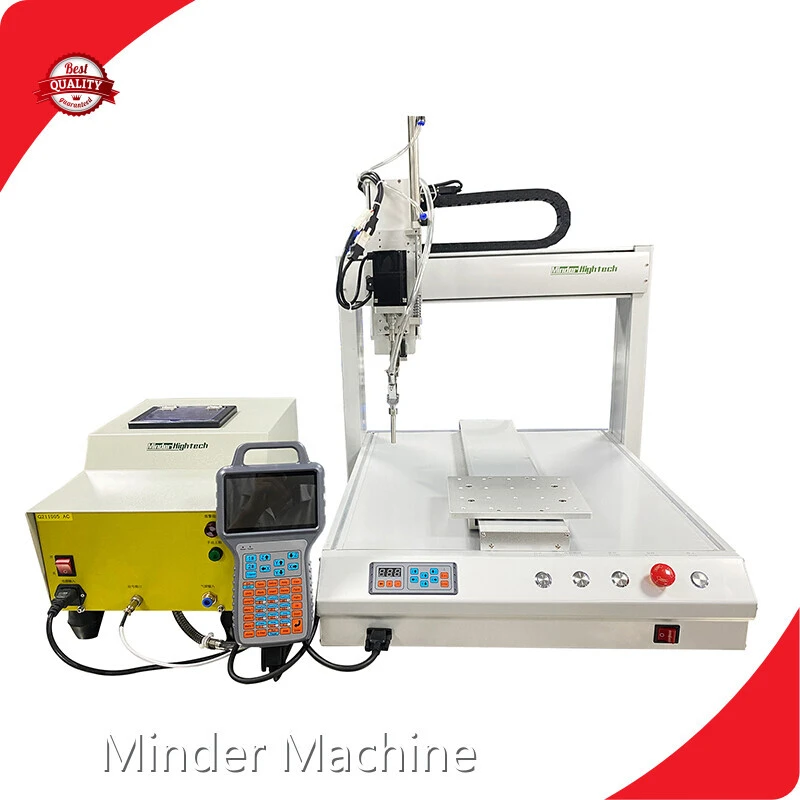

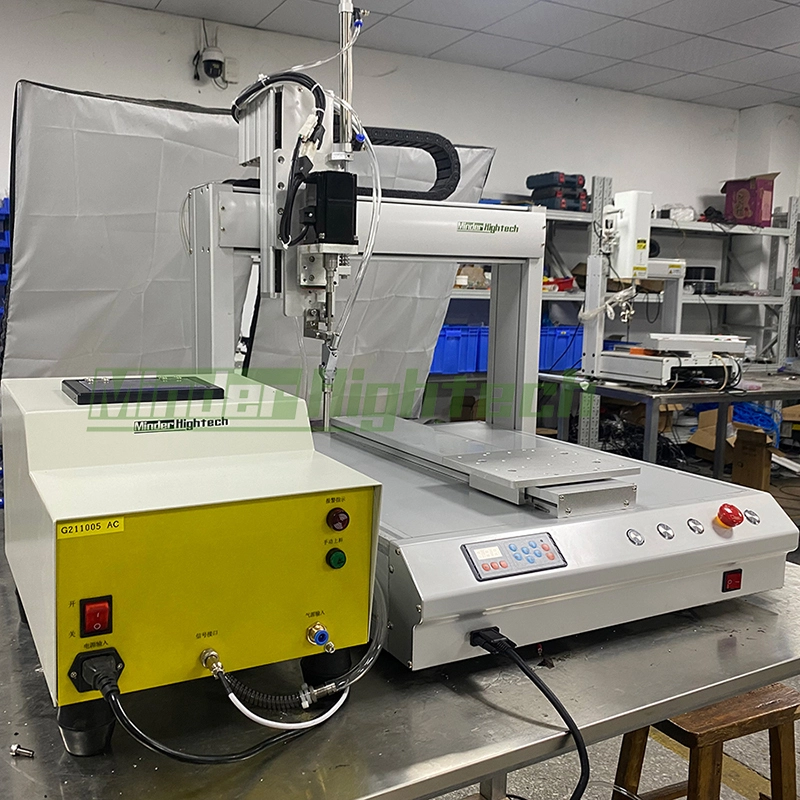

--- Assembly solution--- Servo type Screw fastening robot single Y air blow type Robotic screw fastening system can increase throughput on a variety of assembly application
Related Parameters
|
Model |
MD-DL- T4411CQ |
MD-DL- T5511CQ |
MD-DL- T53311CQ |
MD-DL- T54411CQ |
MD-DL- T6441CQ |
||||
|
Stroke X |
400mm |
500mm |
500mm |
500mm |
600mm |
||||
|
Stroke Y1 |
400mm |
500mm |
300mm |
400mm |
400mm |
||||
|
Stroke Y2 |
no |
no |
300mm |
400mm |
400mm |
||||
|
Stroke Z |
100mm |
100mm |
100mm |
100mm |
100mm |
||||
|
Material size |
400*300 |
500*500 |
170*300 |
170*400 |
210*400 |
||||
|
Rated speed |
500mm/s(X-Y-Z)Max1000mm/s |
||||||||
|
Screwing No. |
Default 1 PC(optional2PCS) |
||||||||
|
Drive |
Precision stepping motor/servo motor+synchronous belt/ball screw |
||||||||
|
Motion mode |
Point to point; line circle |
||||||||
|
Positioning accuracy |
+-0.02(mm) |
||||||||
|
Program |
Control Teaching Box/PC |
||||||||
|
Screw feed mode |
air blow |
||||||||
|
Screw feed speed |
60PCS/Min |
||||||||
|
Screw driver |
SDL series Servo motor screw driver(optional others) |
||||||||
|
External |
RS232 |
||||||||
|
Screw size |
M1.0-M5.0 |
||||||||
|
Screw length |
4-16mm |
||||||||
|
Torque range |
0.03-45kgf.cm |
||||||||
|
Lock speed |
1.5s/ PCS |
||||||||
|
Program storage |
100groups/1000points per group |
||||||||
|
Power |
2*220V50Hz |
||||||||
|
Air |
0.5Mpa |
||||||||
|
Driver model |
Applicable torque |
Speed (rpm) |
Reduction ratio |
Torque accuracy |
Voltage (v) |
||||
|
DP-SDL900 （100W） |
1.0-9.0(kgf.cm) |
30-4800 |
/ |
±5% |
DC: 48V Power 200W |
||||
|
DP-SDL1800 （200W） |
3.0-18.0(kgf.cm) |
30-3000 |
/ |
±5% |
DC: 48V Power 350W |
||||
|
DP-SDL3600 （400W） |
10.0-36.0(kgf.cm) |
30-3000 |
/ |
±5% |
AC: 220V 500W transformer + rectifier bridge |
||||
Features
ApplicationS
Notebook computers,routers, glasses, cell phones, LCD monitors, watches, integrated board, 5C precision industries, network interface, navigator, TV, kettle, motor etc.
Company Advantage
• Minder Machine's location has a pleasant climate, abundant resources, and unique geographical advantages. Meanwhile, the traffic convenience is conducive to the circulation and transportation of products.
• Established in our company has built a production and research and development center with advanced technology and complete supporting facilities. Based on that, we are able to provide customers with more high-quality products.
• Minder Machine focuses on the cultivation of scientific and technological talents. At present, a team of experienced experts and elite personnel has been established to provide a strong guarantee for product development.
• Minder Machine's high-quality industrial machinery are an attraction to domestic and foreign customers.
Your contact is welcome. We have more discounts waiting for you!
