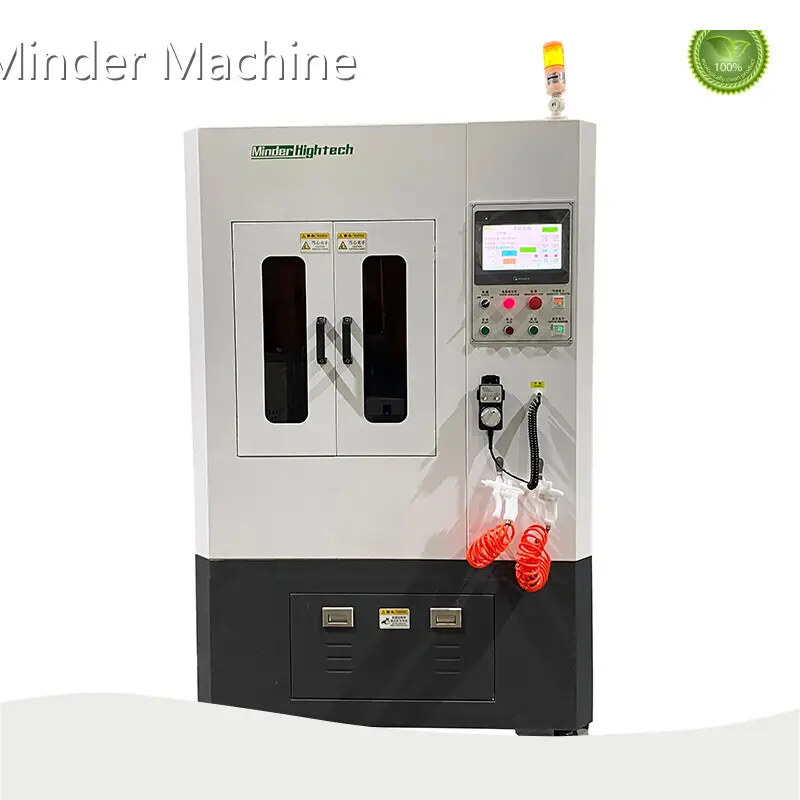

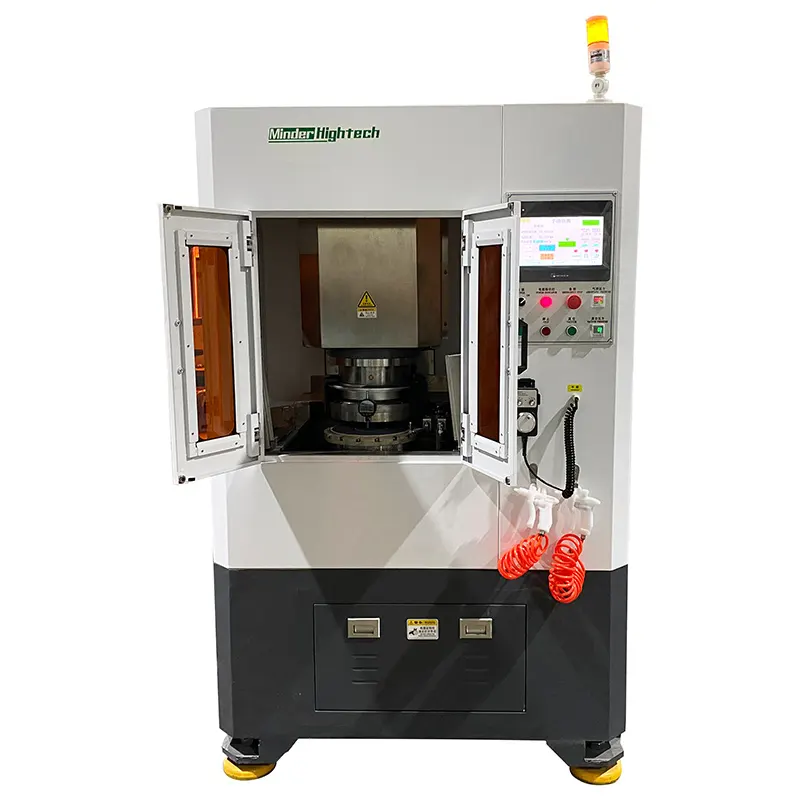

Precision Grinder Minder Machine Brand
Product details of the precision grinder
Product Introduction
Guangzhou Minder-Hightech Co.,ltd provides various custom-made precision grinder for your selection. Its quality competitiveness index has kept stabilized over the years. The product, highly recommended by users, has great market potential.
Product Introduction

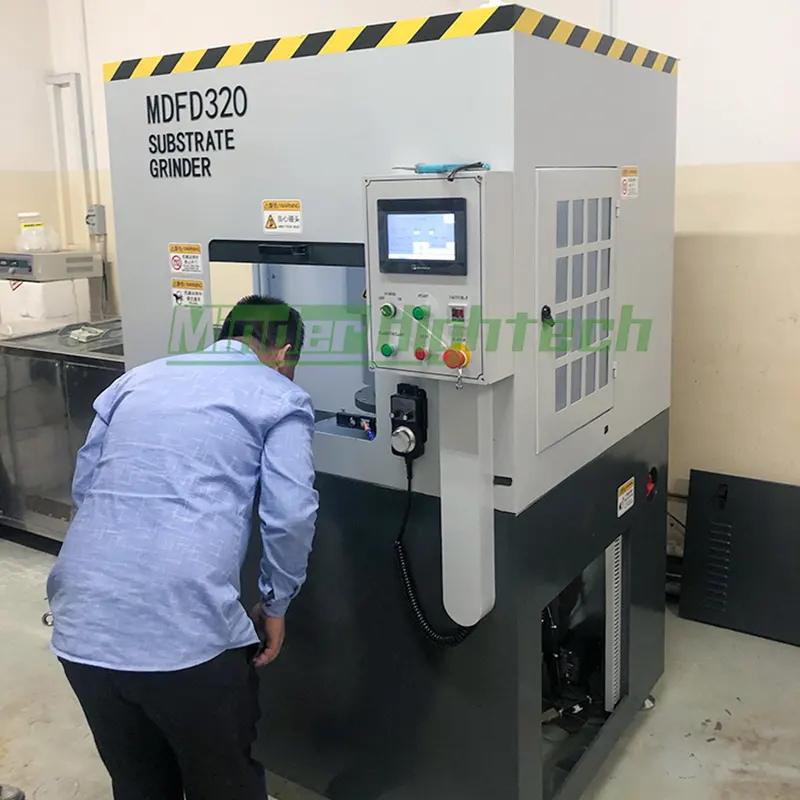

--- Substrate grinder
Related Parameters
|
Regular Specification |
|
|
Machine Series |
MDFD250HG |
|
Work Table Diameter |
Φ250 mm / 10 inches |
|
Maximum Grinding Diameter |
Φ250 mm |
|
Minimum Grinding Thickness |
T≥35μm （12” with carrier） |
|
Grinding Roughness |
Ra≤0.02μm (with abrasive of grains grits 2000) |
|
Feeding Resolution |
RES = 0.1 μm |
|
Grinding Feeding Speed |
0.1 ~ 10μm/sec (grinding feeding speed) |
|
Fast Feeding Speed |
0.01 ~ 1mm/sec (from origin point to pre-feeding position) |
|
No. of Worktable |
1 |
|
Wheel Rotate Speed |
0-3000 rpm |
|
Worktable Rotate Speed |
0-300 rpm |
|
Upper Spindle Power |
Electric Spindle 5.5kW |
|
Lower Spindle Power |
Electric Spindle 2.2kW |
|
Coolant Tank Volume |
75L |
|
Pulse Hand Wheel Resolution |
1×, 10×, 100× |
|
Pneumatic Source |
0.6-0.8MPa |
|
Total Weight |
1200 kg |
|
Dimension |
1150×1200×2000 mm |
|
|
|
|
Optional Choice |
Specification |
|
Non-Contact (Infrared) Thickness Gauge |
Brand: Marposs Resolution：0.1μm Measurement Precision: ≤0.5μm |
|
Contact Thickness Gauge |
Brand: Marposs Resolution：0.1μm Measurement Precision: ≤0.5μm |
|
(Upper Spindle) Aerostatic Graphite Electric Spindle |
Power: 5.5kW Spindle Balance：0.05μm（3000rpm) |
|
Grinding Wheel |
Grains Grits Size: 320 to 6000 Abrasive Material |
|
Process Type |
Sort by Process Material |
Sort by Application |
|
|
Substrate thinning |
Metals and alloys Industrial ceramics Oxidizing substances Carbonized substance glass plastic |
Semi Conductor |
Si, SiC, Ge, Ge-Si, GaN, GaAs, GaAsAl, GaAsP, InSb, InP, ZnO, AlN, Al2O3, etc. |
|
Resin |
PE, E/VAC, SBS, SBR, NBR, SR, BR, PR |
||
|
PCB |
Adhesive, coating, circuit |
||
|
Optical |
Optical lenses, optical reflectors, scintillation crystals, holographic projection glass, HUD glass, screen glass |
||
|
Radar |
Oxide skin plate |
||
Features
ApplicationS
Mainly used at silicon wafer, ceramic, glass, quartz crystal, sapphire, semiconductors precision thinning (grinding)
