Minder Machine Vacuum Packing Machine Manufacturer
Product details of the vacuum packing machine manufacturer
Quick Overview
To be a more competent company, Minder Machine also pays a lot of attention to the design of vacuum packing machine manufacturer structure. Its premium quality highly meets international standard specifications. The offered product is extensively used for customers in the industry.
Product Introduction
Next, Minder Machine will present you with the specific details of vacuum packing machine manufacturer.
Product Introduction

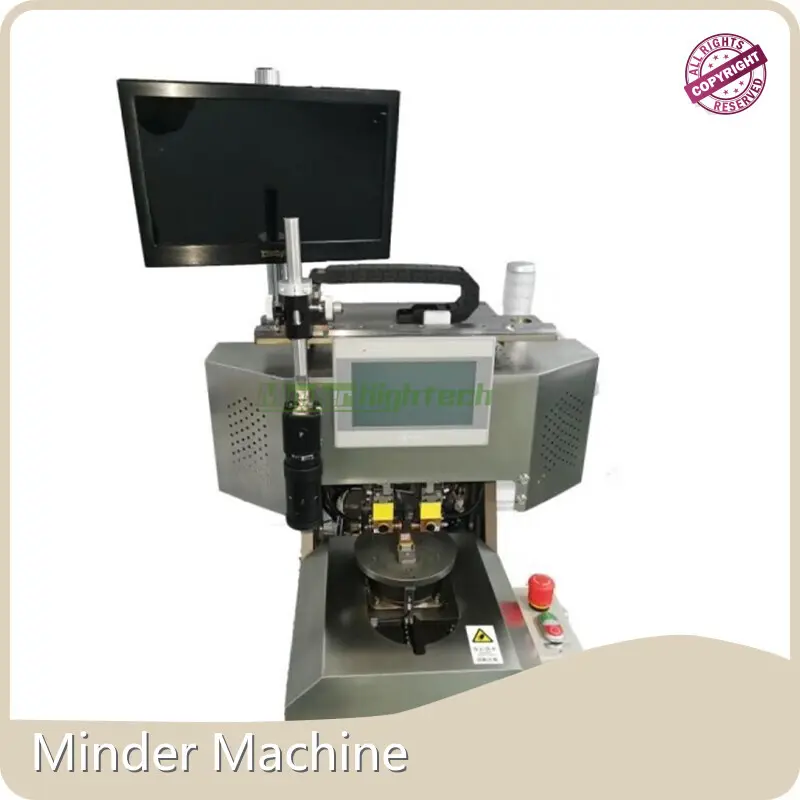

The semi-automatic parallel seam welding machine MD-100 produced by guangzhou MinderHightech is a shell and cap sealing equipment that integrates a parallel sealing machine and a glove box. Through vacuum baking and operation of the capping process in the glove box, the moisture and oxygen content in the shell can be reduced to meet the needs of high performance and high reliability.This equipment consists of parallel sealing machine and glove box. The sealing machine completes the capping process of the tube shell, and the glove box provides a process environment with low oxygen and low water vapor content for the capping process. The parallel seam welding machine is placed in the operation box of the glove box. After the material is baked in the vacuum oven, it is transferred from the inner door of the operation box to the operation box. After the capping process is completed, it is taken out through the exchange box.
Related Parameters
|
Welding parameters |
Maximum welding power |
6KW 220V 50/60Hz |
|
Welding speed |
0.1mm/s～30mm/s |
|
|
Welding pressure |
0～1500g |
|
|
Axis of motion |
Positioning accuracy of the motion axis |
0.02mm |
|
Rotation angle range of shell |
360° |
|
|
Welding tightness |
Meets the airtightness requirements of GJB548B-2005 "Microelectronics Test Methods and Procedures" |
|
|
ØGlove box technical indicators |
||
|
Operating cabinet |
Box size |
900mm( high)x 750mm(deep)x 1200mm(long) |
|
gloves: |
8-inch glove mouth, 0.4mm thick butyl gloves, hard aluminum alloy glove mouth (after anti-corrosion treatment), caliber 220mm. Number of gloves: 2 |
|
|
Can maintain a certain positive and negative pressure during use(-12mbar-12mbar) |
||
|
Box with automatic air supplement and flushing function, PLC intelligent control pressure |
||
|
Integrated humidity detection system (dew point test) |
||
|
Integrated oxygen content detection system (oxygen sensor detection) |
||
|
Automatic cleaning function: water and oxygen parameters can be set, and the cleaning function is automatically turned on according to the setting requirements |
||
|
Oven and transition chamber |
Oven (inner) size |
300mm(high)×300mm(width)×350mm(long) |
|
Tray: |
Three-layer work partition and four-layer temperature zone heating |
|
|
The PLC can realize the intelligent control of the periodic inflation, pumping and flushing of the heating system, and the supplementary gas comes from the inside of the box |
||
|
Heating method: |
heating plate heating, 4 layers |
|
|
Temperature control range: |
150℃ |
|
|
Temperature control accuracy: |
+/-2℃ |
|
|
Uniformity of temperature distribution: the temperature distribution difference is controlled at + / 5 ℃ |
||
Features
Parallel Seam Welding Machine
Company Introduction
Guangzhou Minder-Hightech Co.,ltd, located in guang zhou, is a modern enterprise integrating research and development, processing and sales. industrial machinery is our basic product. Our company adheres to the tenet of 'integrity-oriented, customer first', and follows the management concept of 'striving for high-quality and excellence'. At present, our company has a technical R&D team with rich experience, diligence and bravery. Based on the common goal of creating new miracles, we gather our wisdom to make new products, so as to lead our company's development. With a focus on customers, Minder Machine analyzes problems from the perspective of customers. And we provide customers with comprehensive, professional and excellent solutions.
Our products are of high quality and great safety. Besides, they are packed tightly and shockproof. Customers can rest assured to purchase our products and are warmly welcomed to contact us for details.
