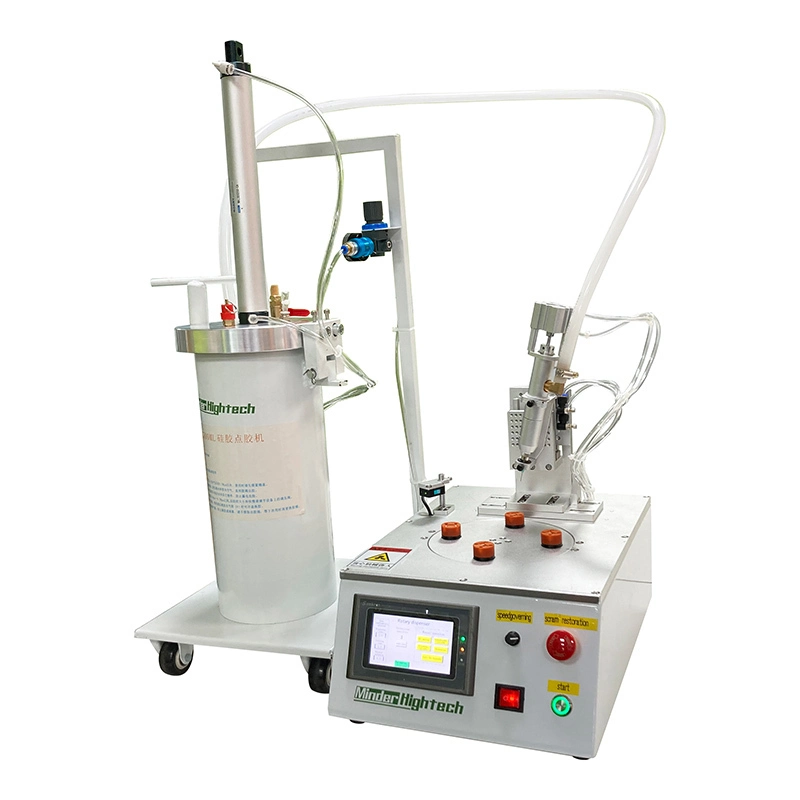

Minder Machine Robotic Dispensing Machine Suppliers 1

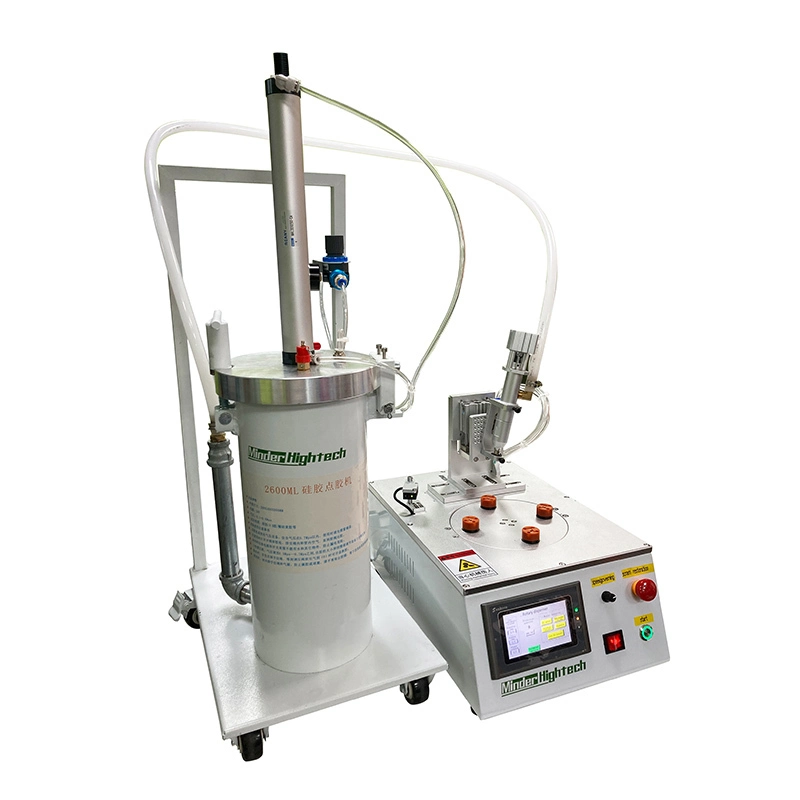

Minder Machine Robotic Dispensing Machine Suppliers 2

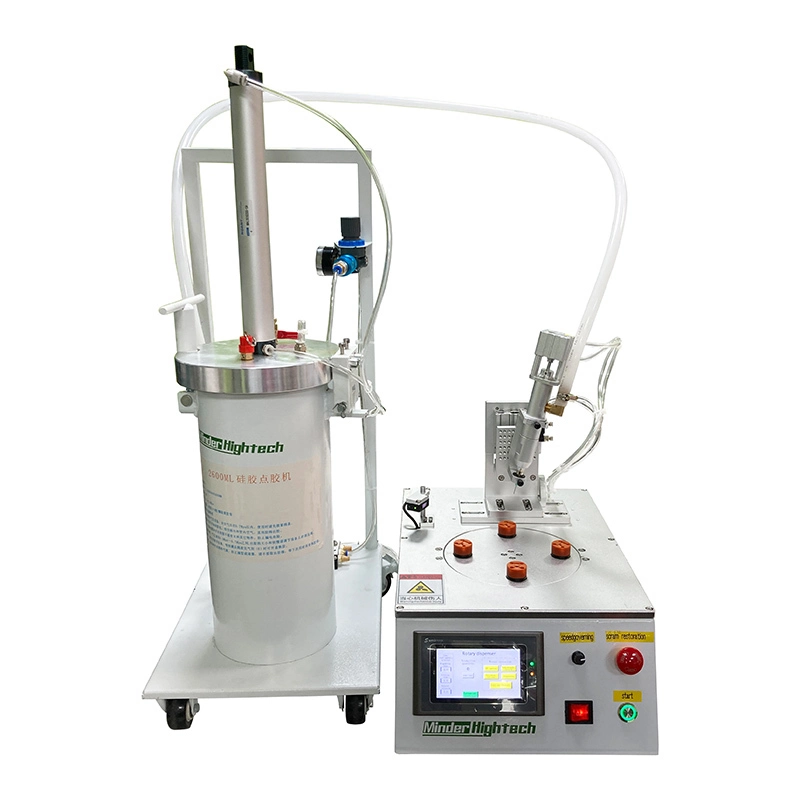

Minder Machine Robotic Dispensing Machine Suppliers 3

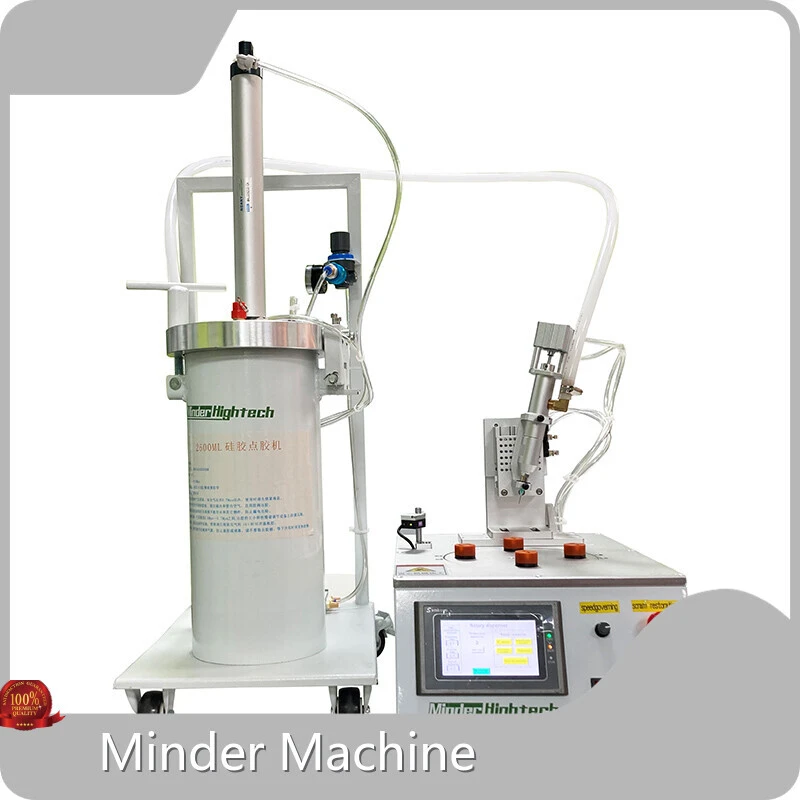

Minder Machine Robotic Dispensing Machine Suppliers 4

Minder Machine Robotic Dispensing Machine Suppliers

Inquiry

Product details of the robotic dispensing machine

Product Description

While manufacturing the Minder Machine robotic dispensing machine, we make use of superior grade raw materials. This product is examed on the international standards instead of the national rules. Guangzhou Minder-Hightech Co.,ltd can arrange different transportation ways according to your requirements.

Product Introduction

Assembly solution

-- Automatic Robot Glue Dispenser

--Circular Products Automatic Robot Glue Dispenser

Dispensing robot can dispensing any kind of glue automatically.

For colloids

Red plastic, yellow plastic, silver paste, UV curable plastic, lubricants, epoxy resin, fast curing plastic, silicone resin and other materials.

Related Parameters

Model NO	1-Station	2-Station	4-Station	8-Station
Max Dispensing Diameter	400mm	200mm	100mm	50mm
Suitable Material	300ml-330ml/2600ml package single-component silicone, thermal-conductive silicone grease, UV glue, AB glue etc.
MCU	Industrial PLC
Motor Speed	0 ~ 300 turns/min
Positioning Accuracy	±0.1mm
Driven Type	Electric+Air compressor
Input Air Pressure	0.4--0.8 M Pa Working Air Pressure: 0.4--0.6 M Pa
I/O Signal	4 inputs/ 4 outputs Control interface: RS232
Work temperature	0℃—40℃ Working humidity: 20%—90%
Max Load	Z-axis: 2KG
Moving speed	At regular time and fixed speed
Repeat accuracy	+/- 0.05mm
Motor Speed	0 ~ 300 turns/min
Display Mode	LCD, Display language is in Chinese or in English.
Program Memory	100 programs
Drive Motor	Precise Stepping Motor
Product capture	Sensor auto capture
Operating Mode	Circle
Power supply	AC100V-110V, 60Hz AC220V-240V, 50Hz, 50W
Dimensions	Machine:543946cm tank:493687cm
Weight	Machine:14.2kg tank:25.5kg

Function and characteristics

Four work stations in cycle, the designed capacity is 1000~1500pcs/h.

Equipped work piece detector to decide gluing or skip.

Gluing track can be set as full circle, single point or segmented arc etc.

Working mode can be eight-station, four-station or one-station.

Operating mode: Four rotating stations are separated evenly by 90 degree on the orbit round disc. Orbit motor rotate 90 degree each time to bring the product to the gluing nozzle one by one and the self-rotating motor drives the product rotate in average speed via wheel gear occlusion to realize even gluing coating.

It is easy to learn and operate with touch screen and buttons, for different glue with different settings ensure the best performance.

The machine is made of Metal+al Alloy, high quality motor. The overall nice, anti-corrosion, easy clearing, durable and long life.

Automatic: automatic operation, air operation, single step operation.

Manual: Positive and negative motor, back to the program zero, back to mechanical zero, output control.

Product use

Speakers, sound film, buzzer, bearings, micro-motors, watches, voice coil, bald, such as circular glue operation.
