Minder Machine New Automatic Screw Machine Factory
Product details of the automatic screw machine
Product Information
Guangzhou Minder-Hightech Co.,ltd adopts advanced production technology during the process of manufacturing automatic screw machine. The product is examined on set industry standards to make sure that it is free from flaws. Guangzhou Minder-Hightech Co.,ltd's product structure is reasonable and its categories are complete.
Product Introduction

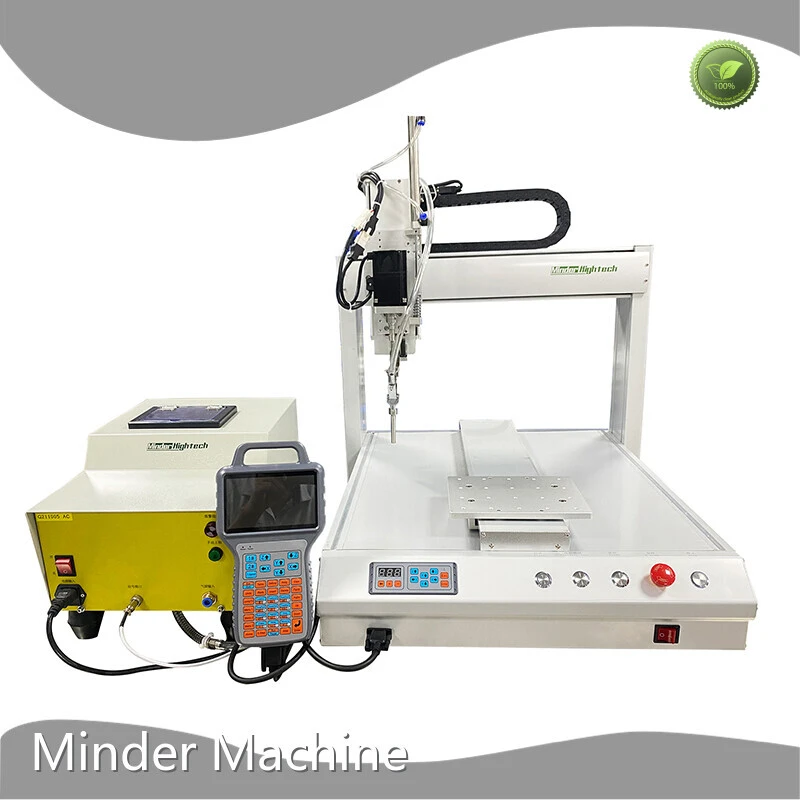

--- Assembly solution--- Servo type Screw fastening robot single Y air blow type Robotic screw fastening system can increase throughput on a variety of assembly application
Related Parameters
|
Model |
MD-DL- T4411CQ |
MD-DL- T5511CQ |
MD-DL- T53311CQ |
MD-DL- T54411CQ |
MD-DL- T6441CQ |
||||
|
Stroke X |
400mm |
500mm |
500mm |
500mm |
600mm |
||||
|
Stroke Y1 |
400mm |
500mm |
300mm |
400mm |
400mm |
||||
|
Stroke Y2 |
no |
no |
300mm |
400mm |
400mm |
||||
|
Stroke Z |
100mm |
100mm |
100mm |
100mm |
100mm |
||||
|
Material size |
400*300 |
500*500 |
170*300 |
170*400 |
210*400 |
||||
|
Rated speed |
500mm/s(X-Y-Z)Max1000mm/s |
||||||||
|
Screwing No. |
Default 1 PC(optional2PCS) |
||||||||
|
Drive |
Precision stepping motor/servo motor+synchronous belt/ball screw |
||||||||
|
Motion mode |
Point to point; line circle |
||||||||
|
Positioning accuracy |
+-0.02(mm) |
||||||||
|
Program |
Control Teaching Box/PC |
||||||||
|
Screw feed mode |
air blow |
||||||||
|
Screw feed speed |
60PCS/Min |
||||||||
|
Screw driver |
SDL series Servo motor screw driver(optional others) |
||||||||
|
External |
RS232 |
||||||||
|
Screw size |
M1.0-M5.0 |
||||||||
|
Screw length |
4-16mm |
||||||||
|
Torque range |
0.03-45kgf.cm |
||||||||
|
Lock speed |
1.5s/ PCS |
||||||||
|
Program storage |
100groups/1000points per group |
||||||||
|
Power |
2*220V50Hz |
||||||||
|
Air |
0.5Mpa |
||||||||
|
Driver model |
Applicable torque |
Speed (rpm) |
Reduction ratio |
Torque accuracy |
Voltage (v) |
||||
|
DP-SDL900 （100W） |
1.0-9.0(kgf.cm) |
30-4800 |
/ |
±5% |
DC: 48V Power 200W |
||||
|
DP-SDL1800 （200W） |
3.0-18.0(kgf.cm) |
30-3000 |
/ |
±5% |
DC: 48V Power 350W |
||||
|
DP-SDL3600 （400W） |
10.0-36.0(kgf.cm) |
30-3000 |
/ |
±5% |
AC: 220V 500W transformer + rectifier bridge |
||||
Features
ApplicationS
Notebook computers,routers, glasses, cell phones, LCD monitors, watches, integrated board, 5C precision industries, network interface, navigator, TV, kettle, motor etc.
Company Feature
• Close to the customer's needs, our company takes innovation to create a reasonable service plan for customers. Thus, we can build a harmonious relationship with customers, and create a better service experience for customers.
• Our company actively explores product sales channels and establishes a sound marketing network. Our products are not only sold to many provinces and cities in China, but also exported to East Asia and South Asia.
• Minder Machine's location enjoys traffic convenience with multiple traffic lines passing through. This is conducive to the outward transportation and is the guarantee of timely supply of products.
• We have the professional research and development team and experienced technical personnel, which provides a powerful force for the production of high quality products.
Is there a light catches your attention? Please contact Minder Machine to place orders!
