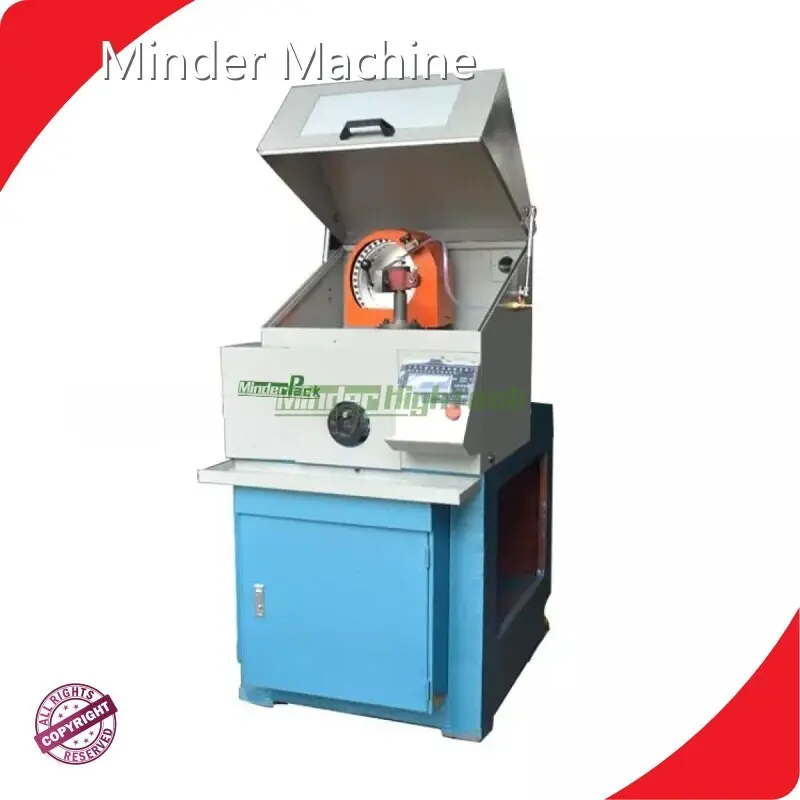

Minder Machine Inner Diameter Slicer Brand Custom
Product Introduction
--- Inner diameter circle slicer
Related Parameters
|
Max machining size(mm) |
φ60 ×80mm |
|
Cutting speed (㎝²/㎜) |
3-6(㎝²／㎜) |
|
Degree of balance sheets by cutting deviation(mm) |
±0.005㎜ |
|
Cutting film thickness(mm) |
≥0.30 |
|
The thin-cut tolerance (mm) |
±０.015㎜ |
|
Horizontal stroke(mm) |
120㎜ |
|
Longitudinal travel(mm) |
100㎜ |
|
Longitudinal degrees |
0-100Grid, each grid To 0.01,Each turn a lap in order to1㎜ |
|
Spindle Electrical |
3 Phase 380V0.75kw |
|
Spindle Speed (r/min) |
3500Rev /min |
|
Adjust the amount of work table |
|
|
Horizontal angle |
±45º |
|
Pitch angle of elevation |
±10º |
|
Vertically(mm) |
24 |
|
Cooling tank capacity(kg) |
50kg |
|
Cooling tank motor |
3 Phase 380V 0.12kw 2780r/min |
|
Power |
Three-phase four-wire 50Hz 380V |
|
Dimensions(mm) |
1000 ×1100 ×1600 |
|
Weight(kg) |
~1000(kg) |
Features
Inner circle fully automatic slicing machine is using inside circle to cut a variety of semiconductors, crystal, ceramic, NdFeB magnetic material. Installed in the spindle, the edge-type Diamond blade cutter is high-speed rotating, the table was feeding by computer control of horizontal and vertical movement, the material on the fixture of the table was cut into the required product.We have the semi-automatic/fully automatic inner circle clicking machine, within a circle slicer two kinds of specifications, a variety of models. For the Automatic Slicer inner circle. a worker can operate about 16 units slicer at the same time
Company Advantages
· The choice of materials for Minder Machine inner diameter slicer is rigorous. From the sourced sheet materials, panels, and table boards, to the hardware accessories, all of those are thoughtfully chosen.
· The product features position precision. It is designed with automatic control function which can achieve high precision positioning control and self-adaptation control.
· Its benefits of reducing costs and maximizing profits have encouraged many manufacturers in the industry to adopt this product in production.
Company Features
· Minder Machine has a lot of influence on the finest inner diameter slicer production.
· Our technicians have been always devoted themselves into developing and designing inner diameter slicer.
· We stick to sustainable development. We ensure proper sustainable management by reducing wastes generated and reuse materials as possible.
Application of the Product
Minder Machine's inner diameter slicer can be widely used in various fields.
Minder Machine has an excellent team consisting of R&D, production, operation and management. According to actual needs of different customers, we could provide customers with practical solutions.
