Product details of the ic machine
Product Description
To catch up with the fashion trends in market, ic machine is designed in a very fashionable way. Products are tested by our quality experts in strict accordance with a series of parameters to ensure the quality and performance. The large investment into ic machine production turns out to be effective.
Product Introduction

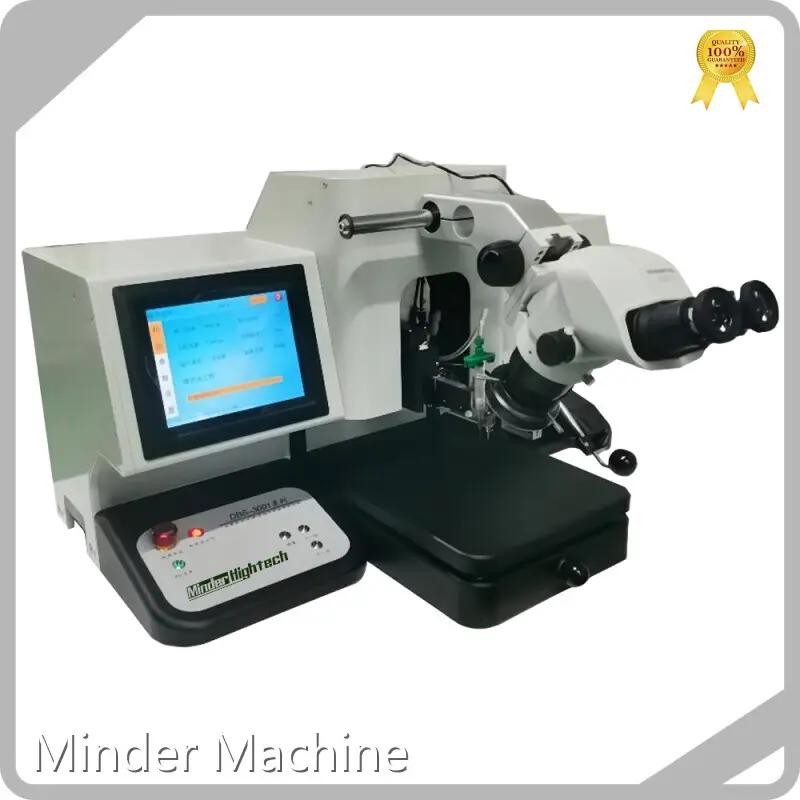

---- Manual Epoxy die bonder
There are maintenance stations (points) in China, all necessary spare parts are stored, and a supply period of more than 10 years is guaranteed
More than 5 years of domestic technical service experience on similar equipment.
1 year warranty, after the warranty period, we will continue to provide equipment maintenance service once a year for no less than two years
Respond within 12 hours, arrive at the scene within 72 hours.
Related Parameters
|
Function: |

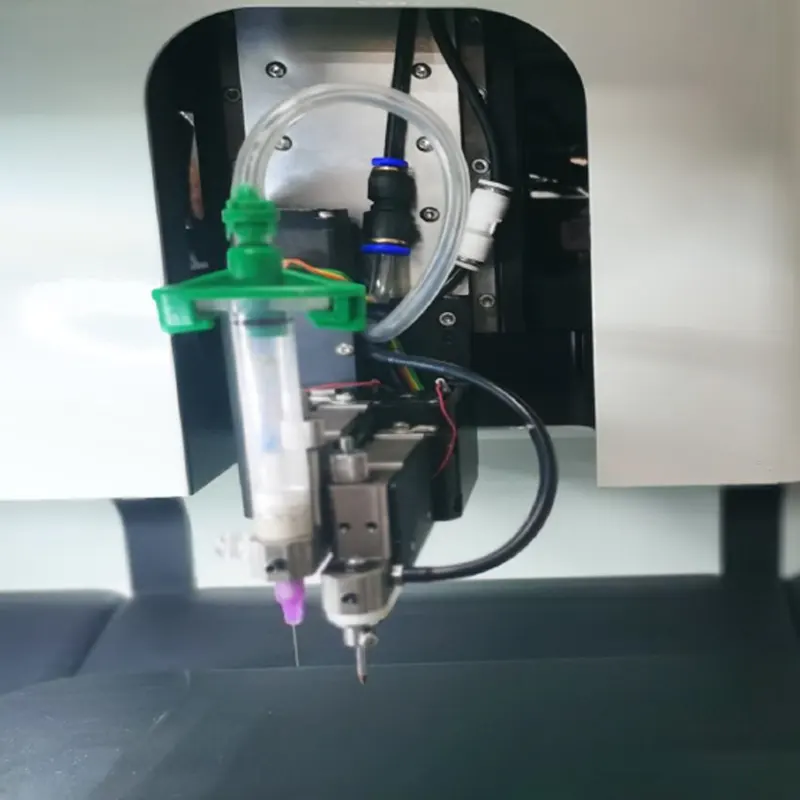

Automatic scribing, dispensing, sticking |
|
Bonded Chip Size: |
0.2-25mm |
|
Adhesive pressure: |
10-150g |
|
Lifting table size: |
X-Y:250*270mm Z:18m |
|
Control platform effective travel: |
X-Y:10mm*10mm Z:25mm |
|
Motion Control Platform Accuracy: |
0.2um |
|
Nozzle rotates 360° |
|
|
Chinese self-naming parameter file name storage, easy to remember |
|
|
With automatic height detection function |
|
|
Later upgradeable epoxy eutectic machine |
|
Product maintenance
|
Parameters |
|
|
power supply: |
AC220V±10%，50-60HZ，≤400W |
|
Compressed air>=0.5MPa |
Vacuum pipeline <-0.08MPa |
|
External dimensions: |
800*380*450mm |
|
weight: |
70KG |
|
stable workbench keep away from vibration sources |
|
