The role of plasma cleaning

The principle of plasma cleaning is mainly：

Etching on the surface of materials - physical effects

A large number of active particles in the plasma, such as a large number of ions, excited molecules, and free radicals, act on the surface of the solid sample, which not only removes the original contaminants and impurities, but also produces an etching effect to roughen the surface of the sample. Many fine pits are formed, increasing the surface ratio of the sample. Improve the wetting properties of solid surfaces.

Activation bond energy, cross-linking

The energy of the particles in the plasma is between 0-20 eV, and most of the bonds in the polymer are between 0-10 eV.

When a solid surface is used, the original chemical bond on the solid surface can be broken, and the free radicals in the plasma and these bonds

The formation of a network of crosslinked structures greatly activates surface activity.

Forming new functional groups - chemistry

If a reactive gas is introduced into the discharge gas, a complicated chemical reaction occurs on the surface of the activated material, and new functional groups such as a hydrocarbon group, an amino group, a carboxyl group, and the like are introduced, and these functional groups are all active groups, which can significantly improve the surface activity of the material.

Advantages of vacuum plasma cleaning

Plasma cleaning is an important material surface modification method and has been widely used in many fields.

And some traditional cleaning methods, such as ultrasonic cleaning, UV cleaning, etc., have the following advantages：

Low processing temperature

The processing temperature can be as low as 80 ° C - 50 ° C. Low processing temperatures ensure no thermal effects on the sample surface.

No pollution during the whole process

The plasma cleaner itself is a very environmentally friendly device that does not cause any pollution, and does not cause any pollution during the treatment process.

Stable processing effect

The treatment effect of plasma cleaning is very uniform and stable, and the effect of maintaining the sample after a long period of time is good.

 Can handle samples of various shapes

For complex shaped samples, plasma cleaning can find the right solution.

Vacuum plasma cleaning allows for the cleaning of the internal position of the solid sample.

Product principle

The structure of the plasma cleaning machine is mainly divided into three major components, namely high-voltage excitation power supply, plasma generator spray gun, and control system.

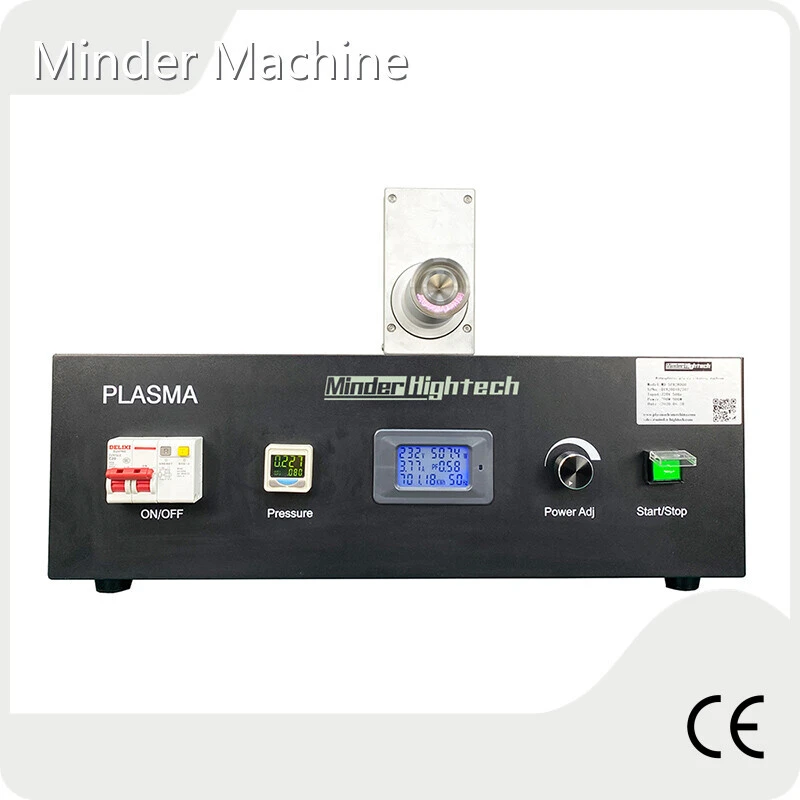

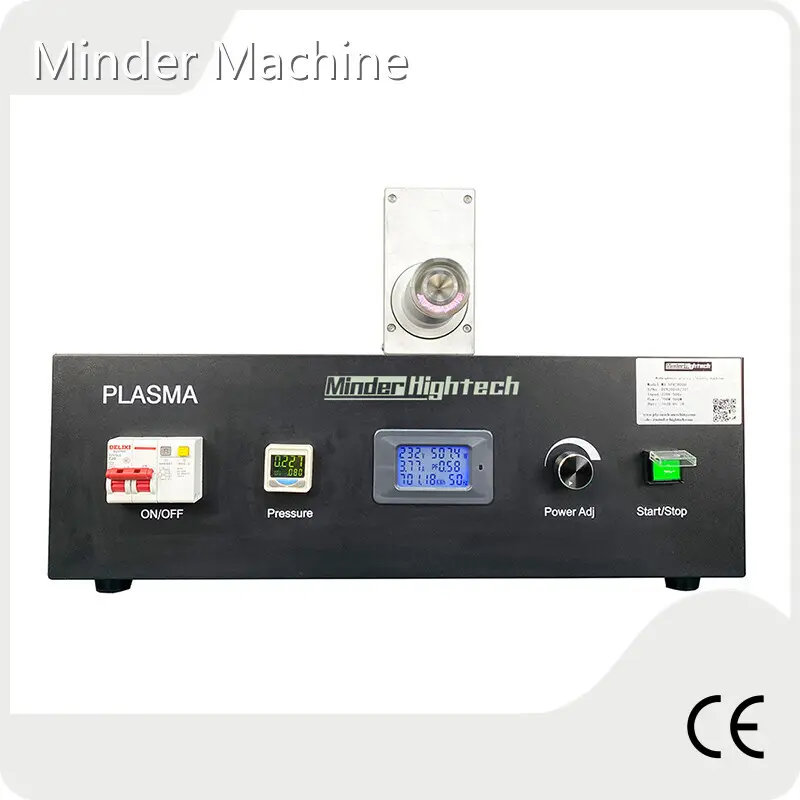

High voltage excitation power supply

The generation of plasma requires high-voltage excitation, and the atmospheric low- temperature plasma is excited by an intermediate frequency power supply at a frequency of 10-40 kHz. The high voltage is at 4-10KV. The parameters can be adjusted according to the actual conditions of the sample, and the optimal modification effect has been achieved.

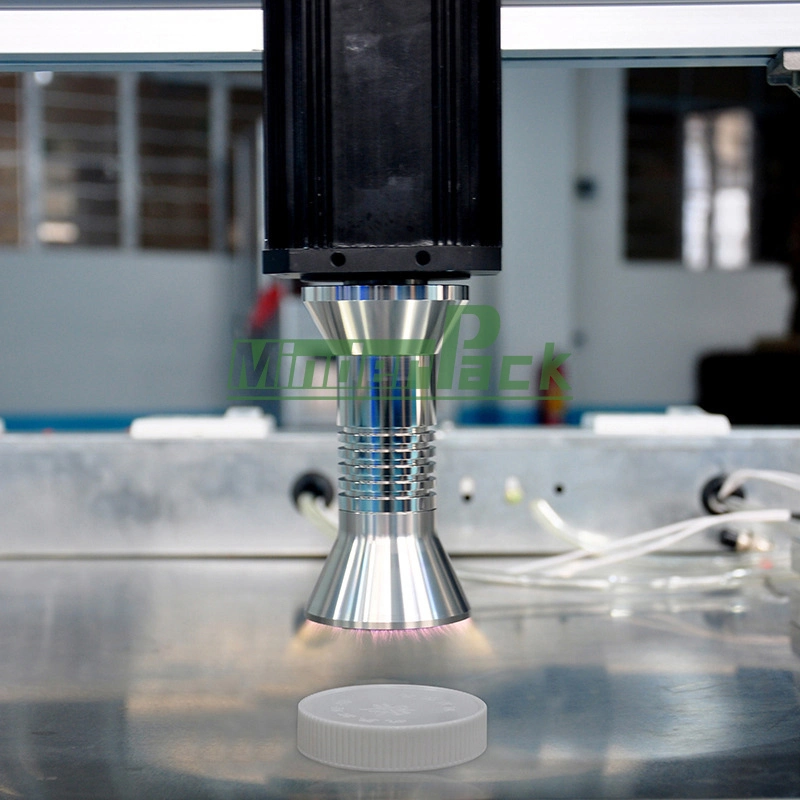

Plasma generator spray gun

The atmospheric low-temperature plasma generator spray gun can be divided into two types: jet direct injection and rotary direct injection. The difference is that the treatment area is different.

Control syste m

The control system functions to control the operation of the entire atmospheric low temperature plasma cleaning equipment and the protection of the overall system.
