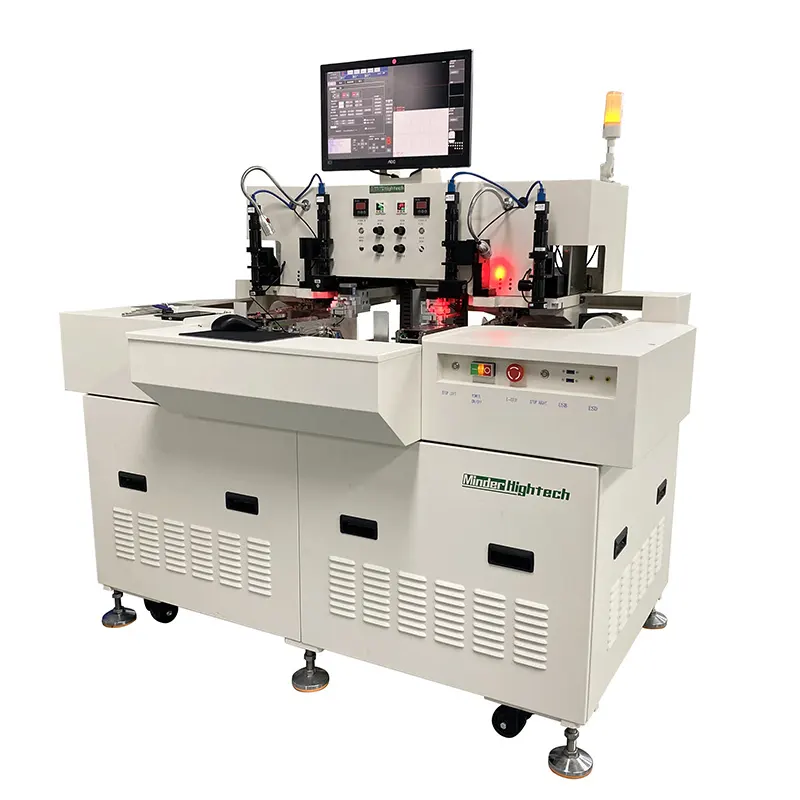

--- MDAX64DI-25-3 Planar Dual head high-speed Die Bonder

Applicable to SMD2020 1010 2121 2835 5730, filament, etc

Related Parameters

System Function	Production Cycle	≥40ms Speed Depends On Chip Size And Bracket Size
	Die Placement Accuracy	±25um
	Chip Rotation	±3°
Wafer Stage	Chip Size	3.5mi1×3.5mi1-80milx80mil
	Support Specification	L(L):120-200mm W(W):50-90mm
	Chip Maximum Angle Correction	±180°(Optional)
	Maximum Chip Ring Size/Max. Die Ring Size	6"
	Maximum Chip Area Size	4.7"
	Rerolution	1μm
	Height Stroke Of Ejector	3mm
Image Recognition System	Gray Scale	256Grayscale
	Resolving Power	752×480pixel
	Image Recognition Accuracy	±0.025mil@50mil Observation Range
Suction Swinging Arm System	Die Bonding Swing Arm	90 ° Rotatable
Suction Swinging Arm System	Picking Up Pressure	Adjustable 20g-250g
Die Bonding Work Table	Travel Range	75mm*175mm
Die Bonding Work Table	Xy Resolving Resolution	0.5μm
Leadframe Support Size	Support Length	120m~170mm(Customized If The Length Is Less Than 80~120mm Of The Support)
Leadframe Support Size	Support Width	40mm~75m(30~40mm Lower Than The Width Of The Support, Customized)
Required Facilities	Voltage/Frequency	220V Ac±5%/50Hz
	Compressed Air	0.5Mpa (Min)
	Rated Power	950Va
	Air Consumption/Gas Consumption	5L/Min
Volume And Weight	L x W x H	135×90×175cm
Volume And Weight	Weight	1200kg

Features

Independent double head die bonding, double stamp arm, double wafer search design, stable and reliable；

90 degree direct connection high-precision servo Bonding head；

Adjustable constant temperature direct connection high-precision stamp head；

Linear motor wafer table and die bonding working table；

Vacuum die missing detection;

Automatic loading and unloading system is adopted to reduce refueling time；

Visual quality inspection system, such as glue quantity detection, anti dazzle detection, post die bonding detection, etc；

Simple visual operation interface simplifies the operation of automation equipment
