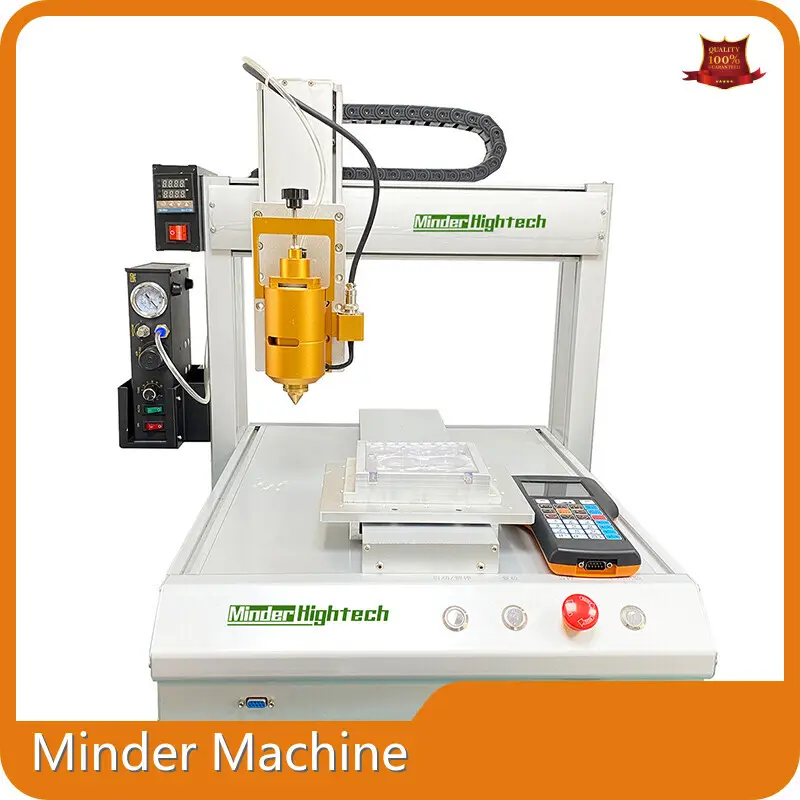

Minder Machine Benchtop Dispensing Robot /
Product details of the benchtop dispensing robot
Product Introduction
Adopted from raw materials, benchtop dispensing robot is friendly in use. The product depends on the scientific production method for higher stability and economic efficiency. Due to its remarkable economic return, the product is now widely used in the market.
Product Introduction
The hot melt glue dispenser series multi-function glue machine has the function of complete functions, uniform glue, simple operation, etc. The glue can be adjusted freely. It is suitable for the application of round objects in various types of assembly lines. It is an essential equipment for clothing,bulbs, pots, solar energy, circular industrial products, and electro-acoustic components. The machine control uses a single-chip CMOS integrated circuit and an advanced, highly reliable and non-contact thyristor as the control system. It has the characteristics of fast switching speed, high working frequency, long life and no noise operation. The selected components of the machine are carefully screened, all of which are made of high quality components, which can work continuously for a long time. The dispenser is an automated machine that specifically controls the fluid and drops or coats the fluid onto the surface of the product or inside the product. The machine is mainly used for glue, paint and other liquids in the product process, precise point, injection, coating, dripping to the precise position of each product, to achieve dot, line, round or arc.
Related Parameters
|
Model |
MD-DH-T3311 |
MD-DH- T4411 |
MD-DH-T5511 |
MD-DH-T53311 |
MD-DH-T54411 |
|
Stroke X |
300mm |
400mm |
500mm |
500mm |
500mm |
|
Stroke Y1 |
300mm |
400mm |
500mm |
300mm |
400mm |
|
Stroke Y2 |
no |
no |
no |
300mm |
400mm |
|
Stroke Z |
100mm |
100mm |
100mm |
100mm |
100mm |
|
Rotary R axis |
No R axis(optional with R axis customized) |
||||
|
Rated speed |
500mm/s (X-Y-Z) ,Max:1000mm/s |
||||
|
Syringe needle |
Default 1 PCs (optional 2 PCS) |
||||
|
Glue thickness |
0.3-1.6mm |
||||
|
Temperature |
normal—200℃ |
||||
|
Heating |
150w, 30 second to 200℃ |
||||
|
Drive |
Precision stepping motor/servo motor+synchronous belt/ball screw |
||||
|
Motion mode |
Point to point; line; circle |
||||
|
Positioning Accuracy |
+- 0.02(mm) |
||||
|
Program |
Control Teaching Box/PC |
||||
|
External |
RS232 |
||||
|
Program storage |
100groups/1000points per group（computer） |
||||
|
Power |
3*220V50/60Hz |
||||
|
Air |
0.5Mpa |
||||
Features
ApplicationS
UV glue, COB black glue, white glue, EMI conductive glue, silicon, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative.
