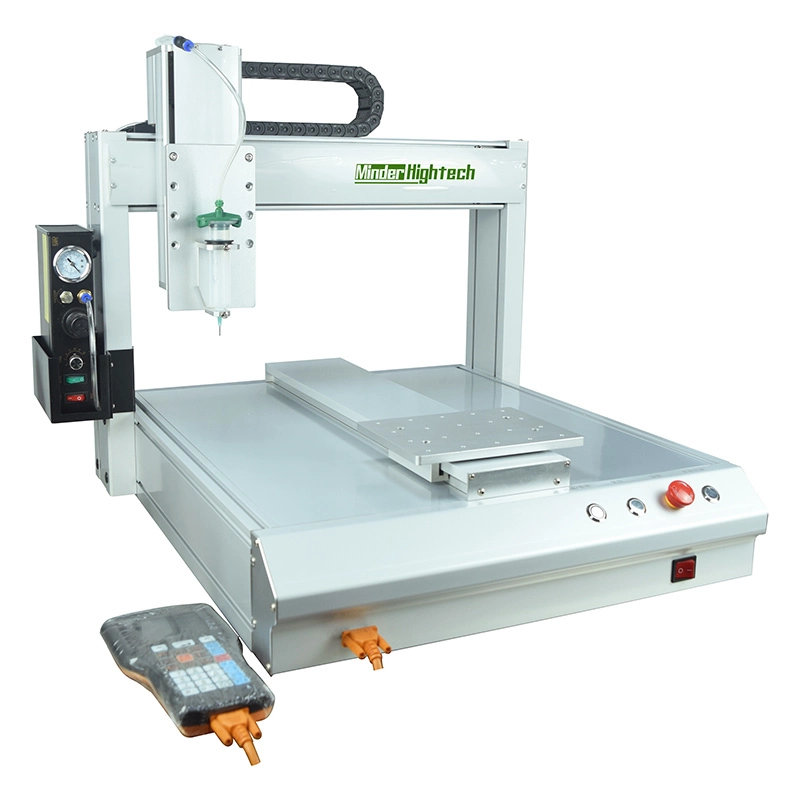

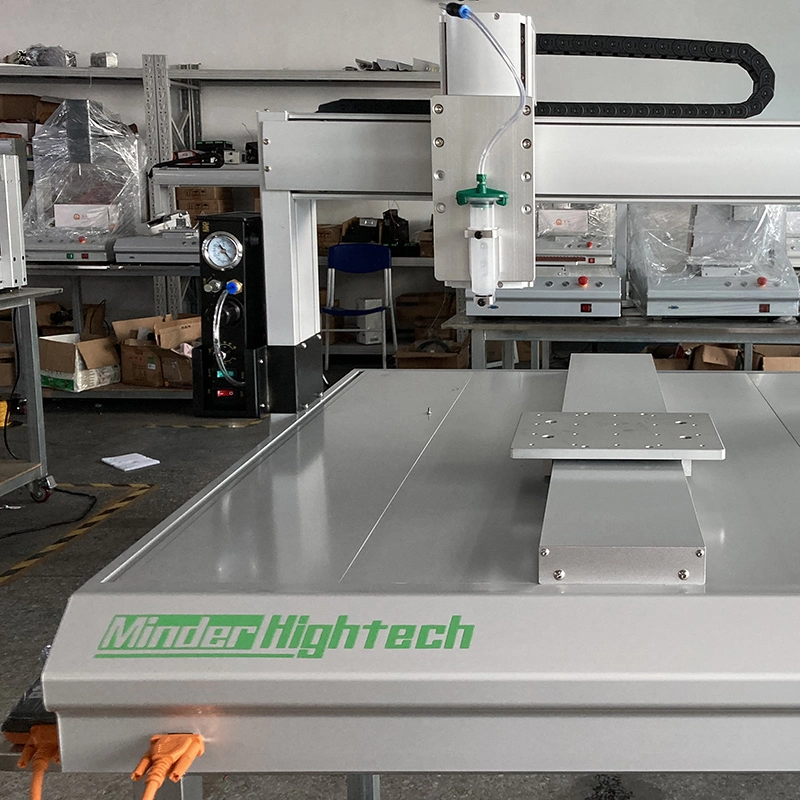

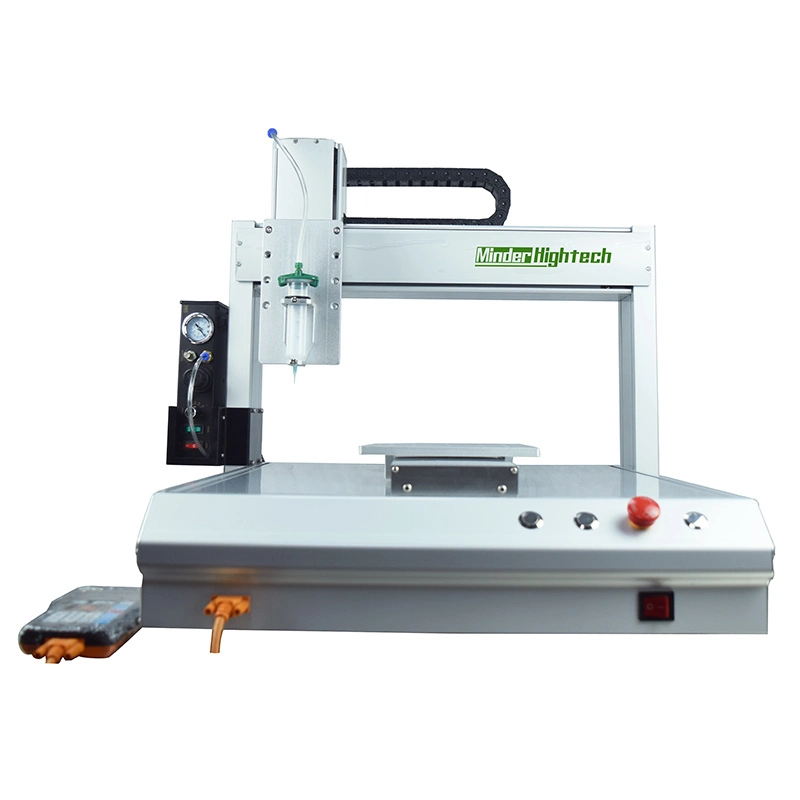

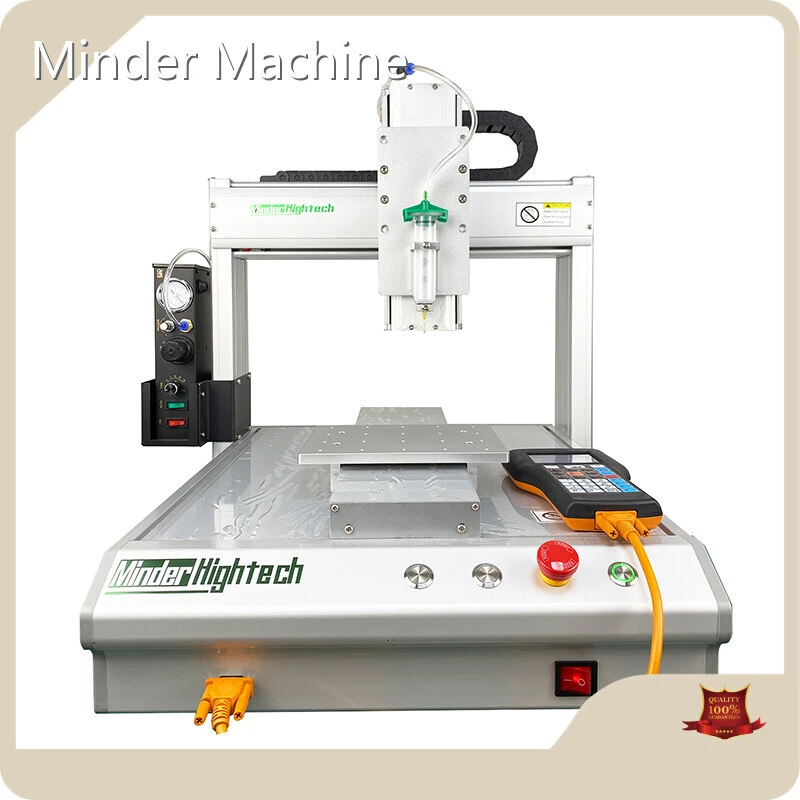

Minder Machine Automated Dispensing Robot
Product details of the automated dispensing robot
Product Introduction
The raw materials of Minder Machine automated dispensing robot are procured and selected from reliable vendors in the industry. This product has good durability and is suitable for long-term use and storage. Its features highlight the broad space of its application.
Product Introduction
Assembly solution
--- Dispensing robot
--- Desktop Robotic Screw Fastening robot
Dispensing robot can dispensing any kind of glue automatically. Syringe type dispenser
This equipment is suitable for high efficiency, high running precision and production process of dispensing. Generally suitable for products with sensors, relays, power adapters, electronic toys, sounders, electronic components, household appliances, electric vehicle controllers, computer digital products, crafts, mobile phone boards, coil products, button products,battery boxes, speakers Dot glue bonding; speaker packaging and dispensing, optical semiconductor, mobile phone battery, laptop battery packaging, PCB board bonding, COB, IC, PDA, LCD sealing, IC packaging, IC bonding, chassis bonding, Optical device processing, hardware parts package coating, quantitative liquid filling, chip bonding, automotive mechanical parts coating,mechanical seals, etc.
Related Parameters
|
Model Limit size (700 * 700mm) |
MD-DD-T3311 |
MD-DD-T4411 |
MD-DD-T5511 |
MD-DD-T53311 |
|
|
Stroke X |
300mm |
400mm |
500mm |
500mm |
|
|
Stroke Y1 |
300mm |
400mm |
500mm |
300mm |
|
|
Stroke Y2 |
no |
no |
no |
300mm |
|
|
Stroke Z |
100mm |
100mm |
100mm |
100mm |
|
|
Dispensing cylinder |
3CC/5CC/10CC/ 30CC/55CC/ 100CC/200CC/ 300CC/500CC |
||||
|
Min discharge |
0.01ML |
||||
|
The glue frequency |
5 times/sec |
||||
|
Environmental requirements |
Temperature: 5℃-40℃, Humidity: 20%-90% |
||||
|
Max Load |
Synchronous belt: 8kg/3kg, Precision guide way: 8kg/3kg |
||||
|
Transmission mode |
stepping motor (customized servo motor) |
||||
|
Dispensing head |
Plastic needle/ TT needle |
||||
|
Moving method |
point to point /linear/ circle |
||||
|
Programing interface |
teaching box/PC |
||||
|
Position accuracy |
+-0.01mm |
||||
|
Repeat accuracy |
+-0.01mm |
||||
|
Speed |
0.1-800mm/sec |
||||
|
Available Graph |
line/circle/arc/continuous line/3d irregularity line |
||||
|
Program storage |
100groups/1000points per group |
||||
|
Port |
RS232 |
||||
|
Drive mode |
Guide |
Taiwan HIWIN guide rail |
|||
|
Wire road |
HIWIN screw rod |
||||
|
Belt |
Italy Lartey synchronous belt |
||||
|
Power |
AC 110V-220V/50/60Hz |
||||
|
Air |
0.5Mpa |
||||

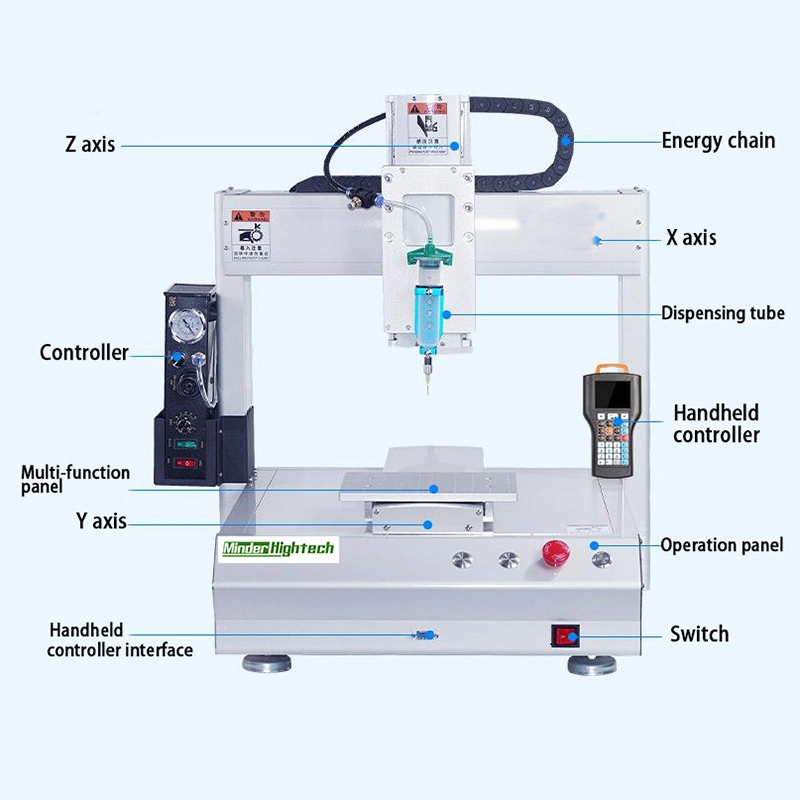

Features
ApplicationS
UV glue, AB glue, EPOXY(black glue), COB black glue,white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...
Company Feature
• Guided by the customers, we perfect service from small things and meet their requirements for high quality products. Besides, we are doing our best to provide high quality products and high standards of service for the public.
• Minder Machine has experienced R&D, production and testing teams, which can meet the requirements of customers.
• Minder Machine's location enjoys traffic convenience and has complete infrastructures around. All these provide good conditions for our company's rapid development.
If you have any questions, please feel free to consult Minder Machine.
