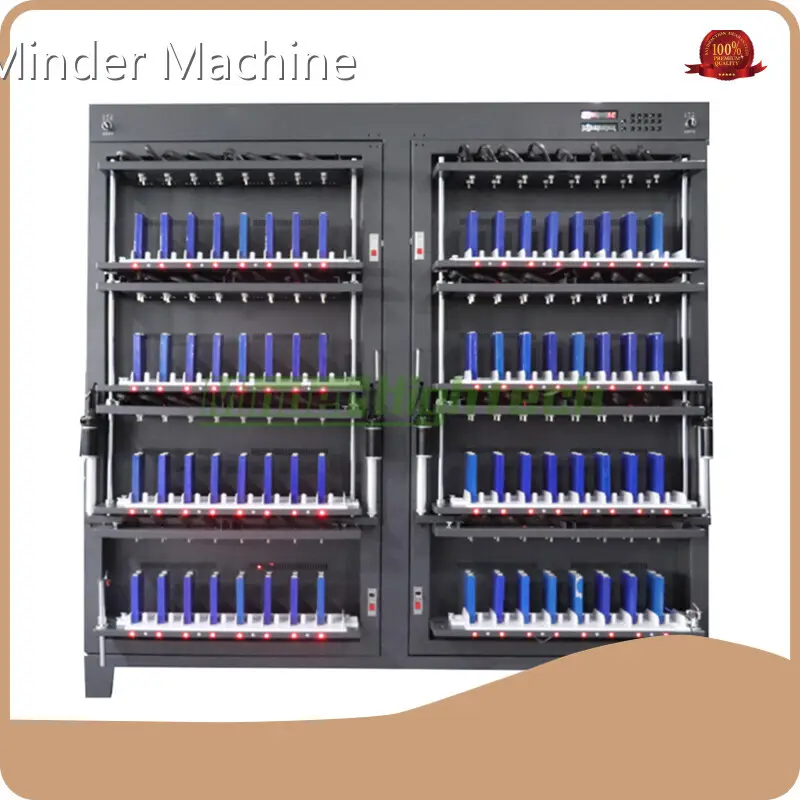

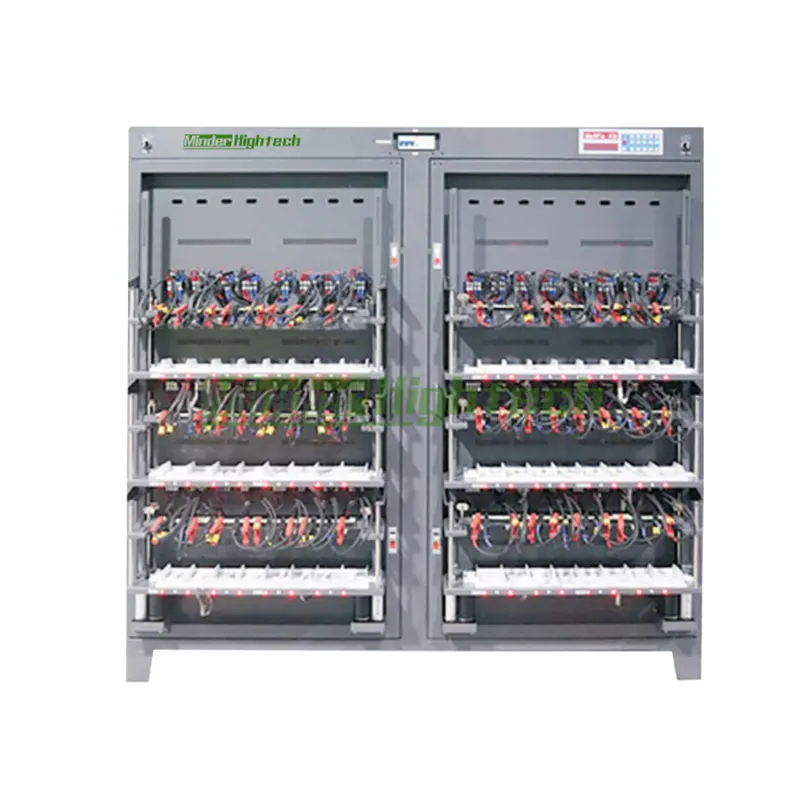

Lithium Ion Battery Testing Equipment Minder Machine Brand Lithium Ion Battery Testing Equipment
Product details of the lithium ion battery testing equipment
Product Information
lithium ion battery testing equipment is not only functional, but also has colourful and eye-catching styles. The performance and quality of the product is stable and reliable. The product is available in varied designs to suit the variant demands of customers.
Product Introduction
Product stability: Single-point independent constant current and constant voltage power supply, complete protection functions, stable operation, selected materials, fine craftsmanship, higher service life than peers, and fast inspection speed.
Technical excellence: The feeder-type energy-saving mode design is adopted, which has high energy-saving efficiency, flexibility, and humanized intelligent operation. The product linearity, accuracy and speed have reached high standards, and the maintenance and upgrades are good for expansion.
Accuracy: Each battery fixture is designed with the internationally popular four-wire principle, which avoids the superimposition of the internal resistance of the tester on the internal resistance of the battery and makes the test results more accurate.
Related Parameters
|
Model |
MDSC- S16-64-30 |
MDSC- S15-64-30 |
MDSC- S16-94-20 |
|
Device Channel Number |
The whole machine has 64 channels |
The whole machine has 64 channels |
The whole machine has 512 channels |
|
Dimensions |
1895mm×900mm×1840mm |
1680mm×930mm×1840mm |
1850mm×900mm×1840mm |
|
Chassis Color |
Standard beige (customizable) |
||
|
Fixture Form |
Push Down |

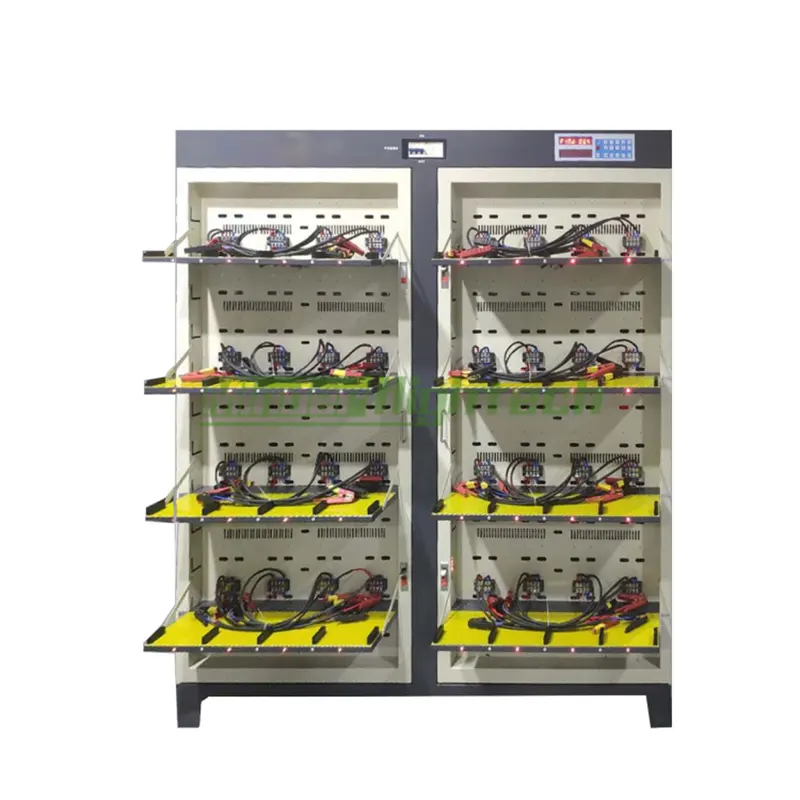

Terminal Block + Alligator Clip |
Push Down |
|
Fixture Spacing |
40-155mm |
150mm |
40-155mm |
|
Support Battery Specifications |
Square, height 110-220mm, thickness 15-75mm, width 65-220mm |
Polymer battery, square battery (with tabs) |
Square, height 110-220mm, thickness 15-75mm, width 65-220mm |
|
Power Supply |
Three-phase five-wire system AC380V±10%, 50HZ |
||
|
Working Power Consumption |
≤16KW |
≤16KW |
≤16KW |
|
Working Environment |
Temperature 0～40℃, relative humidity ≤80% |
||
|
Cooling Method |
Natural Air Intake, Upward Exhaust |
||
Channel parameters
|
Model |
MDSC- S16-64-30 |
MDSC- S15-64-30 |
MDSC- S16-94-20 |
|
Voltage Measurement Range |
0～5V |
||
|
Battery Voltage Range |
Charge 0～4.5V; Discharge 4.5～2V |
||
|
Constant Voltage Range |
2.5～4.5V |
||
|
Voltage Accuracy |
±(1‰ reading+1‰ full scale) |
||
|
Voltage Resolution |
1mV |
||
|
Voltage Stability |
≤1‰ |
||
|
Current Range |
Charge 200mA～20A Discharge200mA～20A |
Charge300mA～30A Discharge 300mA～30A |
Charge 200mA～20A Discharge 200mA～20A |
|
Current Accuracy |
±(1‰reading+1‰full scale) |
||
|
Current Resolution |
10mA |
||
|
Stable Current |
≤1‰ |
||
Software features
|
Model |
MDSC- S16-64-30 |
MDSC- S15-64-30 |
MDSC- S16-94-20 |
|
Way To Control |
The software is installed on the computer to connect to the equipment, and the whole cabinet is controlled |
||
|
Communication Method |
Serial port, baud rate 57600 |
||
|
Process Settings |
Up to 32 steps and 256 cycles can be set |
||
|
Charging Mode |
Constant current, constant voltage, constant current and constant voltage |
||
|
Charging Cut-Off Condition |
Voltage, current, time, capacity |
||
|
Discharge Mode |
Constant current |
||
|
Discharge Cut-Off Condition |
Voltage, time, capacity |
||
|
Protective Function |
Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity protection, power failure protection, data breakpoint recovery |
||
|
Time Limit |
Arbitrarily set within 0～30000 minutes, the time unit is min |
||
|
Time Accuracy |
≤±1‰ |
||
|
Sampling Inspection Cycle |
≤3s |
||
|
Minimum Data Recording Frequency |
≤5s |
||
|
Battery Sorting |
Sort by (capacity, time, open circuit voltage, discharge platform, etc.) |
||
|
Data Processing |
Can record voltage, current, time, capacity and other data, automatically calculate constant current charge ratio, capacity loss, discharge efficiency, average voltage, median voltage and other data, provide data graphs and cycle diagrams; can output generated text, EXCEL, WORD Or MDB database format file |
||
Features
Energy-saving battery based on high-frequency power feedback technology
Energy-saving charging mode (switching power supply mode)
Advantages
The discharged electric energy of the power supply is well recycled and reused, and the energy saving effect is obvious.
