Product details of the ultrasonic metal spot welder
Quick Overview
ultrasonic metal spot welder has the best design that comes from world-class designers. This product is thoroughly inspected as per the quality guidelines. ultrasonic metal spot welder developed and produced by Minder Machine is widely applied to many industries and fields. It can fully meet the diversified needs of customers. The product has a wide range of sales channels and market influence.
Product Information
ultrasonic metal spot welder produced by Minder Machine are of excellent quality and the specific details are as follows.
Product Introduction

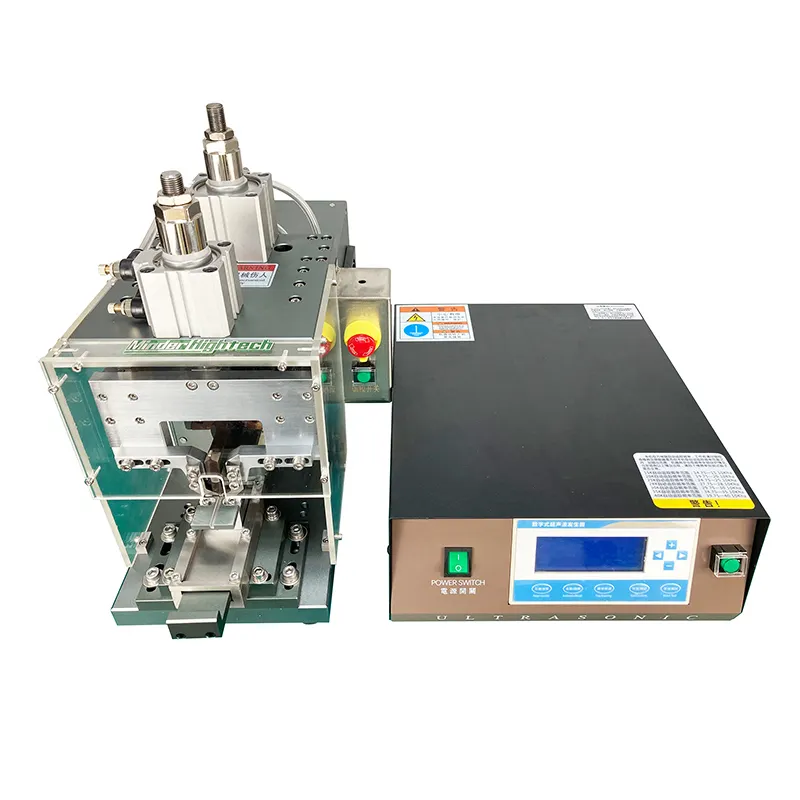

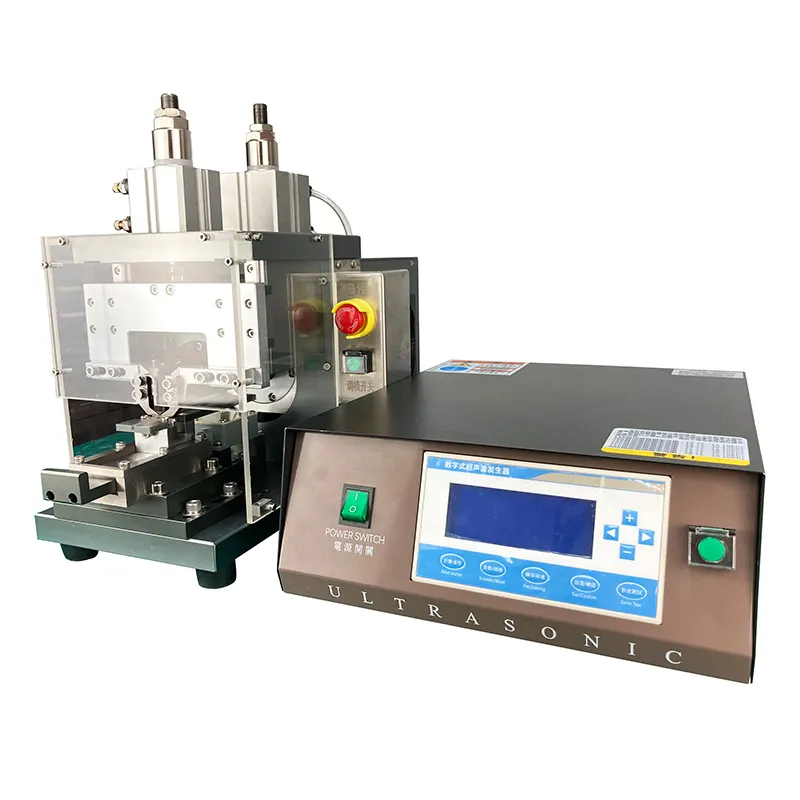

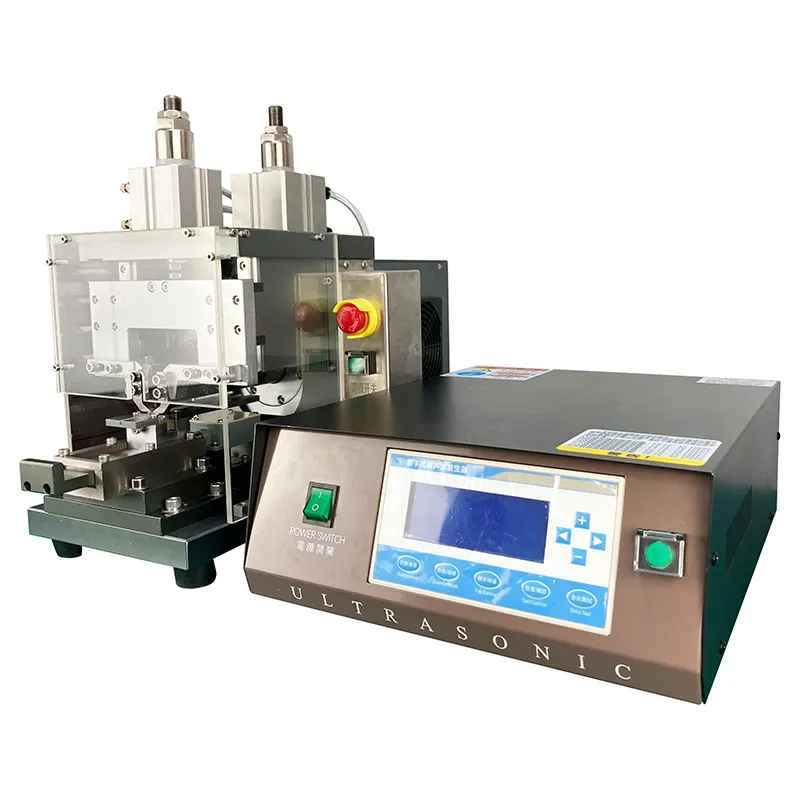

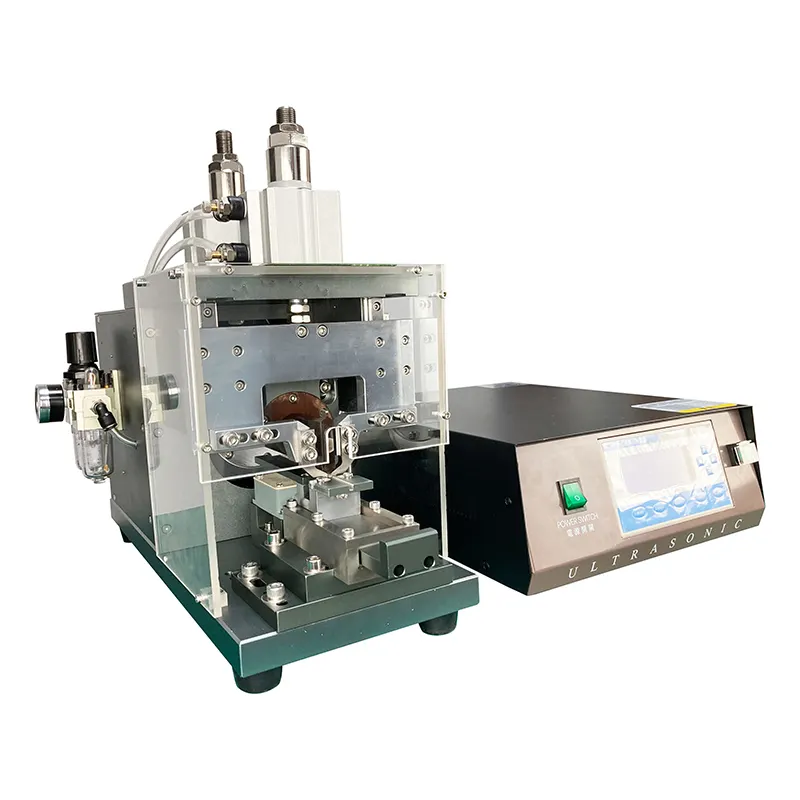

--- Ultrasonic Terminal Welding MachineThe principle of ultrasonic metal welding is a special method of using the mechanical vibration energy of ultrasonic frequency to connect the same or different metals. When metal is welded by ultrasonic, it neither delivers current to the workpiece nor applies high temperature heat source to the workpiece, just only under static pressure, the wire frame vibration energy is transformed into friction work, deformation energy and limited temperature rise between the workpieces. The metallurgical bonding between the joints is a solid state welding that is realized without the base material melting. Therefore, it effectively overcomes the spatter and oxidation caused by resistance welding. Ultrasonic metal welding machine can perform single-point welding, multi-point welding and short strip welding on thin wire or sheet materials of non-ferrous metals such as copper, silver, aluminum, and nickel. It can be widely used in the welding of SCR leads, fuse pieces, electrical leads, lithium battery pole pieces, and tabs
Related Parameters
|
Model |
MD-T2030 |
MD-T2040 |
MD-T2050 |
MD-T2080 |
|
Ultrasonic frequency |
20KHz |
|||
|
Input |
AC220V/50Hz |
|||
|
Ultrasonic power |
3000W |
4000W |
5000W |
8000W |
|
Air pressue |
0.4MPa~0.6MPa |
|||
|
Control |
Time/energy |
|||
|
Stroke |
30mm |
|||
|
Head size |
440*230*400mm |
|||
|
Generator |
450*435*140mm |
|||
|
Weight |
80kg |
|||
Advantages of ultrasonic metal welding
Materials and Applications
ApplicationS
Gold, silver, iron, aluminum, alloy, steel, diamond welding between the same materials or welding of different materials.
