Product details of the ic machine

Product Introduction

The materials of Minder Machine ic machine are sourced from suppliers that enforce strict social standards in their factories. The quality of this product is one of the best due to the adoption of the strict quality control system. Professional and thoughtful customer services are provided by Guangzhou Minder-Hightech Co.,ltd.

Product Introduction

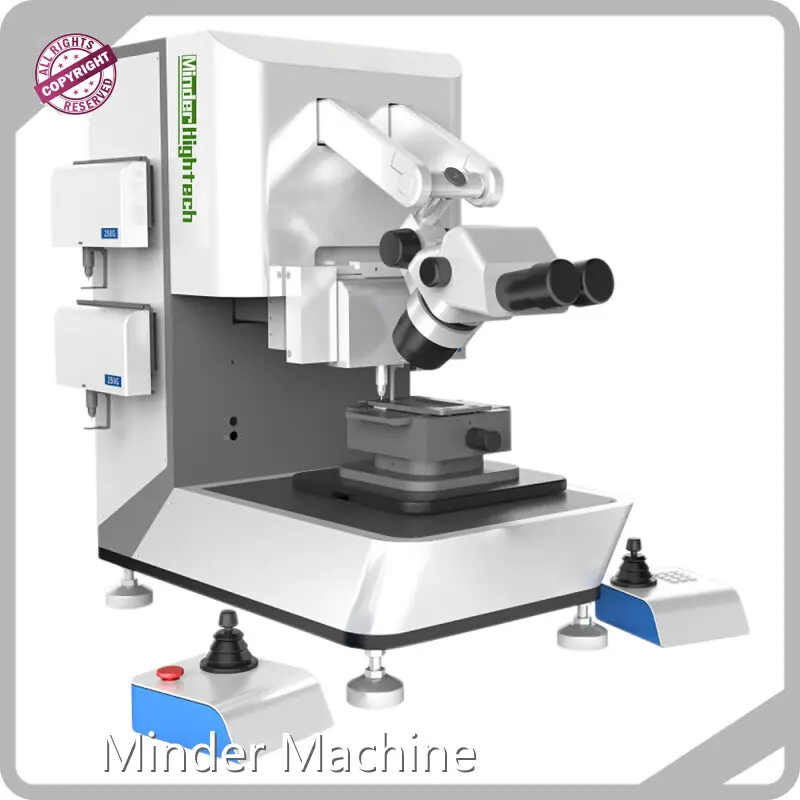

--- MD-BT101 multifunctional bond tester

Related Parameters

Equipment model	MD-BT101
Testing accuracy	Sensor accuracy+0.003%: comprehensive testing accuracy+0.25%
Test scope	Configure different range testing modules according to customer products
Working mode	Push and pull the needle 180 degrees vertically in contact with the test product to ensure the accuracy of the data
Sensor replacement method	Manually replace the test module
operating system	Control system+Windows operating interface
Platform fixture	The machine can share various fixtures, and the fixtures can rotate 360 degrees
X-axis stroke	75mm
X-axis resolution	+/-0 002mm
Y-axis stroke	75mm
Y-axis resolution	+/-0.002mm
Z-axis stroke	80mm
Z-axis resolution	+/-0.001mm
power supply	220V±5%
power	300W(MAX)
External dimensions	L: 500mm W: :550mm H: :440mm
weight	50kg

Features

All sensors adopt high-speed dynamic sensing and high-speed data acquisition systems to ensure the accuracy of test data.

Adopting the company's unique high-resolution (24BitPlus ultra high resolution) data acquisition system.

Adopting the company's unique safety limit and speed limit technology, making the operation easy and convenient.

Adopting the company's unique intelligent lighting control and adjustment system to reduce the damage of light sources to vision.

Equipped with a high-definition observation microscope as standard, reducing visual fatigue for personnel.

Dual rocker four way operation and user-friendly software configuration make operation simple and convenient.

Combining the unique design of ergonomics, making use more comfortable.

Comprehensive protective measures for equipment to avoid damage caused by personnel's misoperation

Strong R&D capabilities, providing customized products according to customer needs.

Attentive after-sales service ensures that users have no worries or concerns.

Product Details

BOND (3)

BOND (2)

BOND (1)

Company Feature

• With the active spirit, our company can provide you with professional and efficient services to solve your worries.
• Minder Machine's sales network covers major provinces, cities and autonomous regions in the country. In addition, industrial machinery are favored by overseas customers and are sold to Southeast Asia, Africa, Australia, and other countries and regions.
• With a focus on staff training, Minder Machine has an excellent team consisting of highly-educated and professional talents.
Leave your contact information, and Minder Machine has surprise giveaways for you!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
