Dicing saw

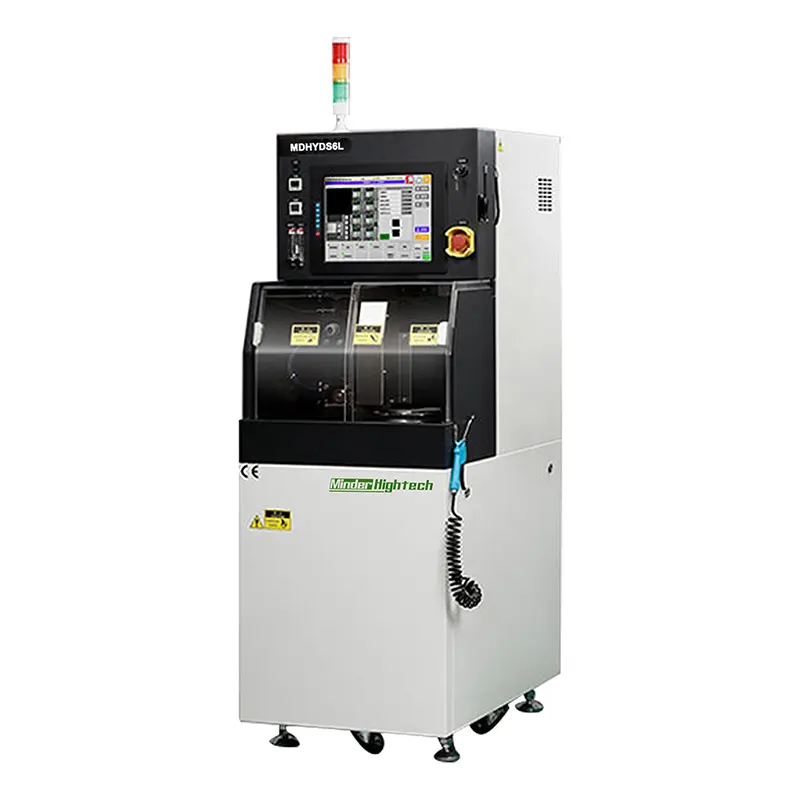

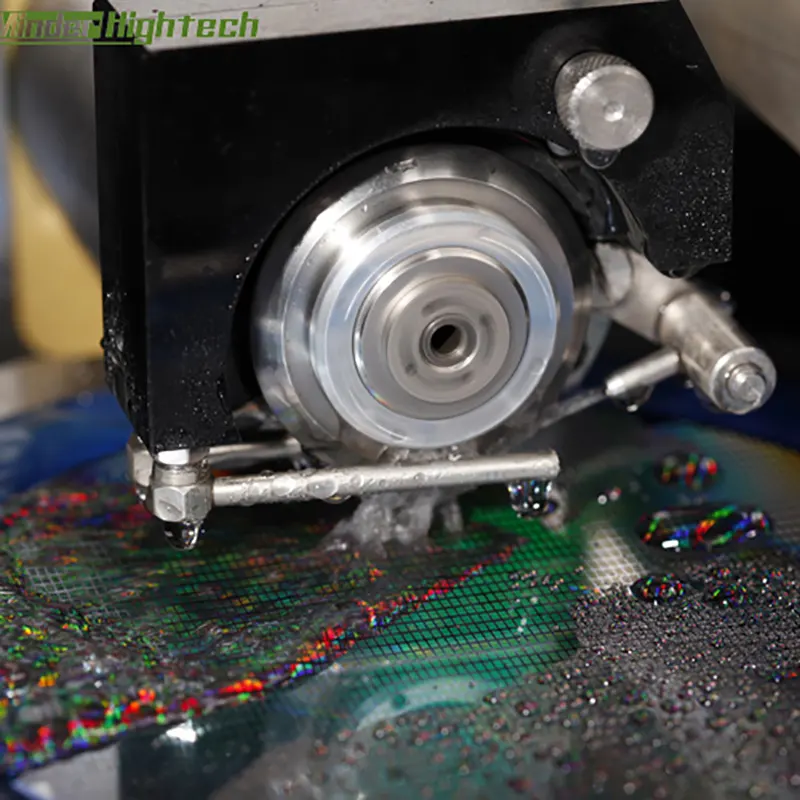

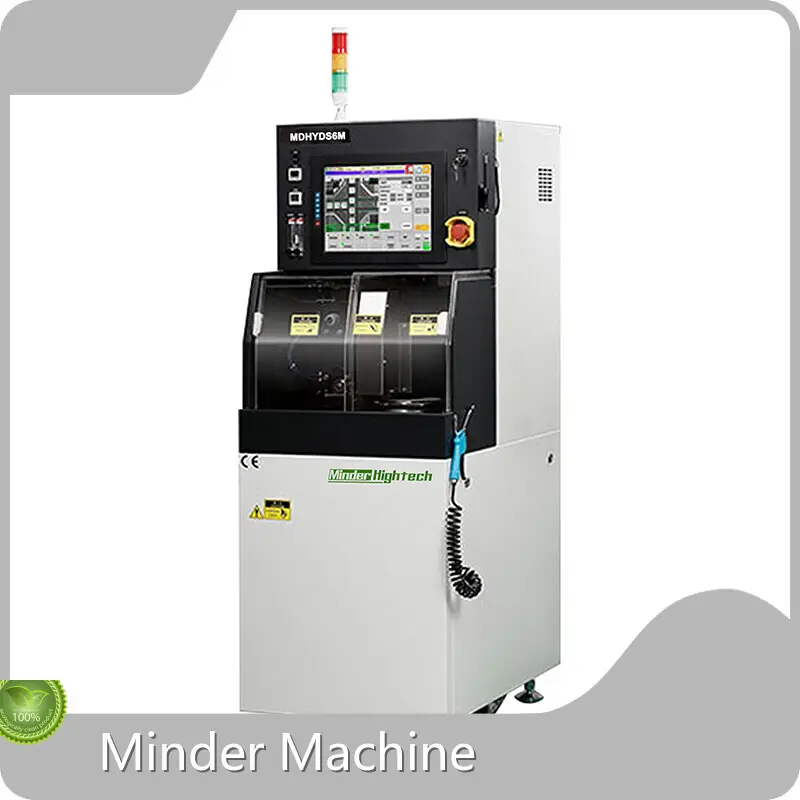

MDHYDS6L 6inch Dicing saw for semiconductor industry
The precision scribing machine is equipped with a 15-inch LCD touch screen, GUI interface is friendly, easy to align the workpiece; DS-300 software control system is adopted, the frame is reasonable, the operation is convenient, and the production efficiency is improved; the equipment performance is stable, the reliability is high, and the maintenance cost Low.
Material suitable
Si, GaAsLiNbO3, Al2O3, Ceramic, Glass, Quartz, PCB, EMC etc.
Related Parameters
|
|
MDHYDS6L |
MDHYDS6M |
MDHYDS6H |
|
Multi plate dicing |
√ |
√ |
√ |
|
Auto focus |
√ |
√ |
√ |
|
Auto align |
* |
* |
√ |
|
Shape recognition |
- |
- |
* |
|
Dicing mark check |
- |
* |
* |
|
Non contact height test |
- |
* |
√ |
|
Blade broken check |
- |
* |
* |
|
Dual camera align system |
- |
* |
√ |
|
|
|
|
MDHYDS6L |
MDHYDS6M |
MDHYDS6H |
|
Spec |
dicing size |
mm |
ф6”〡□150 |
ф6”〡□150 |
ф6”〡□150 |
|
dicing depth |
mm |
≤4mm or custom |
≤4mm or custom |
≤4mm or custom |
|
|
Main spindle |
rotaty speed |
minˉ¹ |
3000∽40000 |
10000∽50000 |
10000∽50000 |
|
power |
kW |
AC,1.25at40000minˉ¹ |
AC,1.5at50000minˉ¹ |
DC,1.5at50000minˉ¹ |
|
|
X axis |
stroke |
mm |
250 |
250 |
250 |
|
speed range |
mm/s |
0.1∽400 |
0.1∽400 |
0.1∽500 |
|
|
Y axis |
stroke |
mm |
170 |
170 |
170 |
|
resolution |
mm |
0.0001 |
0.0001 |
0.0001 |
|
|
single move accuracy |
mm |
≤0.003/5 |
≤0.003/5 |
≤0.002/5 |
|
|
F accuracy |
mm |
≤0.005/170 |
≤0.005/170 |
≤0.004/170 |
|
|
Z axis |
stroke |
mm |
30 |
30 |
30 |
|
max blade size: |
mm |
ф58 |
ф58 |
ф58 |
|
|
resolution |
mm |
0.0001 |
0.0001 |
0.0001 |
|
|
accuracy |
mm |
0.001 |
0.001 |
0.001 |
|
|
R axis |
rotary range |
deg |
380 |
380 |
380 |
|
Basic required |
power |
KVA |
3.0（single phase，AC220V） |
3.0（single phase，AC220V） |
3.0（single phase，AC220V） |
|
air |
Mpa L/min |
0.5∽0.6max consumption180 |
0.5∽0.6max consumption200 |
0.5∽0.6max consumption200 |
|
|
cutting fluid |
Mpa L/min |
0.2∽0.3max consumption3.0 |
0.2∽0.3max consumption3.5 |
0.2∽0.3max consumption3.5 |
|
|
cooling water |
Mpa L/min |
0.2∽0.3max consumption1.5 |
0.2∽0.3max consumption1.5 |
0.2∽0.3max consumption1.5 |
|
|
exhaust |
m³/min |
1.5 |
1.5 |
1.5 |
|
|
size |
mm |
580*910*1650 |
580*910*1650 |
580*910*1650 |
|
|
weight |
kg |
500 |
500 |
500 |
Features
ApplicationS
IC, Optical, communication, LED, MEMS, Medical, NTC, Quartz, Diode, Triode etc.
