Product details of the battery pack welding machine

Quick Detail

Minder Machine battery pack welding machine is of a design that is both creative and functional. The product is in compliance with some of the toughest quality standards across the world. Minder Machine's battery pack welding machine is of excellent quality and is widely used in the industry. Guangzhou Minder-Hightech Co.,ltd's service team is dedicated to providing you with any assistance for battery pack welding machine products.

Product Introduction

We pursue perfection in every detail of the battery pack welding machine we produce. And our products represent the excellent quality.

Product Introduction

Model: MD-ASW

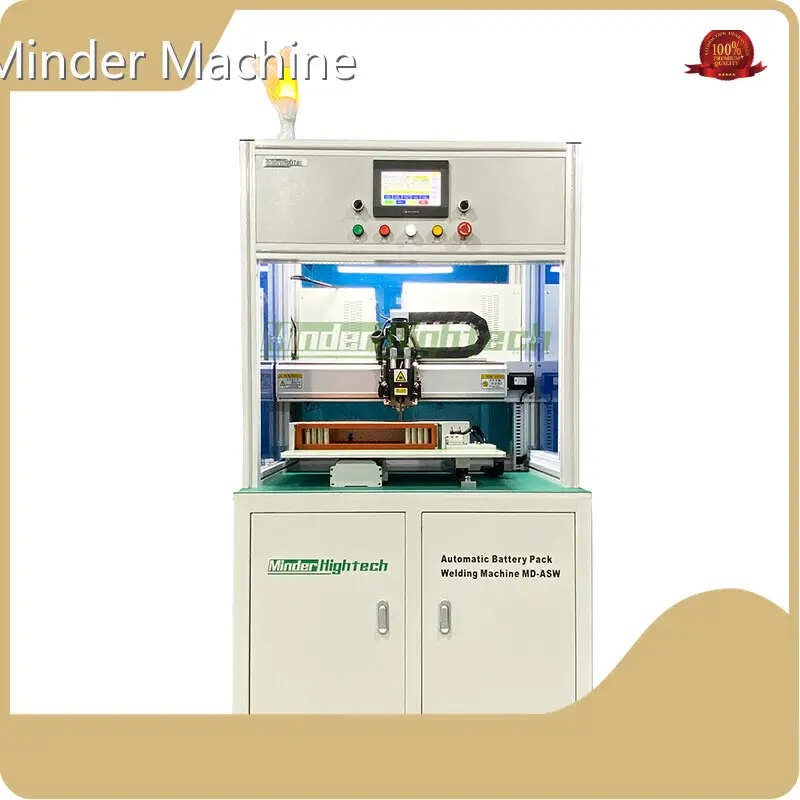

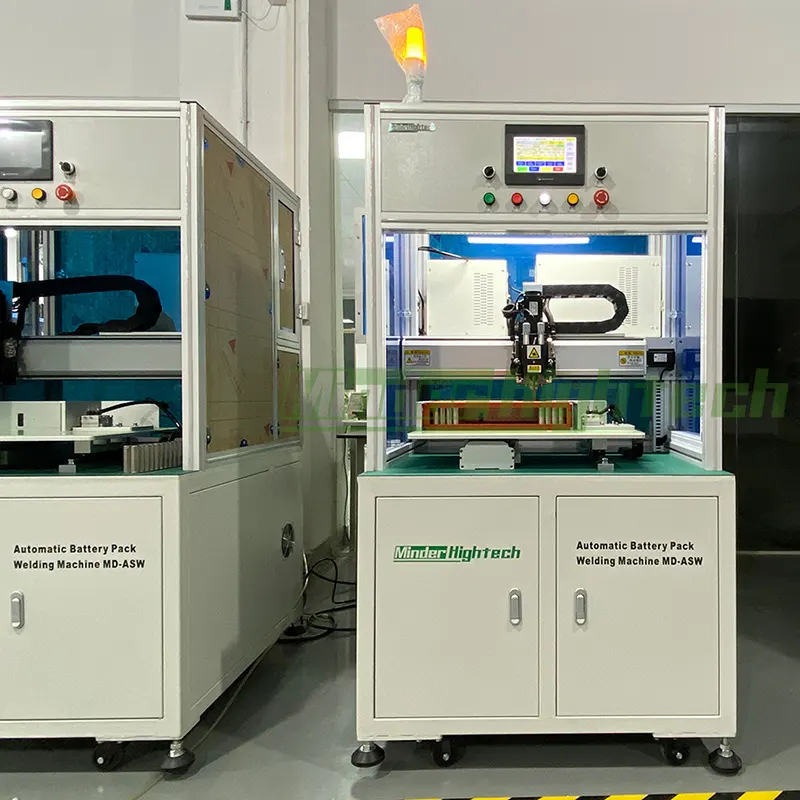

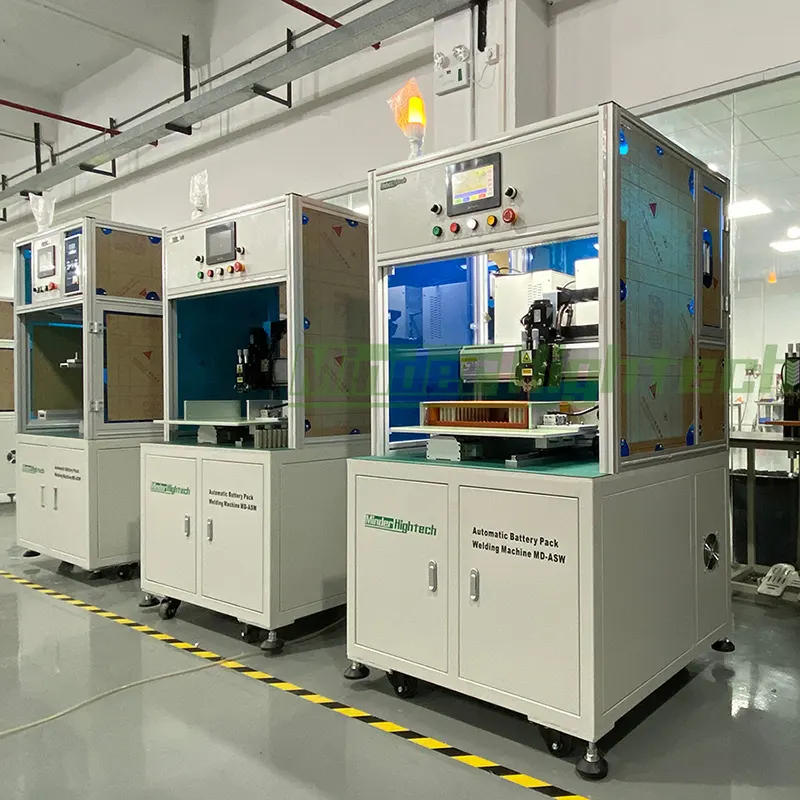

--- MD-ASW Single side battery pack spot welder

Automatic Battery Pack Spot Welder is a general platform of automatic processing technology based on CNC, suitable battery pack spot welding and assembly in the factory. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.

Related Parameters

Thickness of the welding	0.05-0.5mm
Inverter frequency	4KHz
Maximum output current	5000A/8000A
Welding way	Double pin spot welding
Drive way	Pneumatic + electric type
Cooling way	Force air/water cooling
Input power	200V/3φ380V±10%
Appearance of size	90L90W165H cm
Welding efficiency	3600Pcs/H
Weight	280kg
X travel:	360mm
Z1, Z2 travel:	220mm
Welding speed:	0.5s/spot, 3200pcs/h
Max motor speed:	1000mm/s
Max battery number:	200 pcs (18650)
Max parameters groups:	99 groups
Operate system:	Embedded system, touch screen user interface
Drive mode:	Step motor and precision guide rail
Supply:	220V/50Hz
Air pressure:	0.4-0.7 Mpa

Features

Support breakpoint start, automatic start, and manual start.

Cold solder joint and sealing off alarm.

Easy program, support matrix, array and point program, can store 99 group parameters. Welding needle abrasion alarm.

Build-in welding current monitor, can display real time welding current.

Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other lithium battery packs spot welding.

High productivity: 0.5s/spot

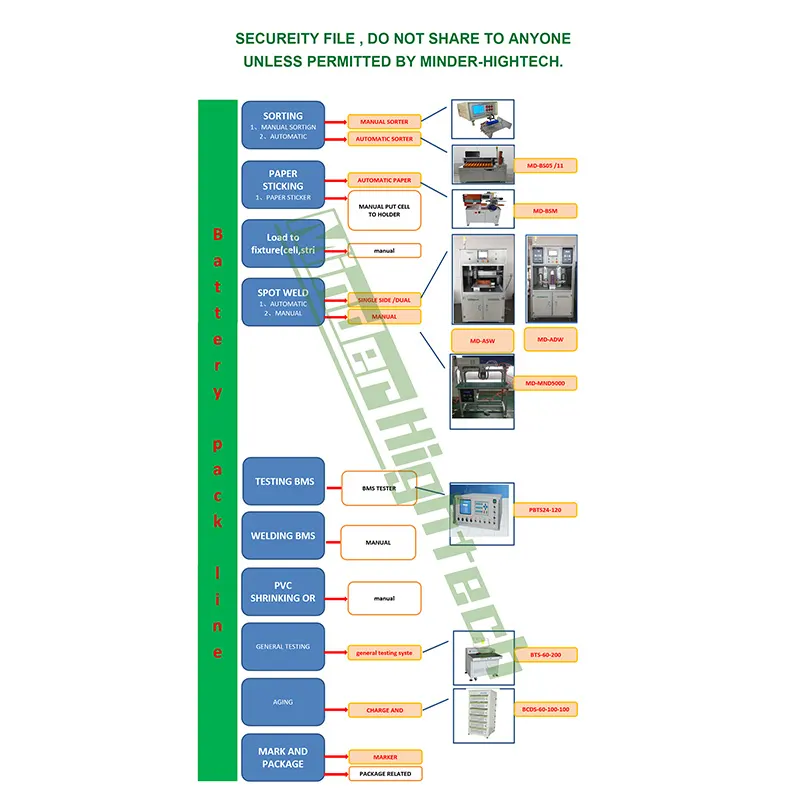

Can be matched with the production line of lithium battery group.

Automatic battery pack spot welder adopts traditional pneumatic single point dynamic, ensure the welding accuracy, and improve the welding appearance quality and reliability.

Can store dozens process of different battery packs product, switching products without re-setting parameters.

Can match a variety brand of spot welders.

Application area

With the corresponding fixture, MD-ADW can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.

X0 (3)

X0 (2)

X0 (1)

Operation

Setting the parameters of welding on the touch screen. (The same product only need to be set once)

Put the fixture with the battery pack on the quick clamping position.

Press the start button, MD-ADW automatically complete all welding actions.

MD-ADW sound to prompt operator replacement of new fixture (battery pack).
