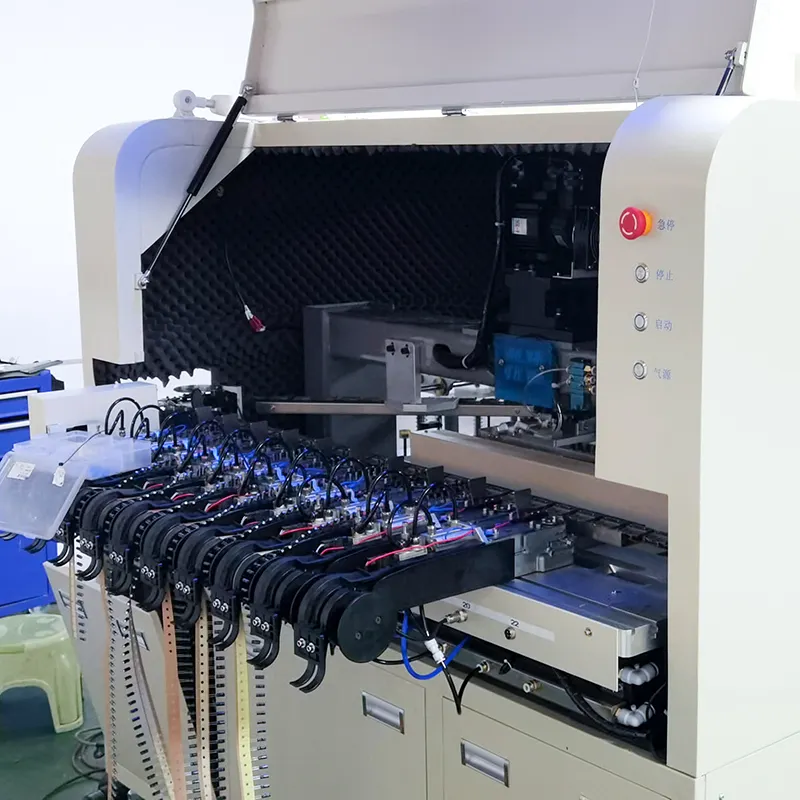

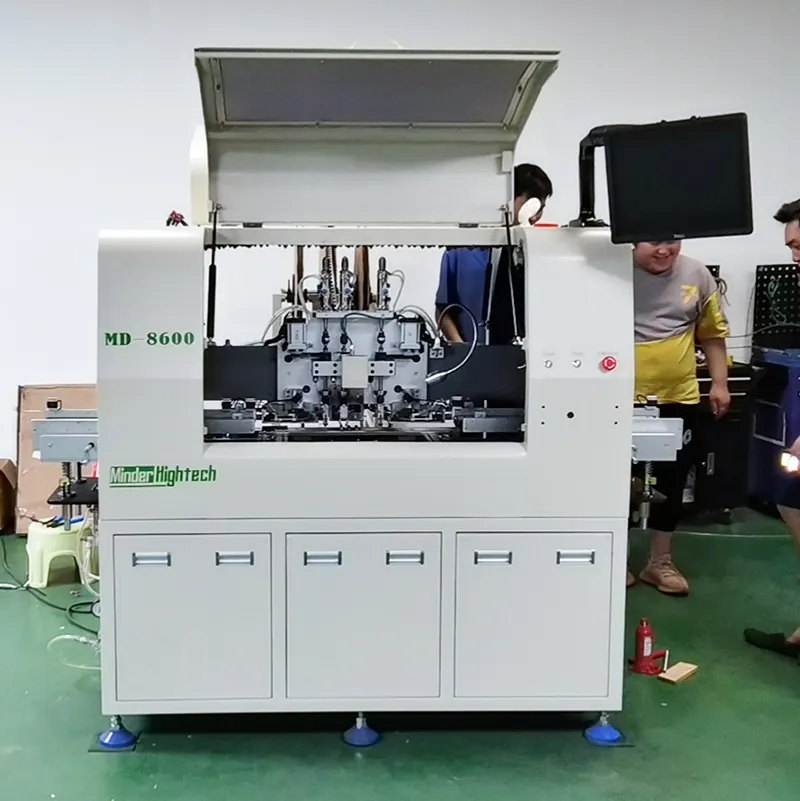

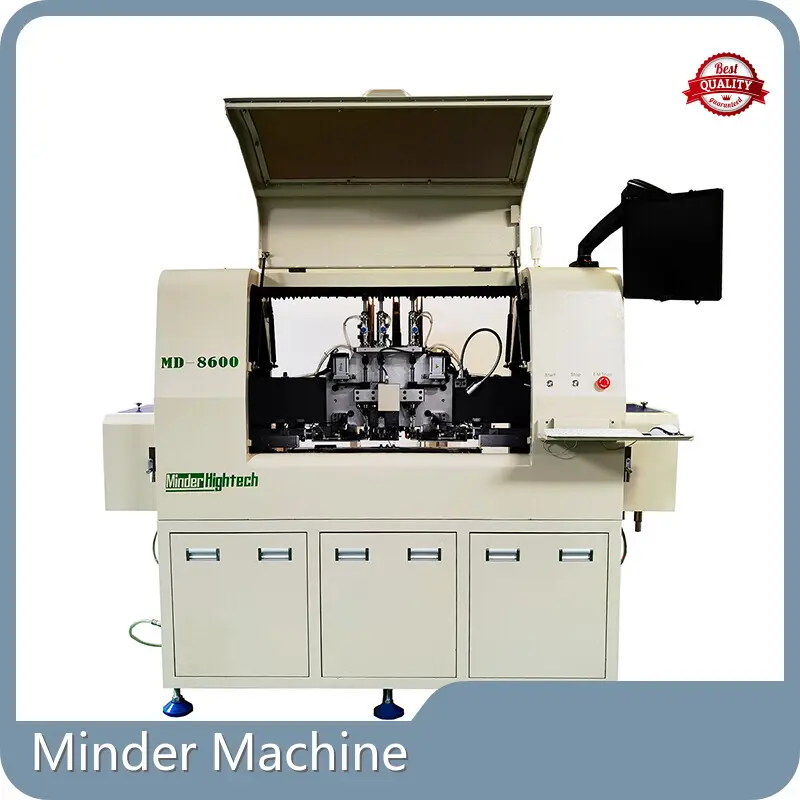

Automatic Insertion Machine Minder Machine

Product Introduction

Operation system: production data, management data, device parameters, editing program, all I/O signal diagnosis in Windows environment can be completed on the host, the interface is user-friendly, the device profile is efficient, and the operation is simple. Visual System: The industrial-specific high-definition camera and the self-developed vision correction software form a vision system. The deviation between the PCB hole position and the programmed input coordinates can be quickly and automatically calibrated to match all the coordinates with the actual PCB hole position, ensuring the plug-in accuracy and greatly improving the programming efficiency. Plug in speed: 0.55 seconds / piece, equipped with Panasonic AC servo drive, high speed, low noise, smooth motion Missing parts detection: When the missing part is inserted, the missing part detection can be realized and a supplementary insertion function can be provided.

Important Parts Brand

  Servo motor adopts Japanese Panasonic brand  Sending board, feeder system motor adopts Oriental brand  Pneumatic components adopt Taiwan Airtic brand  The lead screw adopts the Japanese THK brand  Camera system uses CGimagetech brand (5 million pixels)  Photoelectric sensor adopts SUNX brand of Japan  The main parts are made of Japanese mold steel
