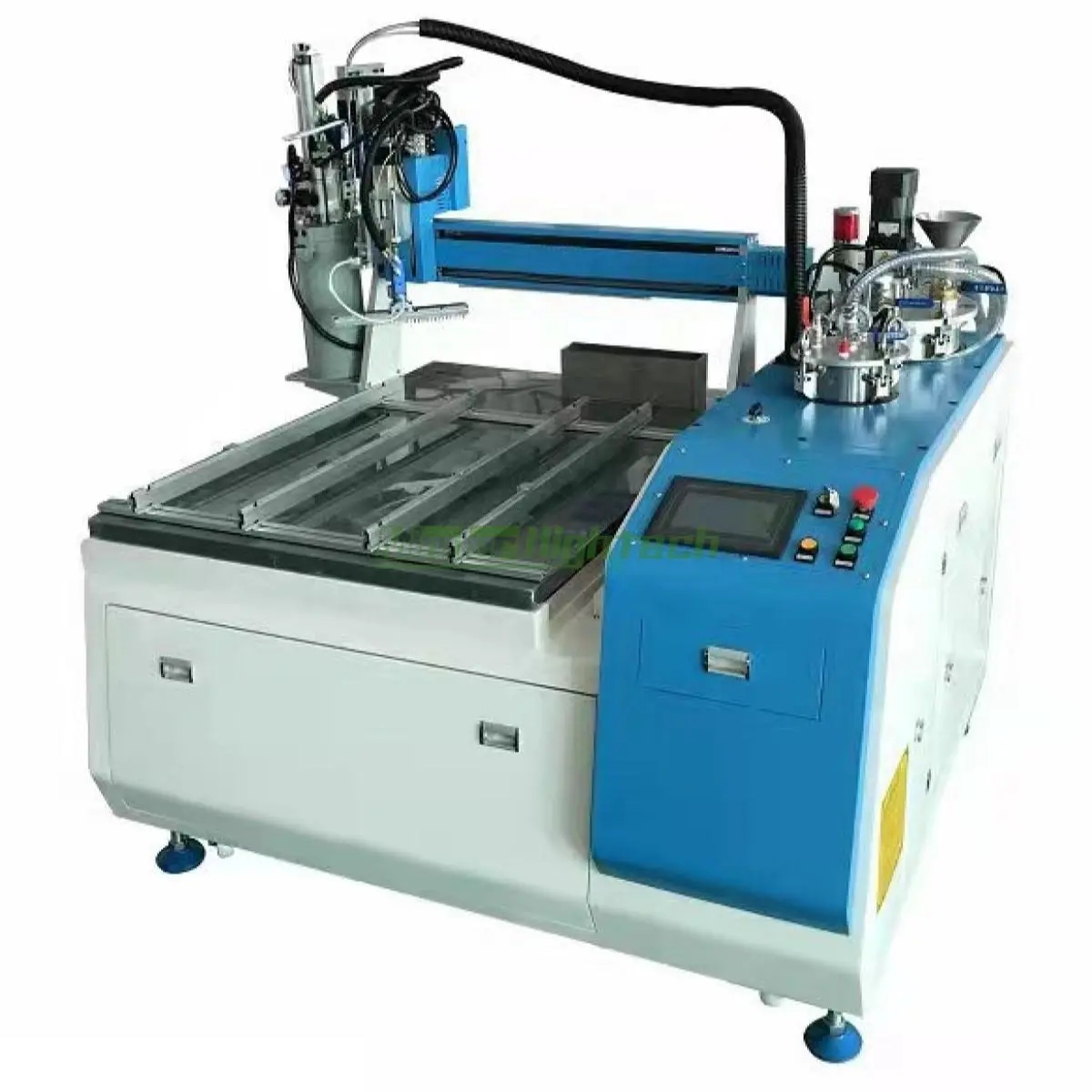

MD-810 Stand alone potting machine for two-component fluid
The Preface：
MD-810 potting equipment is designed for epoxy resin, polyurethane, silicone and other two-component fluids.
Features:
1. High-precision positioning, equipped with high-precision imported servo lead screw three-coordinate linear manipulator mobile device, to achieve high-precision position control, precision ±0.03mm
2. Motion control board: it can draw lines at high speed and control various irregular movements;
3. Using instructional programming,
4 Needle type: a variety of and uniform amount of glue .
5. Alarm function: A and B barrels are equipped with alarm devices with lower, upper and top positions.
First : Equipment introduction
1 . Technical data：
|
Ratio Range |
100:100—100:10 optional |
|
Working area |
800（X）*600(Y)*100mm(Z) |
|
Processing path |
Dot, line , arc , and circle |
|
Driving mode |
Servo motor (Japan) + guide screw + slide block (Taiwan brand) |
|
Speed of three-axis |
500mm/s（displacement speed）1-12ml/s（output speed of single pump） |
|
Accuracy of three-axis |
±0.03mm（Repeat positioning accuracy）±2%（potting）±2%（metering） |
|
Discharging function |
Origin position/fixed point for discharging |
|
Program memory |
99 pcs |
|
Input air pressure |
0.5MPa—0.7MPa |
|
Viscosity |
50cps~paste |
|
Operation mode |
Manual / auto |
|
Metering control |
PLC/Double cylinder plunger pump |
|
Flow rate control |
Digital input |
|
Program method |
Teach programming |
|
Automatic control system |
PC、Touch screen（Implement program programming, modification, storage, etc,） |
|
Out-put controlling system |
AB Back suction valve achieve fluid potting independently |
|
Mixing way |
Dynamic / static optional , instant mixing ,easy clean |
|
Storage system |
stainless steel tank（40L）、（25L）、（10L）optional |
|
Power supply |
220V/50Hz/1.5kW（without heater） |
|
Outer dimension |
1800mm×1550 mm×1700mm |
2. Equipment schematic diagram description
3. Machine structure and main parts .
4.Metering system
It has the following characteristics:
1) It can achieve continuous glue potting, and the amount of glue can be converted from 1g/s to 16g/s in a wide range;
2) Stable operation and long service life;
5. Mixing system (double-fluid valve)
1) The maximum speed of the stirring motor can reach 3000 RPM (adjustable), which can be fully stirred evenly;
2）Agitator motor with automatic detection function;
6. Self-cleaning system
The main parameter stations are as follows:
Machine stroke :800*600*100 (Z-axis manual adjustable 100)
Speed: X, Y0-500mm/, Z-axis 0-100mm/
Repeat accuracy: ±0.03mm (cumulative tolerance is not allowed)
7. Control system
Adopt PLC, touch screen control, and configure teaching programming system. The control system has the following characteristics:
1) The glue output is controlled by the speed of the motor to achieve the required amount of glue. The output speed is adjusted at will within the range;
2) Adjustable synchronous adhesive adjustment makes A/B glue flow out of the mixing valve at the same time to get a better mixing effect;
3) The device is equipped with anti-gel timer, vacuum defoaming, etc., anti-curing time and defoaming time can be set.
9. Multi-nozzles
The multi-nozzles can be customized according to the different product specification .
10、MD810Configuration List
|
Category |
Fully automatic glue potting machine |
Brand |
|
|
Configurations |
Quantity |
||
|
Frame |
Square steel tube/sheet metal |
1 set |
Made in China |
|
Control system |
PLC |
1 set |
Panasonic |
|
software control system (Glue proportion, glue flow rate,running track and running speed are all adjustable and controllable) |
1 set |
|
|
|
HMI Touch screen |
1 pc |
MGCS |
|
|
Motion control |
1 set |
JSTR |
|
|
Sensor |
6 pcs |
Made in China |
|
|
Mobile Platform |
Guide |
3 group |
Shanghai |
|
Guide screws |
3 sets |
TBI |
|
|
Servo motor |
2 group |
Mitsubishi Japan |
|
|
Mixing system |
Stainless steel tank (sus304 material) |
2 pcs |
Made in China |
|
High precision plunger pumps(1 year warranty for pump core) |
1 group |
Made in China |
|
|
Dynamic Mixing of Double Liquid Flow (with double valve) |
1 set |
Made in China |
|
|
B fluid display |
1 group |
Made in China |
|
|
Y-type filter |
1 group |
Made in China |
|
|
Self-cleaning |
Self-cleaning device |
1 set |
Made in China |
