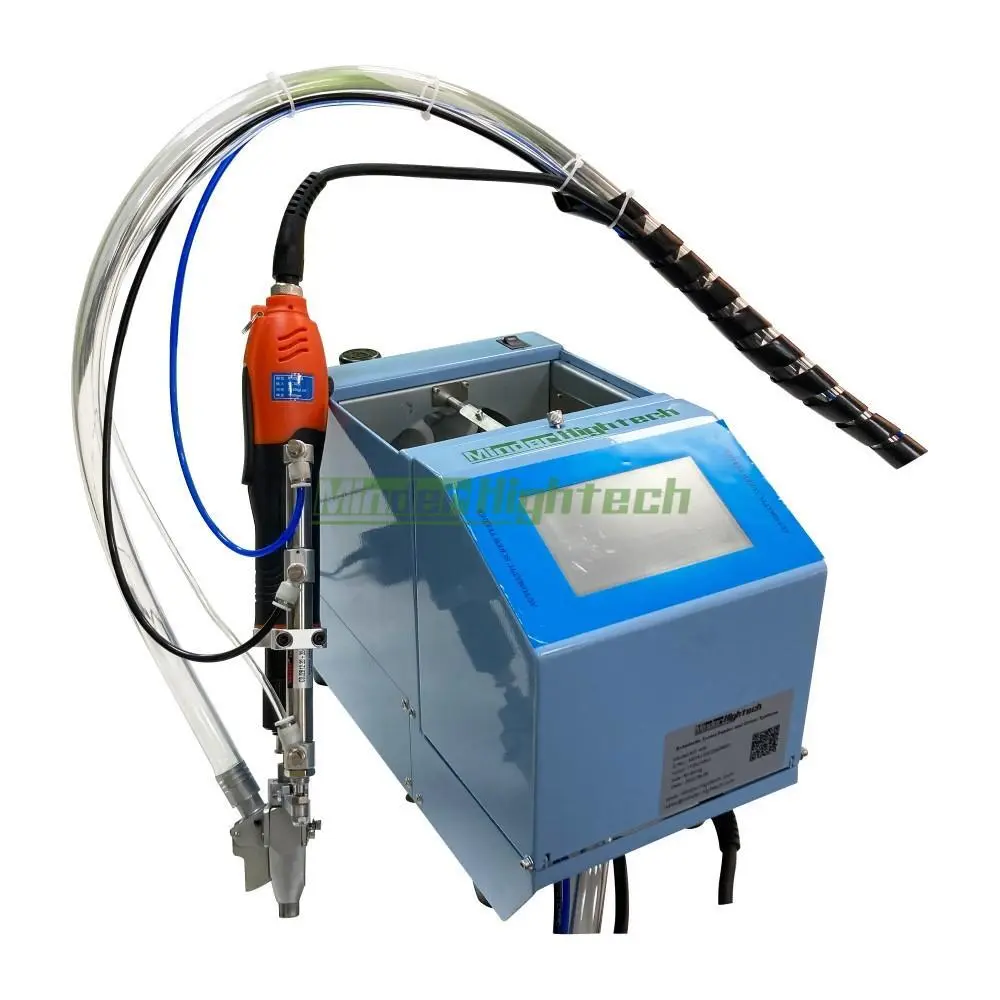

Hand held screw locking machine
Applications
Notebook computers,routers, glasses, cell phones, LCD monitors, watches, integrated board, 5C precision industries, network interface, navigator,TV,kettle,motor etc.
Function & Characteristic
1. Screw materials such as iron,copper,stainless steel,etc.
2. Material of screw products,such as plastic,iron,aluminum,etc.
3. High efficiency,cost saving:the locking rate can reach 1 screw for 0.5 seconds, which is 1 times higher than the traditional tightening efficiency. Can save 1 man laborer.
4. More relaxed, more quality assurance:the left hand does not need to take the screw, can be used to hold the product,and can maintain vertical lock pay, to ensure the quality of the lock.
5. Cleaner,more environmentally friendly:no longer in direct contact with the screws, avoid contact with the hands causing secondary pollution and rust.
Specification
|
Power Consumption |
30W |
|
Usage Environment |
-20℃ - 40 ℃ |
|
Working air pressure |
2--3KGF / cm² |
|
Transport distance |
1-4 meters |
|
Max feeding bin capacity |
3000 pcs (according to size ) |
|
Screwdriver bit type |
Std KILEWS or customized |
|
Screw head model |
Cross, PH, Cross, Star drive, Triangle, Hex,etc. |
|
Suitable industry |
Universal, almost suitable for all industries |
|
Equipment compatible |
Tolerance 0.5 mm, Length 5 mm |
|
Screw models |
M1, M2, M3, M4, M5 , M6 |
|
Screw teeth diameter |
1.2, 1.4, 1.7, 2.0, 2.3, 2.6, 2.8, 3.0, 3.5, 4.0, 5.0 |
|
Max screw length |
25 mm |
|
Max screw head diameter |
5 mm |
|
Locking speed |
Max 60 pcs / minute, 1 screw in one second |
|
Packing list |
1 x screw driver bit with lock, 1 x Host with screwfeeder |
|
Working Power |
AC 220V 50/60 Hz |
|
Machine Dimension |
360*250*195mm |
