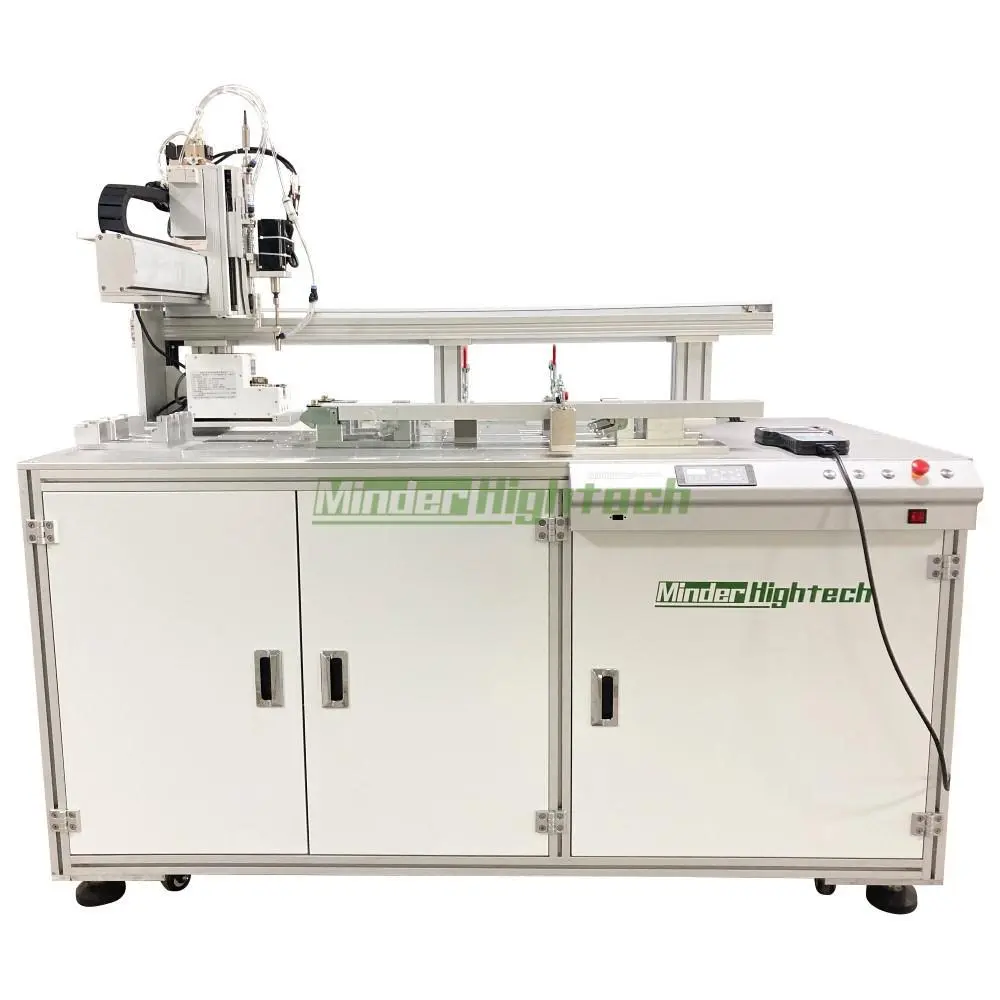

Gantry type Cantilever locking screw machine
Robotic screw fastening system can increase throughput on a variety of assembly application
Applications
Notebook computers,routers, glasses, cell phones, LCD monitors, watches, integrated board, 5C precision industries, network interface, navigator,TV,kettle,motor etc.
Feature
1. Floor type, more stable.
2. Full english marked machine body, to be international application.
3. Large platform, multiple products can be placed.
4. The screw automatic ranking, automatic feeding, safe and silence.
5. Provide greater torque, and lock large screws without slipping.
6. Main components of the machine are high quality, ensure the reliability and accuracy.
7. All English programming software handheld controller.
Specification
|
Model |
MD-4120 |
|
Stroke X |
400mm |
|
Stroke Y |
1200mm |
|
Stroke Z |
100mm |
|
Material size |
1000*300 |
|
Maxiumun portable load |
x axis:10kg Yaxis:10kg Z axis:7kg Working table: 80kg |
|
maximun speed(PTP Drive)1=settable speed ragen |
600mm's (X-Y-2),Max:1000mm/s(X-Y-2) |
|
maximun speed(CP Drive)1=settable speed ragen |
x,y,z combined:800mm'sec(0.1-800mm/sec) |
|
Screwer No. |
Default 1 PC |
|
Drive |
Precision stepping motor+synchronous belt |
|
Drive method |
5 phase pulse motor (optional encoder attachment) |
|
Motion mode |
Point to point; line; circle |
|
Positioning accuracy |
±0.02(mm) |
|
External input |
I/O -SYS:24 input I/O-14:16 input |
|
External output |
I/O -SYS:24 outputs I/O-14;16 outputs(including 4 relay outputs) |
|
Program |
Control Teaching Box |
|
Screw feed mode |
suction type |
|
Screw feed speed |
65PC/Min |
|
Screw driver |
SDL series Servo motor screw driver |
|
External |
RS232 |
|
Bit drive |
H5 and 5HEX (both can be used) |
|
Screw size |
M3.0-M8.0 |
|
Screw length |
4-16mm |
|
Torque range |
5-50kgf/cm |
|
Torque switcthing |
stepless adjustment |
|
unloaded rotation speed(r.p.m)+-10% 11steps |
low rotation 05-15:115-320 HI rotation 20-30:660-940 |
|
Programstorage |
100groups/1000pointsper group |
|
Power |
110V50Hz |
|
Air |
0.5Mpa |
|
Main Configuration |
Italy Lartey belt HIWIN lead rail OMRON relay |
|
Dimension |
1700*750*1450mm |
|
Weight |
250kg |
SDL Series servo motor screw driver
|
Driver model |
DP-SDL3600（400W） |
|
Applicable torque |
10.0-36.0(kgf.cm) |
|
Speed (rpm) |
30-3000 |
|
Reduction ratio |
/ |
|
Torque accuracy |
±5% |
|
Voltage (v) |
AC: 220V 500W transformer + rectifier bridge |
