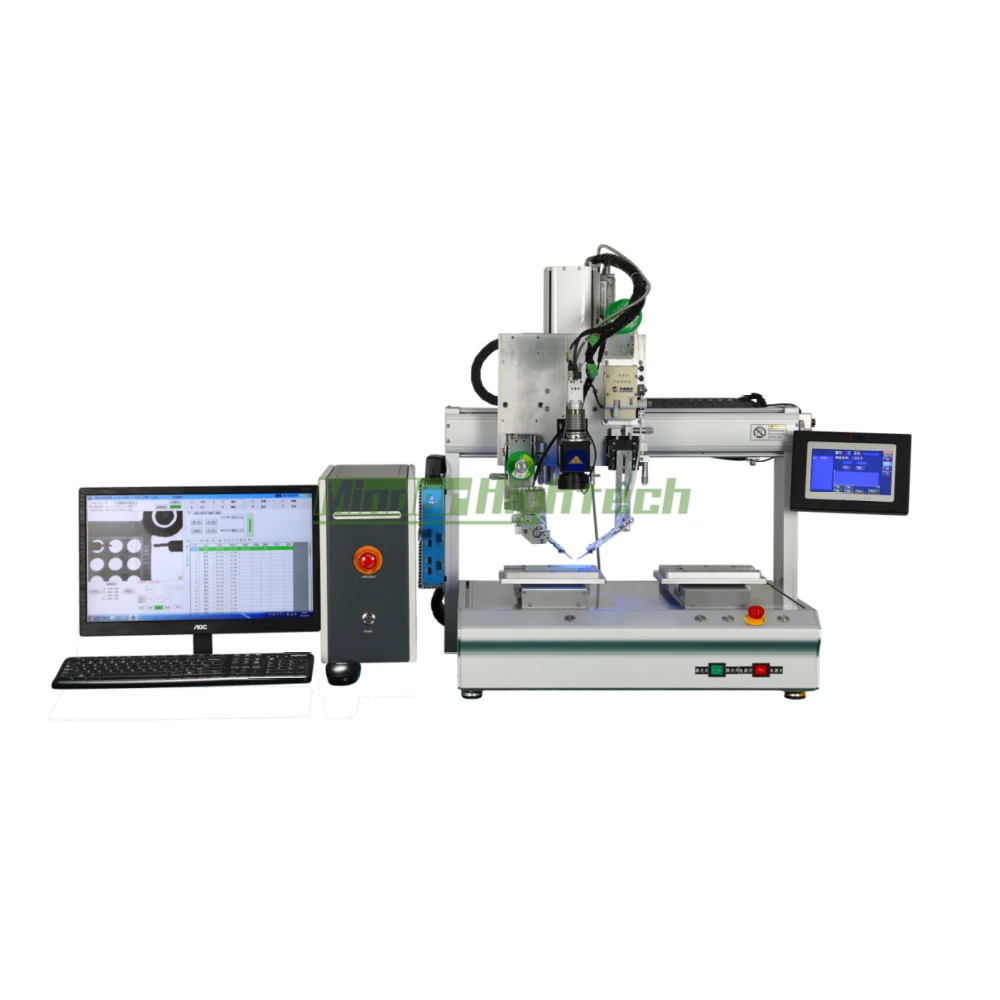

Desktop Laser Soldering Machine
https://www.youtube.com/embed/TUKDjIRx0tw
Laser Soldering Robot:
The process is precision and flexible. The laser power, spot size and control parameters can be matched to each joint. It is suitable for temperature sensitive, non-contact, static-free or narrow.
space application. This is able to work together with SPJ solder paste jetting valve and SPS.
solder paste screw valve desktop robot can dispense and cure solder paste at the same time. The process control is intelligent and flexible.
Characteristic:
1. Workers only need to pick and place products and the machine can automatically complete the soldering.
2. Simple operation. The display screen visualizes the operator to quickly grasp the operation and debugging: one worker can manage several machines at the same time.
3. Improve product quality. Accurate torque and convenient adjustment to ensure soldering quality.
4. CCD Visual positioning, motion accuracy up to 0.02mm
5. Industrial computer configuration i5-6 generation, 8G memory128SSD+1T, Win7 system. The small laser beam replaces the tip of the soldering iron, and it can also be operated in a small space.
|
Model(Max model: 800 * 800) |
MD-DH-T4411 |
MD-DH-T5511 |
MD-DH-T53311 |
MD-DH-T54411 |
|
Stroke X |
400mm |
500mm |
500mm |
500mm |
|
Stroke Y1 |
400mm |
500mm |
300mm |
400mm |
|
Stroke Y2 |
no |
no |
300mm |
400mm |
|
Stroke Z |
100mm(Can be customized 150mm / 200mm ) |
|||
|
Rated speed |
500mm/s (X-Y-Z) ,Max:1000mm/s |
|||
|
Tin thickness |
0.3-1.6mm |
|||
|
Drive |
Precision stepping motor+synchronous belt(optional servo motor+ball screw) |
|||
|
Main Configuration |
Ltaly lartey synchronous belt (Can be customized ball screw) |
|||
|
HIWIN lead rail |
||||
|
OMRON relay |
||||
|
Motion mode |
Point to point; line; circle |
|||
|
Laser Power |
30/60/120/200 (optional) |
|||
|
Wavelength |
915nm |
|||
|
Laser adjustment indicator light |
Red |
|||
|
Laser output stability |
< (+/-5%) |
|||
|
Industrial computer |
I5-6,8G Memory,128SSD+1T,win7 system |
|||
|
Position system |
CCD |
|||
|
Termperature |
100°C~480°C |
|||
|
Operation System |
Windows 7 System |
|||
|
Targeting |
Coaxial Vision Positioning |
|||
|
Laser indicator light |
Red |
|||
|
Minimum spot diameter |
0.5 mm |
|||
|
Camera resolution |
300000/0.005 mm |
|||
|
Software function |
Visual positioning and inspection, batch modification, array copy, automatic rounding, Height detection, CAD import. |
|||
|
Laser
|
MD60
|
|||
|
vision system
|
MDV01
/ |
|||
|
Welded joint |
MDH36 |
|||
|
Touch screen |
MD4402 |
|||
|
IPC |
I5 |
|||
|
Wire feeding system |
MDS01 |
|||
|
Temperature feedback |
MDT01 |
|||
|
Ranging module |
MDJ01 |
|||
|
Software control system |
MD03 |
|||
|
Power |
110V-250V,50/60Hz, 1.5 Kw |
|||
